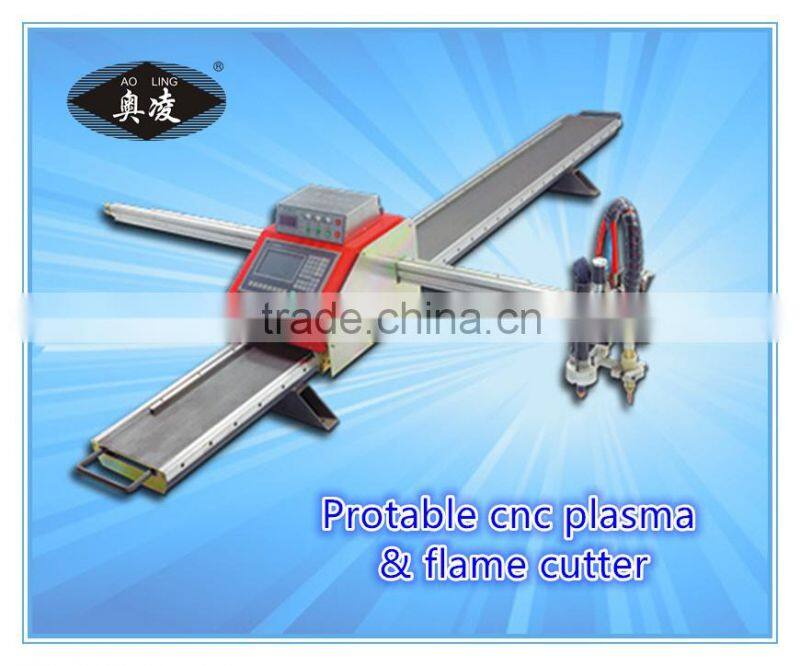

Portable metal cutting machine with Germany plasma power
- 500 Set / Sets per Month
- Guangzhou
- Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
- Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
- 60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
- Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
- 1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
- Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Aoling |
Model Number: | AL-B1525 | Voltage: | 380V | Rated Power: | 180W+plasm power source |
Dimension(L*W*H): | 1500*2500mm | Weight: | 200KG | Certification: | ISO9001 |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Portable metal cutting machine with Germany plasma power
cnc flame metal cutting machine Brief introduction
This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting,2 kinds of cutting modes are provided:plasma cutting and flame cutting,working size can be customized upon requirements,this portable cnc plasma and flame cutting machine is characterized of easy operation,compact structure and low cost.It is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
cnc flame metal cutting machine Features
- 1.Good Working stability, high frequency interfere effectively plasma, lightweight portable.
- 2.Support two cutting ways of flame and plasma.
- 3.Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easil.
- 4.Cutting has high quality, high effect level, high precision.
- 5.Programmable cutting arbitrary shape parts of line and arc.
- 6.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs. And also can program and operate directly on the machine.
- 7.English and Chinese interface can free to convert.
- 8.Pre-sale will train and after-sale will track service. portable nc flame/plasma cutting machine
cnc flame metal cutting machine Application
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, thus is widely applied in industries such as machinery, automobile, shipbuilding. portable nc flame/plasma cutting machine
Technical Data
Voltage | 380v |
Frequency | 50HZ / 60HZ |
Rated Power Supply | 180W |
LCD Display Dimension | 7.0 Inches |
Effective Cutting Width(X axis) | 1250mm |
Effective Cutting Length (Y axis) | 2000mm, 2500mm,3000mm,6000mm |
Cutting Speed | 300mm/s |
Plasma Cutting Thickness | 2--40mm ( Depends on plasma power source capacity) |
Flame Cutting Thickness | 6--150mm |
Cross Beam Length | 1500mm |
Longitudinal Rail Length | 2500mm,3000mm,3500mm,6500mm |
Gas Pressure | 0.6- 0.8Mpa |
Oxygen Pressure | 0.6-0.8 Mpa |
Cutting Gas | Acetylene/Propane/oxygen |

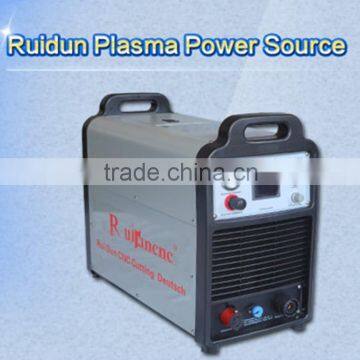

Plasma Power Source | Ruiduncnc 45A/85A/105A |
Cutting Mode | flame and plasma |
Ignition device | Auto ignition device |
Cutting precision | ±0.5mm |
Control accuracy | ±0.01mm |
Working Temperature | -10°C-60°C |
Youtube video link : /watch?v=-5XrBJ-UC2g
