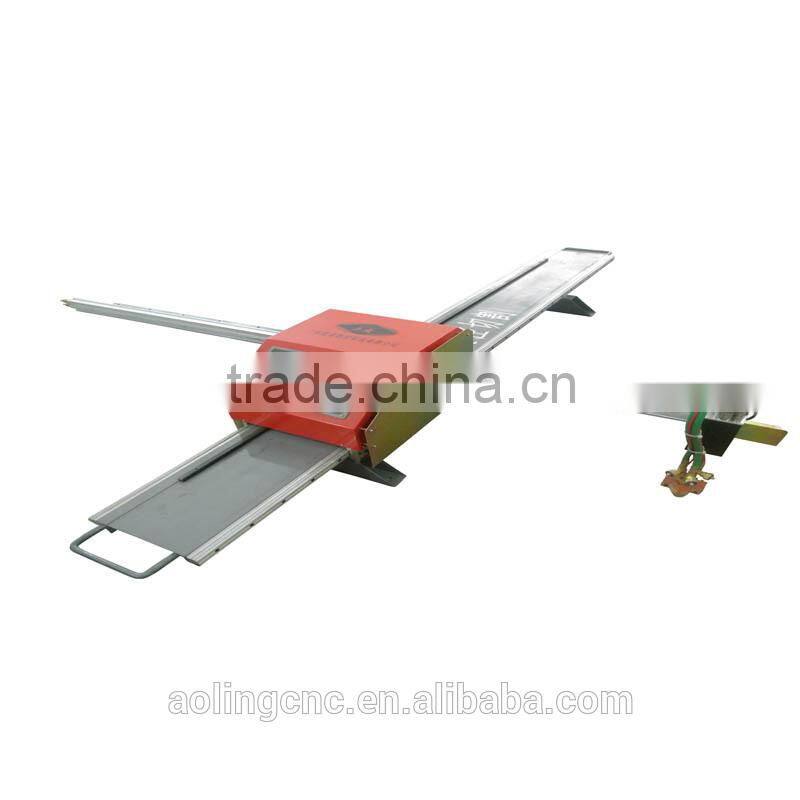

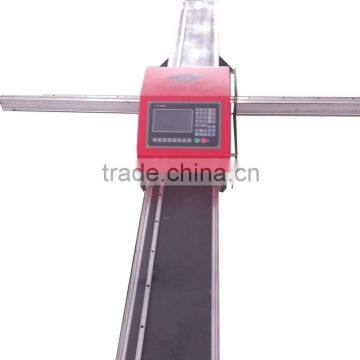

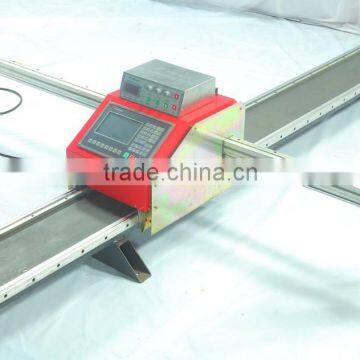

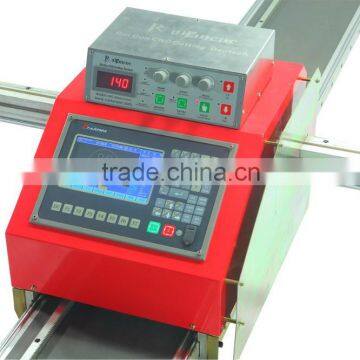

Metal Steel Mini Light Portable CNC Flame/Plasma Cutting Machine
Portable CNC Flame/Plasma Cutting Machine Brief introduction
This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting,2 kinds of cutting modes are provided:plasma cutting and flame cutting,working size can be customized upon requirements,this portable cnc plasma and flame cutting machine is characterized of easy operation,compact structure and low cost.It is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
Portable CNC Flame/Plasma Cutting Machine Features
- 1.Good Working stability, high frequency interfere effectively plasma, lightweight portable.
- 2.Support two cutting ways of flame and plasma.
- 3.Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easil.
- 4.Cutting has high quality, high effect level, high precision.
- 5.Programmable cutting arbitrary shape parts of line and arc.
- 6.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs. And also can program and operate directly on the machine.
- 7.English and Chinese interface can free to convert.
- 8.Pre-sale will train and after-sale will track service.
Portable CNC Flame/Plasma Cutting Machine Application
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, thus is widely applied in industries such as machinery, automobile, shipbuilding.
Portable CNC Flame/Plasma Cutting Machine Technical Data
Voltage |
380v |
Frequency |
50HZ / 60HZ |
Rated Power Supply |
180W |
LCD Display Dimension |
7.0 Inches |
Effective Cutting Width(X axis) |
1250mm |
Effective Cutting Length (Y axis) |
2000mm, 2500mm,3000mm |
Cutting Speed |
300mm/s |
Plasma Cutting Thickness |
2--40mm ( Depends on plasma power source capacity) |
Flame Cutting Thickness |
6--150mm |
Cross Beam Length |
1500mm |
Longitudinal Rail Length |
2500mm,3000mm,3500mm |
Gas Pressure |
0.6- 0.8Mpa |
Oxygen Pressure |
0.6-0.8 Mpa |
Cutting Gas |
Acetylene/Propane/oxygen |
Plasma Power Source |
Ruiduncnc 45A/85A/105A |
Cutting Mode |
flame and plasma |
Ignition device |
Auto ignition device |
Cutting precision |
±0.5mm |
Control accuracy |
±0.01mm |
Working Temperature |
-10°C-60°C |
Video link : /watch?v=-5XrBJ-UC2g
24 Hours working for you
Guangzhou Aoling CNC Cutting Machine
Thank you for so much attention, your enquiry is appreciated!
Your information required:
1.The size of your plate
2.The thickness of your plate
3.The material of your plate
Our terms:
1.price terms: FOB Guangzhou Or CIF your port
2.Payment terms: 30% TT deposit,the balance 70% before shippment
3.Delivery time:10-20days after getting the deposit
