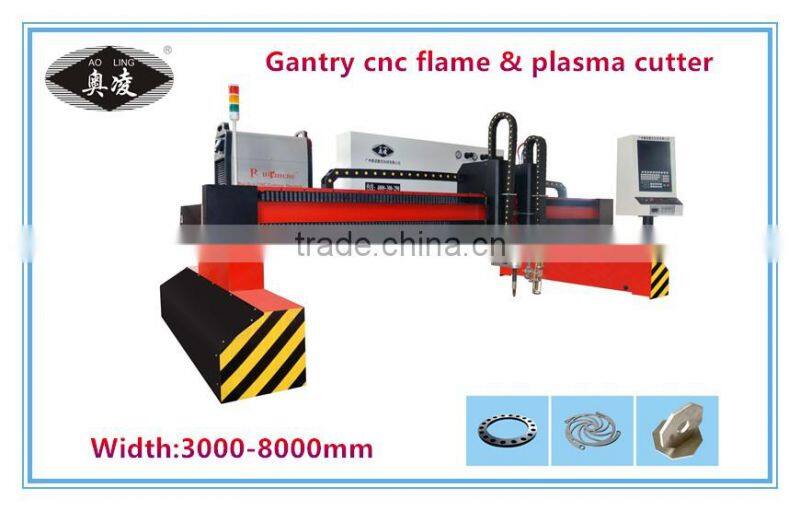

New Condition cnc plasma cutting machine / cnc gantry plasma cutter
Brief introduction
The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics,thus is widely used in metal cutting fields.
Features
- 1. Steel hollow beam design ensures good heat dissipation without deformation.
- 2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
- 3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
- 4. World's top branded components and circuits ensure long service life.
- 5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc. Hot sale best CNC gantry type plasma cutting machine for aluminium, carbon steel, stainless steel
Technical parameters
Cutting Area |
2800*6000mm or customized |
Input Power |
220 ± 10%V AC 50Hz /60 Hz |
Cutting Modes |
Plasma Cutting / Flame Cutting |
Transmission Style |
Rack & Gear |
Drive Style |
Servo Motors Double Sides Drive |
Torch Lift Distance |
200 MM |
Torch & Number |
One Plasma Torch / One Flame Torch |
Plasma Cutting Thickness |
Depend On Plasma source |
FlameCutting Thickness |
5-200 mm |
Torch height control |
Arc Voltage Torch Height Control /Capacitance Torch Height Control |
Cutting Speed |
For Servo Motors: 0-10000 mm / min; For Step Motors: 0-4000 mm / min |
Positioning Accuracy |
≤±0.2mm /m |
Repeatability |
≤±0.3mm /m |

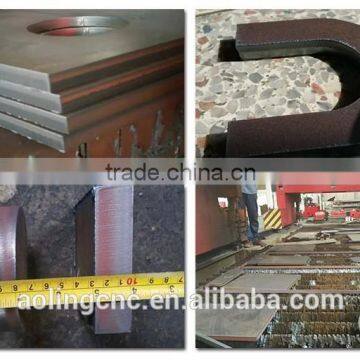

Cutting sample
Packages
Canton Fair
Foreign customers
Our company
Our Workplace
After-sales service
- 1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need. The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault.
- 2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
- 3. We will offer our service through email and phones if the buyer needs any help on technical problems.
- 4. My company English software can do all kinds of pattern recognition, software upgrading and updating free.
Why choose us?
- 1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
- 2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy.
- 3. One year warranty,free maintenance throughout service time.PHot sale best CNC gantry type plasma cutting machine for aluminium, carbon steel, stainless steel
-

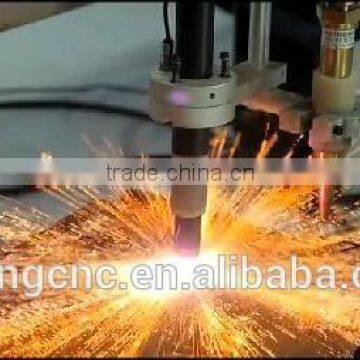

CUTTING TEST VEDIO:
