Gantry type flame and plasma cnc control cutting machine/gantry cnc cutter
- 200 Set / Sets per Month
- Guangzhou
- Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
- Best price cnc table plasma cutting machine with water table
- High-power cnc plasma cutting machine 1530
- REBOUND CNC table plasma cutting machine for metal 1.5x3m
- REBOUND CNC new automatic plasma cutting machine with good price
- table cnc best price modern plasma cutting machine for stainless
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Aoling |
Model Number: | AL-L40160 | Voltage: | 380V | Rated Power: | 7.5kw |
Dimension(L*W*H): | 4000*16000mm | Weight: | 2000KG | Certification: | ISO9001 |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

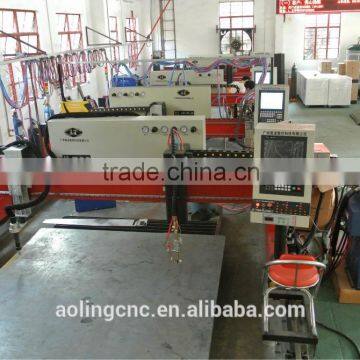

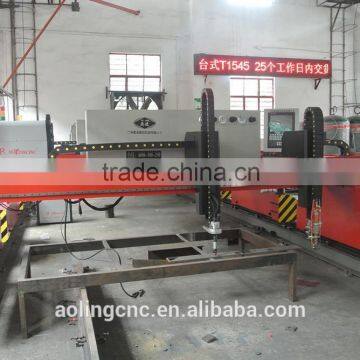

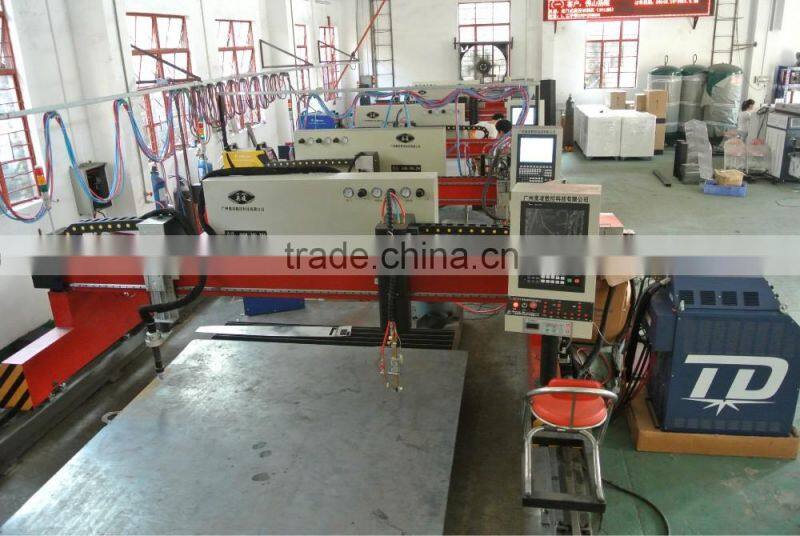

Gantry type flame and plasma cnc control cutting machine/gantry cnc cutter
Brief introduction of CNC plasma/gas cutting machine
The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics,thus is widely used in metal cutting fields.
What's the features of CNC plasma/gas cutting machine ?
- 1.Longitudinal rails using heavy rail, surface treatment by grinding, high mechanical precision and wear resistance. Drive rack, gears customed from professional manufacturers , surface carburizing and quenching with high precision.
- 2.Beam: Using box welded structure, heat treatment to eliminate stress, with good rigidity, no deformation, high precision, light weight, small inertia characteristics.
- 3.Longitudinal drive frame : Both ends fitted with horizontal guide wheels, can adjust the degree of compaction from drive eccentric on the bottom to rail; equipped with a dust collector, always wiping clutter accumulated in the track surface.
- 4.Vertical and horizontal drive : drive by the precision rack and pinion, Horizontal rails using precision cold-drawn guiding plate, vertical guide is made of precision machined Rails (heavy rail). Speed reducer is imported precision gear reducer, and eliminates backlash, in order to ensure accuracy and smoothness;
Application of CNC plasma/gas cutting machine

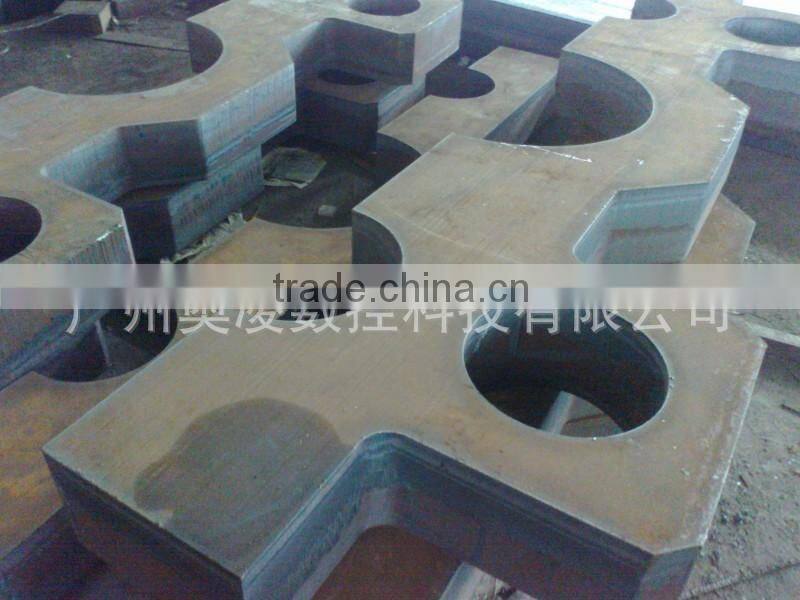

This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Technical parameters for CNC plasma/gas cutting machine
Cutting Area | 2800*6000mm or customized |
Input Power | 220 ± 10%V AC 50Hz /60 Hz |
Cutting Modes | Plasma Cutting / Flame Cutting |
Transmission Style | Rack & Gear |
Drive Style | Servo Motors Double Sides Drive |
Torch Lift Distance | 200 MM |
Torch & Number | One Plasma Torch / One Flame Torch |
Plasma Cutting Thickness | Depend On Plasma source |
FlameCutting Thickness | 5-200 mm |
Torch height control | Arc Voltage Torch Height Control /Capacitance Torch Height Control |
Cutting Speed | For Servo Motors: 0-10000 mm / min; For Step Motors: 0-4000 mm / min |
Positioning Accuracy | ≤±0.2mm /m |
Repeatability | ≤±0.3mm /m |
Video link : /watch?v=jptcsKO0IcI
