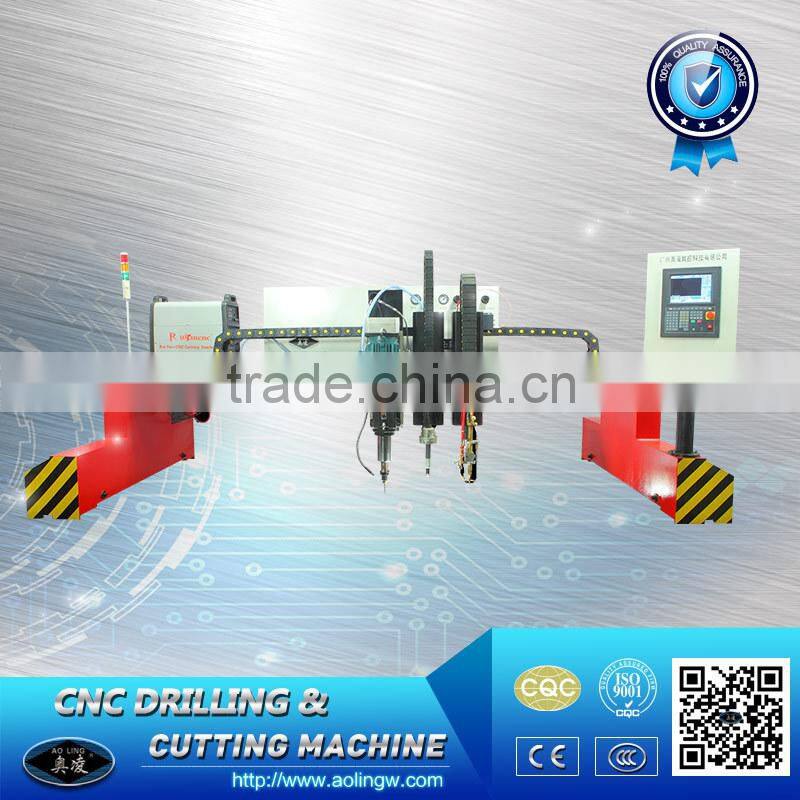

Gantry Metal CNC Drilling & Cutting Machine With Plasma And Flame Cutting Mode
Metal CNC Drilling & Cutting Machine Brief introduction
Gantry type drilling and cutting machine is a newly developed product by Aoling. It combines the advantage of drilling and cutting together. Due to the CNC plasma and flame cutting machine does not perform well in cutting holes in small dimension, especially in situation the diameter of the hole is smaller than plate thickness. In such case, we introduce a CNC drilling unit to finish the holes instead of the plasma or flame cutting. Plasma marking and zinc powder marking are available on the machine as well to mark the cutting path, drilling position and welding path before practical application. CNC drilling and cutting machine is very practical, economic and efficient in metal sheet processing, especially for the required parts with small holes.
Metal CNC Drilling & Cutting Machine Features
- 1.Drilling and cutting the work piece automatically after programming, dispense further positioning the holes on work piece, high precision on drilling finish.
- 2.Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface finish quality.
- 3.Integrated auto-ignition with automatic height controller, keep the height between the torch and work piece, achieve the best cutting quality.
- 4.Able to process multi-torch mirror image cutting or synchronize cutting, improve cutting efficiency.
- 5.Low use cost, dispense with special maintenance, friendly operator interface, easy to learn.
- 6.Utility CNC system, reliable and safe, automatic programming, optimization nestling and piercing patch, save the steel effectively.
Metal CNC Drilling & Cutting Machine Technical parameters
Technical Specification | |
Model |
AL-L4080 |
Machine dimension (mm) |
4000*8000mm(can be Customized) |
Effective processing area (mm) |
2800*6000mm |
Suggested cutting thickness (mm) |
Stainless steel:1-50mm and Carbon steel:6-200mm |
Drilling capacity (mm) |
100mm in depth and 3-25mm in diameter |
Drilling power |
8Kw (25hp) 1Kw=1.36PS=1.34HP |
Drilling feed |
10m/min (400ipm) |
Drilling torque |
200 N.M. (150 ft-lb) |
Borehole pressure |
11000 N (2500 lbf) |
Cutting Speed (mm/min) |
50-9000 |
Running speed (mm/min) |
12000 |
Basic components | |
Cutting Mode |
Plasma/flame |
Drive mode |
Servo motor, Dual-side |
Guide track |
Straight ball-guide |
Cutting Torch Number |
Customer specified |
Driving Motor |
France Schneider |
NC Controller |
Germany Ruiduncnc 5000 |
Plasma Power |
Ruiduncnc /Hypertherm |
Programming software |
FASTCAM |
Gearbox |
Neugart from Germany |
Other Data | |
Working temperature |
- 10°C -45°C |
Humidity |
<90%, no condensation |
Surroundings |
Ventilation, vibrationless |
Power voltage |
3×380V±10% 50Hz/ according to user's local condition |
Operation language |
Multilingual and English available |
Youtube Video Link : /watch?v=jptcsKO0IcI
24 Hours working for you
Guangzhou Aoling CNC Cutting Machine
Thank you for so much attention, your enquiry is appreciated!
Your information required:
1.The size of your plate
2.The thickness of your plate
3.The material of your plate
Our terms:
1.price terms: FOB Guangzhou Or CIF your port
2.Payment terms: 30% TT deposit,the balance 70% before shippment
3.Delivery time:10-20days after getting the deposit
