Gantry Multi-head Flame Cutting Machine AL-L4080 Straight Cutting Machine
- 200 Set / Sets per Month
- Guangzhou
- 1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
- 4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
- Automatic cnc plasma cutting machine gate cnc router 120a/200a
- Fully automatic 20mm plasma cutting machine custom size high quality
- 200mm pipe table axe for plasma metal cutting machine spare parts in weifang
- China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Aoling |
Model Number: | AL-L4080 | Voltage: | 380V | Rated Power: | 7.5kw |
Dimension(L*W*H): | 4000*8000mm | Weight: | 2000KG | Certification: | ISO9001 |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

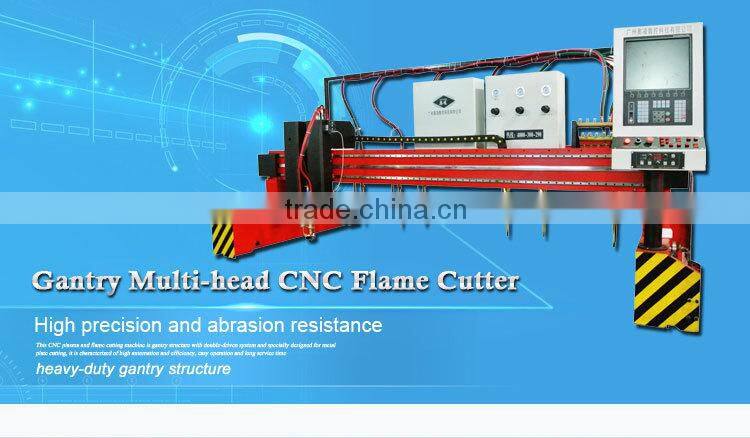

Gantry Multi-head Flame Cutting Machine AL-L4080 Straight Cutting Machine
Flame Cutting Machine Introduction
CNC multi-head strip cutting machine is one kind of high-efficiency and high-precision multifunctional cutting machines. Cutting freewill plane geometrical graphics including vertical and horizontal slats. Frame-type design for good rigidity and intensity.
Flame Cutting Machine Application

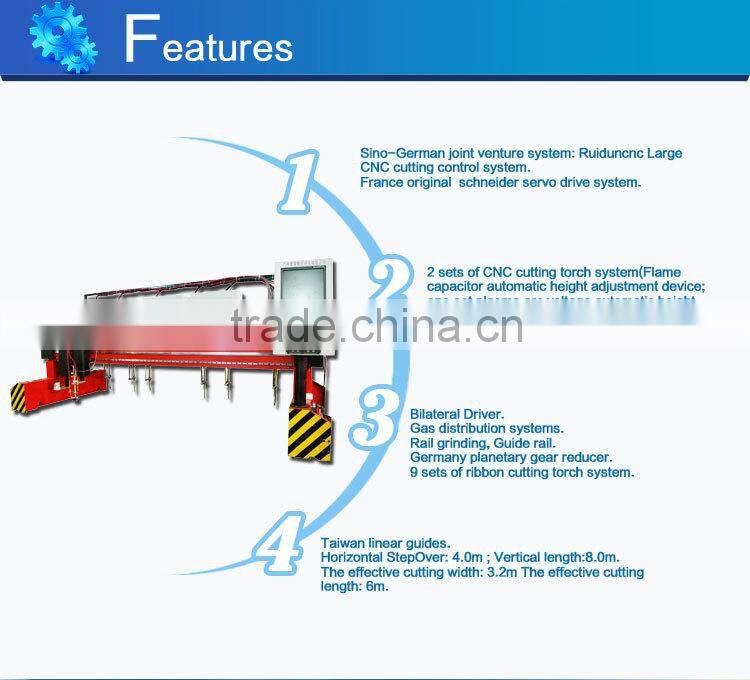

The main characteristics of flame cutitng machine is that this model uses bilateral drive mode so that the machine can operate smoothly, have high locating accuracy and simple & good appearance. Moreover, the modularized design makes machine components have strong exchangeability and equipment function be expanded more simply & conveniently. The user can configure plasma cutting torches in different sizes according to the process requirements. Now it is widely used in industries such as machine tool manufacturing, Petro-chemical equipment, light-industrial machinery, shipbuilding, pressure vessel, mining machinery, electric power, bridge construction, aerospace, steel structure etc..
Flame Cutting Machine Technical parameters
Transverse span | 3000——8000mm |
Effective cutting range | 2200——7300mm |
The length of the rail | 12000——14000mm |
Effective cutting length | 10000——12000mm |
Cutting Speed | 0——6000mm/min |

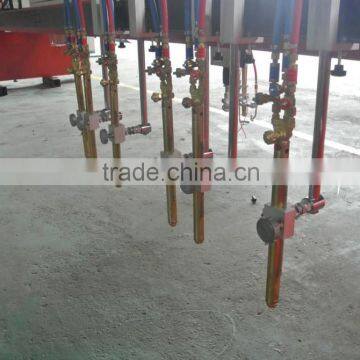

CNC flame cutting torch | 2-4 sets |
Automatic ignition controller | 2-4sets |
Automatic height adjusting device | 2-4sets |
Effective cutting thickness | 6-200mm |
The source of cutting gas | Oxygen-propane |
Precision | ±0.5mm |
Cutting surface smooth finish | Ral2.5 |
Vertical and horizontal drive motor | Using Schneider digital servo motor drive |
Vertical drive mode | Double side drive |
Oxygen Pressure | ≤ 1.2Mpa |
Acetylene pressure | ≤ 0.1Mpa |
Voltage | AC 220V±10V |
Frequency | 50/60Hz |

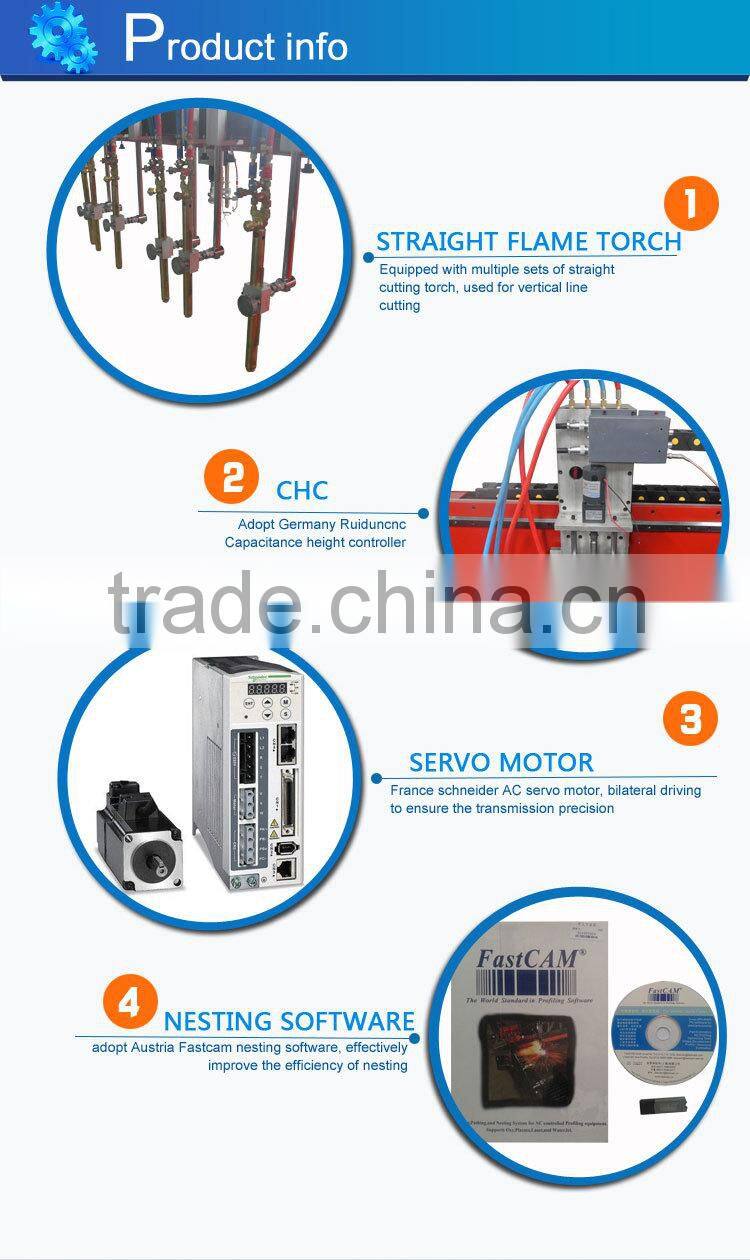

Main Parts List
Item | Specification | Qty |
Main frame | Aoling | 1 set |
Control System | Ruiduncnc 5000 | 1 set |
Driving System | Both-side servo motor | 1 set |
Planet reducer | Germany | 1 set |
Arc-volt height controller | Aoling | 1 set |
Guide rail | Taiwan guide rail | 1 set |
Plasma wear part | Original parts | 5 sets |
Nesting software | STAR CAM | 1 set |
Longitudinal guide rail | 24KG heavy duty guide rail | some |
Horizontal guide rail | Made in Taiwan | some |
Servo motor | France Schneider | 3 sets |
Arc-volt height controller | Ruidun(made in Germany) | 1 set |
Automatic ignition device | Made in China | 1 set |
Flame torch | Aoling | 1 set |
Capacitance height controller | Ruidun(made in Germany) | 1 set |
Software and nesting
Converting CAD drawings or computer-drawn graphics into cutting machine parts of g-code, store the g-code file to a USB memory stick and entered in a cutting machine, g-codes are automatically converted into cutting programs. This product is equipped with a USB interface for easy program transfer. Set the kerf compensation value in the nesting software.
