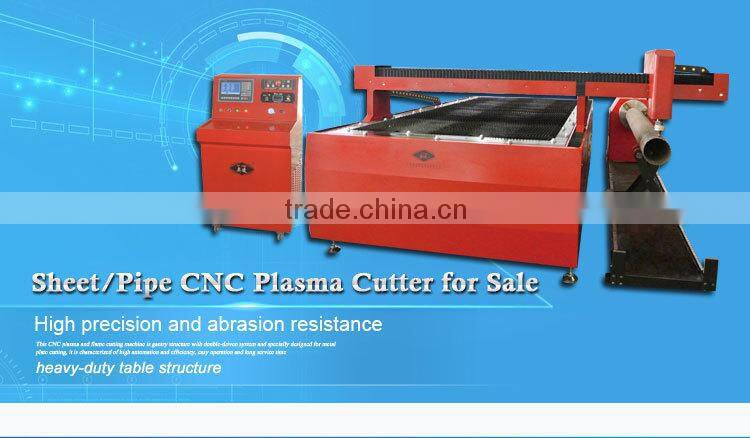

CNC Tube/Sheet dual-use Cutting Machine

Model no.

AL-BG2230

Sheet cutting dimension

3000X2200

Tube cutting diameter

Φ30~Φ800 mm(customized)

Tube moving speed

2000mm/min

Cutting speed

60-2000mm/min

Plasma cutting thickness

0-25mm(plasma power customized)

Air pressure(plasma)

0.8 Mpa

Cutting torch max lifting stroke

0-400 mm(Customized)

Tube max weight

≤3000 kg(Customized)

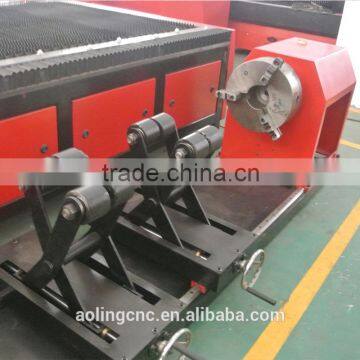

Tube transmission mode

Chucking structure

Trestle quantity

4

Control axis quantity

3

Cutting accuracy

±0.5mm

Cutting mode

plasma

Height control mode

arc pressure

Power( plasma excluded)

≤0.5KW

Plasma input power

3 PHASE AC380V

Cutting pattern

any planar graph

CNC Programming

AUTOCAD

File transfer

U-disk

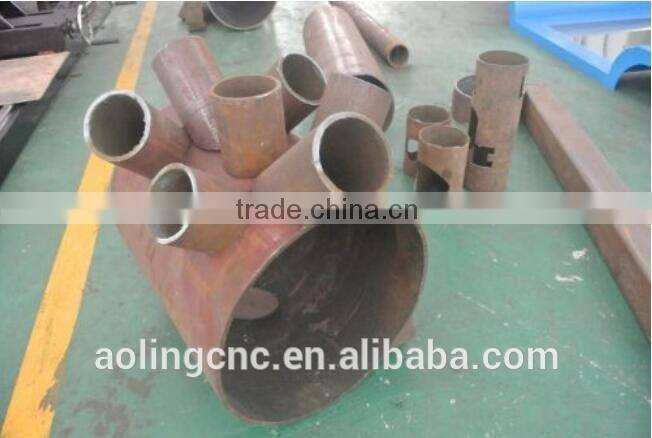

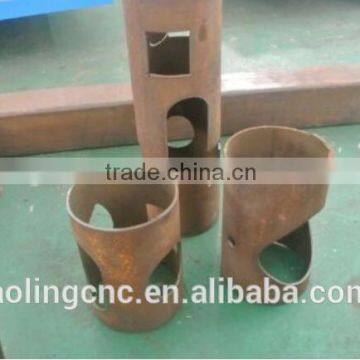

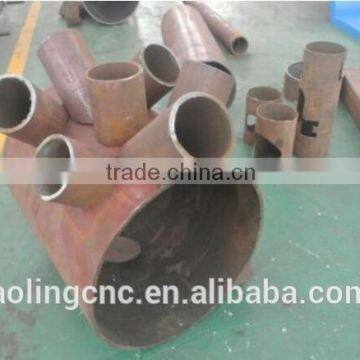

Cutting machine customization for Any special dimension and diameter of tube cutting

Cutting index

1

Plasma cutting thickness

Depend on plasma power

2

Plasma perforation thickness

Depend on plasma power

Machine performance

3

Max running speed

10000mm/min

4

Set the velocity error

≤±3%

5

Linear positioning accuracy

±0.2mm/m

6

Linear repeat accuracy

±0.4mm/m

7

Automatic lifting precision

±0.5 mm

Rail installation accuracy

8

Main rail straightness

±0.2mm/10m

9

Level between two Rails

±0.5mm/10m

10

Parallelism between two Rails

<±0.5mm/

Comprehensive precision of machine

11

Error of side length (Four side)

0.5mm

12

Diagonal bias

0.5mm

13

Back to origin of the deviation

0.2mm

14

Diagonal straightness accuracy

0.3mm

15

Intersection deviation

0.5mm

16

Clockwise or counterclockwise line deviation

0.2mm

17

perpendicularity tolerance and angularity tolerance (u)

u(mm)=1.5+0.045a

18

The surface roughness of tolerance (Rz)

Rz(um)=50+0.5a
