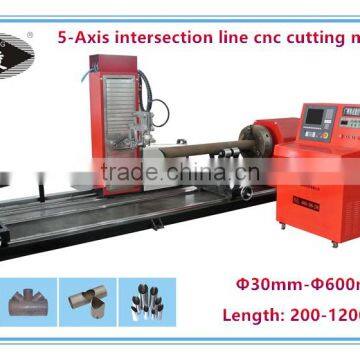

Provide High Quality Plasma Automatic Steel Tube Cutting Machine
US$ 12,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Aoling
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cnc Pipe Cutting Machine / Cnc Pipe Bevel and Profile Cutter Machine for SaleUS$ 12,000 - 30,000MOQ: 1 Set -
AL-BG630 Modern New Products Cnc Pipe Intersecting Line Cutter for Hot SaleUS$ 12,000 - 30,000MOQ: 1 Set
-
After Sales Service Provided Automatic Pipe Cutting Machine / Pipe Beveling MachineUS$ 12,000 - 30,000MOQ: 1 Set
-
Plasma Metal Pipe Cutting Machine / Pipe Cutter and BevelerUS$ 12,000 - 30,000MOQ: 1 Set
-
Cheap 5 Axis Cnc Machine/ Cnc Plasma Pipe Profile Cutting MachineUS$ 12,000 - 30,000MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
Aoling
Model Number
AL-BG630
Voltage
380V
Rated Power
180W
Dimension(L*W*H)
1200*6000*1700
Weight
1000KG
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

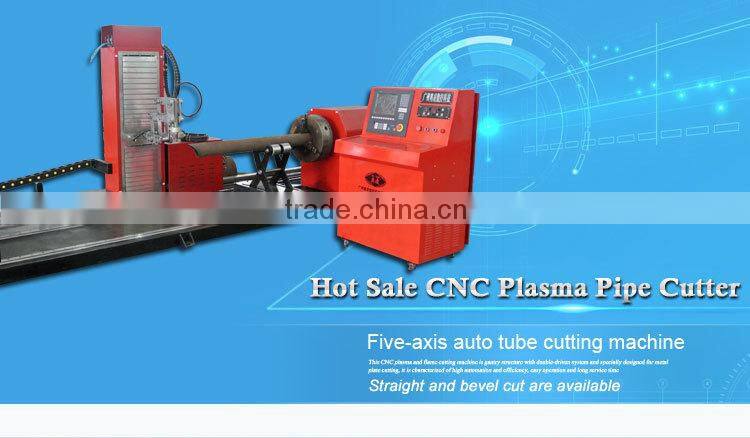

Provide high quality plasma automatic steel tube cutting machine
Technical parameters
Type |
3/4/5 |
Input Voltage |
380V |
Frequency |
50/60Hz |
Input Power |
3000W or more |
Display |
Color LTD 10.4 |
Cutting Speed |
0-3000mm/min |
Movement Speed |
0-6000mm/min |
Rotational Speed |
0-3000mm/min |
Cutting Mode |
Flame/Plasma |
Automatic Torch Height Control |
Arc voltage height controller |
Cutting Pipe Diameter range |
Φ50-800mm(can be customized) |
Effective Pipe Length |
≤15000mm |
Bevel Cutting Angle |
30°/45°/60° |
Pipe Thickness |
Perpendicular cutting : 3-80mm |
Bevel cutting |
4-40mm |
Request the pipe Ellipse |
≤1% |

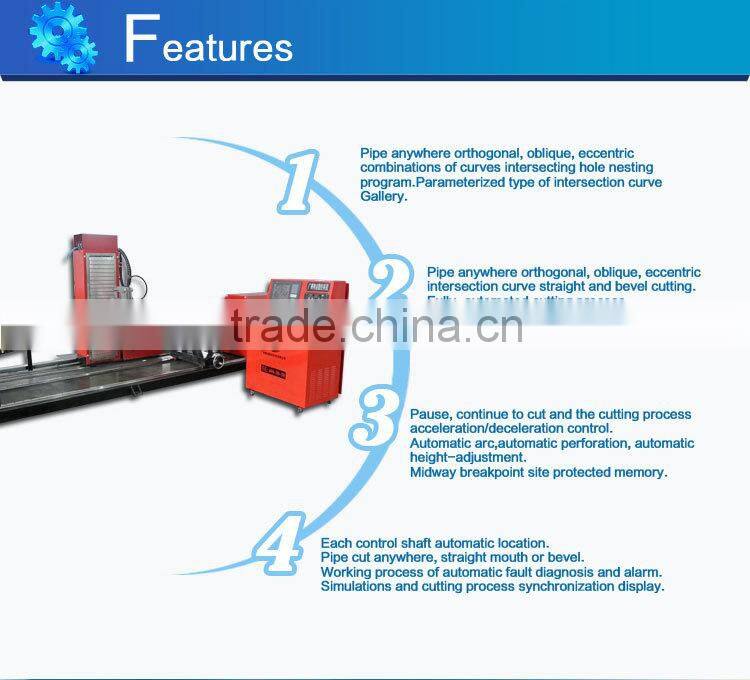

Cutting Technical Specifications
- 1. Cutting steel, pipe or tube
- 2. Cut forms: intersecting line of the expanded variety of graphics, With Groove
- 3. Control axis: 246 shafts, bevel cutting standard 5-axis
- 4. Cutting diameter: according to customer requirements
- 5. Cutting mode: plasma or flame
- 6. The maximum length of pipe: less than 12m

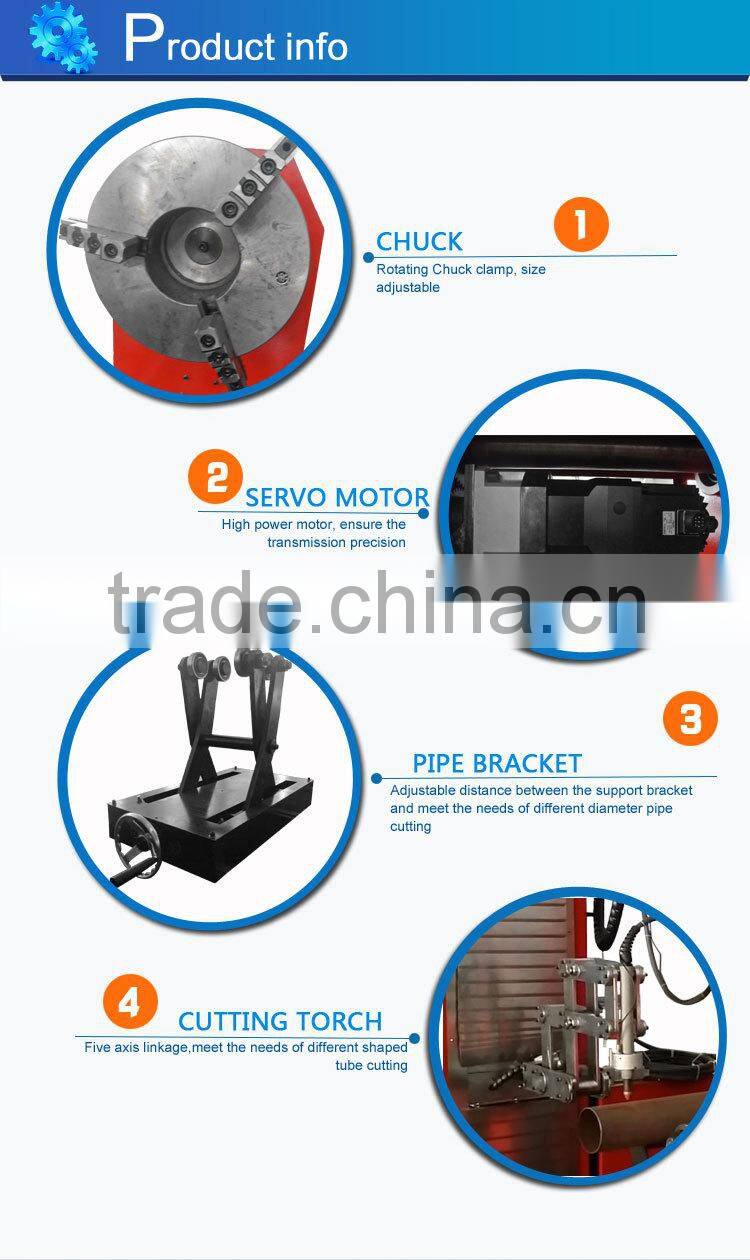

- 7. Pipe clamp method: chuck
- 8. Power Drive: precision AC servo and special planetary gear
- 9. Control system: dedicated for intersecting line cutting system can control 5 axes (quantitative)
- 10. Set intersecting line cutting vision library. NProvide high quality plasma automatic steel tube cutting machine

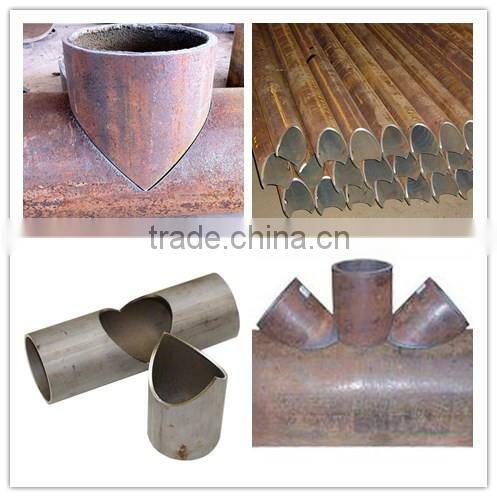

Cutting Sample
