Home > Products > CNC Laser cutting machine > Guangzhou machine manufacturers wholesale metal fiber laser cutter for option
Guangzhou machine manufacturers wholesale metal fiber laser cutter for option
- 50 Set / Sets per Month
- Guangzhou
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | 0-6mm | Cutting Area: | 1500*3000mm | Cutting Speed: | 25m/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Cypcut |
Graphic Format Supported: | DWG | Place of Origin: | Guangdong, China | Brand Name: | Aoling |
Model Number: | AL-3015B | Certification: | CCC, CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Guangzhou machine manufacturers wholesale metal fiber laser cutter for option

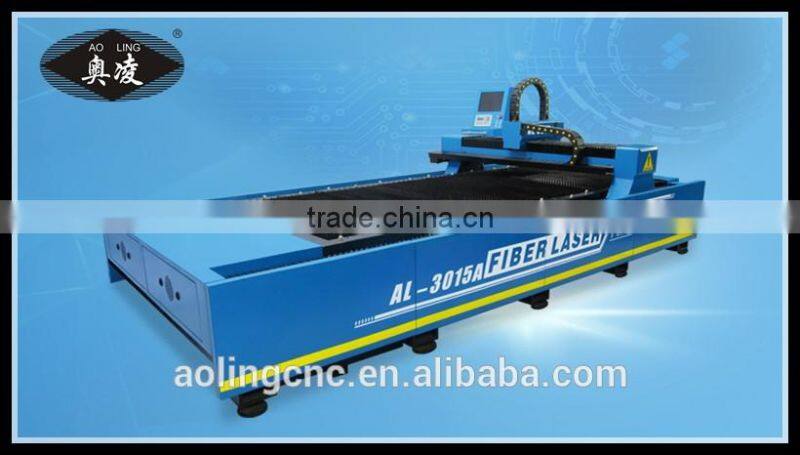

500W Fiber Laser Cutting Machine Introduction
The machine mechanical servo cutting head direct contacts with the sheet material, so that the laser focal length remains the same, and cutting speed and quality are the same in the whole working area. The machine uses dual-rail positioning, ball screws transmission, which bring fast speed, high accuracy, stable movement, good dynamic performance and long lifetime. In machine table lengthwise and crosswise movement directions, there are over-travel limit switches and polyurethane anti-collision strips in case of limit switch failure, which greatly ensure the machine operating safety. Automatic programming system directly generates graphic files to machining program, computer simulates processing path, and software automatically nests materials, which improve processing efficiency and material utilization.
Guangzhou machine manufacturers wholesale metal fiber laser cutter for option
High quality Fiber Laser Cutting Machine for thick mild steel and carbon steel
500W Fiber Laser Cutting Machine Applicable Materials

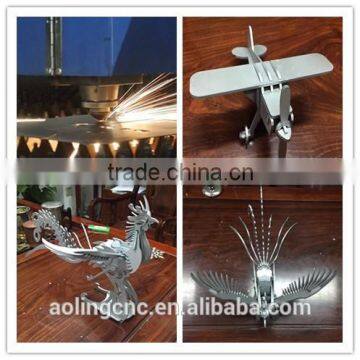

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes
500W Fiber Laser Cutting Machine Applicable Industry
Industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
500W Fiber Laser Cutting Machine Feature
- 1. High-performance German IGP 500 watt laser device from German has photovoltaic conversion rate higher than 24%.
- 2. Auto focusing laser cutting head (cutting head with metal sensor) has high sensitivity and good stability.
- 3. Power supply controlled by control cabinet, touch screen operation system, easy to operate.
- 4. Japanese Panasonic OR Germany Schneider servo motors and drivers to improve the cutting speed and stability.
- 5.The combine of high precision ball screws drive system and advanced feed system.
- 6. High power and big refrigerating capacity water chiller.
- 7 German IGP original Fiber laser system
- 8.High precision belt module structure, precision can be as high as 0.01mm
- 9. High precision laser cutting control system
- 10. Independent control handle
- 11. Low shipping cost, low maintenance cost, easy to operate. fiber transmission, no need to adjust the laser path.
- 12.Good quality laser beam, fast cutting speed, stable performance
Fiber Laser Cutting Machine Advantages
1.High precision in cutting. Excellent in stability.
Adopting the high precision ball screw in transmission system. The optimized CNC control system, which can meet the processing demand in high precision accessory. The motation system is excellent , that suit for the long hours constantly working.2.High quality in cutting edge
The cutting head system with high sensitivity and stability. The cutting head moving with the variation of the plate. The cut-off point position will remain unchanged. The kerf is flat and smooth enough no need to handle it again. Meanwhile, the machine can be use to cut both of the flat materials and curving materials .3.Cutting large format and suitable for cutting more material.
The machine can cut metal sheet within the thickness of 6mm and not larger than the size of 1250mm x 2500mm. The applicable materials include: ordinary carbon steel, stainless steel, titanium, etc.4.With drawer to collect the garbage, easy to change the gas valve. High performance-price ratio
5.Low cost for using
6.Higher cutting speed and efficiency
7.Low fees for the future maintain:
This laser machine is with simple structure, easy to operate with high stability. Guangzhou machine manufacturers wholesale metal fiber laser cutter for option
Technology parameters:
Model | AL-3015B |
Laser power | 500w |
laser model | Fiber |
Working size | 3000X1500mm |
X-axis | 3000mm |
Y-axis | 1500mm |
Max cutting thickness | 0.5-6mm |
geometric positioning accurancy | < ± 0.08mm/m |
orientation accurancy | < ± 0.04mm |
power | 380v/50HZ |
weight | 3500KG |
Video link : /watch?v=e_AbvoLLrtg
24 Hours wokring for you
Guangzhou Aoling CNC Cutting Machine
Thank you for so much attention, your enquiry is appreciated!
Your information required:
1.The size of your plate
2.The thickness of your plate
3.The material of your plate
Our terms:
1.price terms: FOB Guangzhou Or CIF your port
2.Payment terms: 30% TT deposit,the balance 70% before shippment
3.Delivery time:10-20days after getting the deposit
Guangzhou machine manufacturers wholesale metal fiber laser cutter for option
Hgh quality Fiber Laser Cutting Machine for thick mild steel and carbon stee
