CNC Fiber Laser Cutting Machine for Square Tubes and 3mm Stainless Steel
US$ 90,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal, Other, Metal, stainless steel, alloy
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale 1KW 2KW 3KW Fiber Laser Cutting Machinery for 6 mm Stainless SteelUS$ 90,000 - 110,000MOQ: 1 Set -
New Condition Professional Fiber Laser Cutting Machine for PipeUS$ 60,000 - 80,000MOQ: 1 Set
-
High Quality Laser AL-3015A 500W Fiber Stainless Steel Cutting MachineUS$ 55,000 - 60,000MOQ: 1 Set
-
High Quality Fiber Laser Cutting Machine for Thick Mild Steel and Carbon SteelUS$ 50,000 - 60,000MOQ: 1 Set
-
Guangzhou Machinery Manufacturer Supply Desktop Fiber Laser Cutter Oem for Sheet SteelUS$ 100,000 - 150,000MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Metal, Other, Metal, stainless steel, alloy
Cutting Thickness
0.5-6mm
Cutting Area
1500*3000mm (customized)
Cutting Speed
24-26m/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
Cypcut
Graphic Format Supported
DWG
Brand Name
Aoling
Model Number
AL-3015E
Certification
CCC, CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
CNC laser fiber cutting machine for square tubes and 3mm stainless steel
Product Introduction
AL-3015D Combined Laser cutter for sheet metal and tubes adopts the most sophisticated Germany IPG laser and double driver, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal below 6mm in high speed and high precision.
Applicable materials and industry
Suitable for stainless steel, carbon steel and some other metal materials precise cutting, applicable for aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
Machine features
- 1. High speed, high precision, high efficiency and low cost.
- 2. Easy on operation, fiber optical path, without tediously adjustment on optical path.
- 3. Compact structure, good sealing , strongly adaptable to changes in the environment.
- 4. With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%.
- 5. Convenient product operation and maintenance: fiber transmission, no need to adjust the optical path.
- 6. Very strong soft optical effects: compact volume and structure, which is easy for soft processing requirement.
- 7. The machine tool adopts gantry double driving structure, high damping machine tool bed, good rigid, which can suffer very high speed and acceleration.
- 8. This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed, high precision and high reliability of equipment.
- 9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
- 10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
Parameter
Laser Power |
200-2000W |
Laser type |
IPG |
Working Size |
3000*1500mm |
X-axis Itinerary |
3000mm |
Y-axis Itinerary |
1500mm |
Z-axis Itinerary |
120mm |
Cutting pipe wall thickness |
0.5-8mm |
Pipe diameter |
20-320mm |
Pipe processing length |
3000mm |
Positioning accuracy |
≤±0.08mm/m |
Repeat positioning accuracy |
≤±0.04mm/m |
Power |
220V/380V 50Hz |

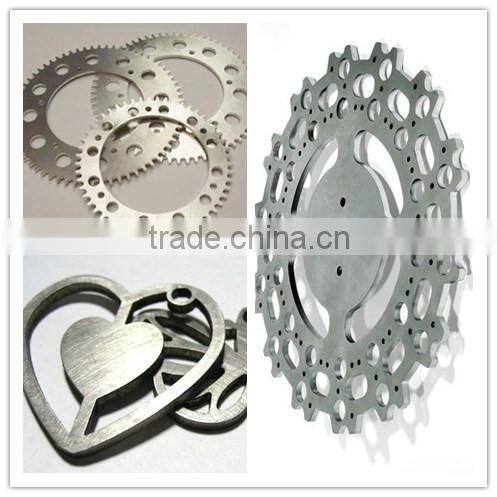

Cutting Sample
Packages
Canton Fair
Foreign customers
Our company
Our Workplace
Pre-sale Service
- 1.Sample testing: We will supply testing report with video and photos upon you request.
- 2.Customized machine: Tell us what you want, our engineers will do their best
- 3.We cordially welcome customers to visit our factory, you will be served with professional reception staff, convenience for your catering and ticket booking.
On-Purchase Service
- 1.Free training course. The buyer's operator will be trained for more than 4days in the seller's training and repairing center till he/she master basic knowledge on machine usage.
- 2.send technician to install and adjust machine (expense for visa, air ticket, accomodation and catering will be undertaken by buyer).
After-Sale Service
- 1.Warranty period for one year,maintenance service, support of various software and software upgrading service for lifelong.
- 2. Response time for customer service: arrive in places 500km away within 12hour; arrive in places 1000km away within 24hour;arrive in places over 1000km away within 36hour.
Why choose us?
- 1. Canadian Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
- 2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life expectancy.
- 3. One year warranty,free maintenance throughout service time.cnc laser cutting machine price
