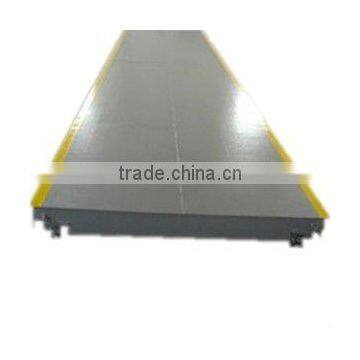

10-200T weigh bridge truck scale
- 500 Set / Sets per Month
- Qingdao port
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Huaxin | |
| Model Number | SCS | Type | Other, Truck Scale, Digital electronic | |
| Power Supply | AC220V, 50HZ | Rated Load | 200T |
Product Description
Specifications
10-200T weigh bridge truck scaleWeigh bridge width:2.2m,2.5m,3.0m,3.2m,3.5m
AC220V,50HZ
Weigh bridge Length 6-21m
Structure
Digital standard electronic 10-200T weigh bridge scale by load-bearing units, weighing and weighing sensors monitor the three basic modules; according to the different needs of the user can choose to buy other external devices to form a variety of configurations, including: computers, wide-based printers, large-screen display units, multi-purpose regulated power supply and power outlet, control the camera, card reader, computer networking, etc. (see detailed weight management software).
Scales using structural steel welding van, U type steel structure, the overall high strength, torsional performance, and high-precision weighing sensor bridge and superior performance, feature-rich interface shows a variety of weighing instruments, such as a common component that weighting system.
It features high accuracy, reliability, and a high degree of intelligent and adaptable, convenient installation maintenance and replacement of instrumentation does not require re-calibration. National economic construction can be widely used in various industries, for bulk goods vehicles weighing materials measurement and management.
AD conversion mode: Σ-Δ converter AD conversion manner: Σ-Δ converter mode
A / D conversion rate: 200 times / sec
A / D conversion sub-degree: 24bit
Input signal range:-30mV ~ 30mV
Input Sensitivity: ≥ 1μV / d
Sensor for Bridge Power: DC5V; I ≤ 150mA;
Connect the sensor number: 8, connected to the sensor 350Ω or 700Ω sensor 16
Sensor connections: 6-wire system, automatic long-term compensation from ≤ 50 meters
test sub-degree: 3000
the largest outside the sub-degree: 50,000
the largest within the resolution: 1,000,000
points value: 1/2/5/10/20/50/100 optional
Display: 7 LED digital tube, seven state indicator, power indicator light 3
display range: -325000 ~ 325000 (e = 10)
Clock: Real-time clock, automatic leap year, Leap from the impact of power
Model | Table size scales Desk | Max(t) | Indexingee(Kg) | |||
SCS-1 | 1×1.5 | 1.5×2 | 1 | 0.2 | ||
SCS-5 | 2.0×3 | 2.0×4 | 1.5×2 | 5 | 0.5 | |
SCS-10 | 3.0×7 | 2.5×6 | 3.0×6 | 10 | 1 | |
SCS-20 | 3.0×7 | 2.5×6 | 3.0×6 | 20 | 2 | |
SCS-40 | 3.0×14 | 3.0×12 | 3.0×10 | 40 | 5 | |
SCS-60 | 3.2×14 | 3.0×16 | 3.0×12 | 60 | 5 | |
SCS-80 | 3.2×18 | 3.2×18 | 3.0×16 | 80 | 5 | |
SCS-100 | 3.4×18 | 3.2×18 | 3.2×16 | 100 | 5 | |
SCS-120 | 3.4×18 | 3.2×18 | 3.4×21 | 120 | 10 | |
SCS-150 | 3.4×18 | 3.4×21 | 3.5×21 | 150 | 10 | |
SCS-200 | 3.4×18 | 3.4×21 | 3.5×21 | 200 | 20 | |
