Specifications
1.Whole steel frame structure make a stable performance2.Automatic correction
3.special reducer for Schenck says
Introduction

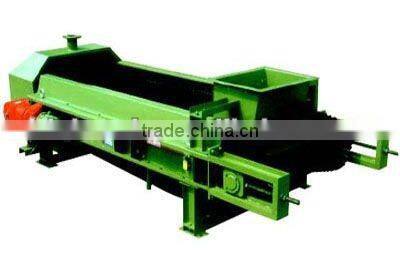

Series TDG conveyor scale is an automatic measuring and feeding machine, which is developed to solve the measuring and controlling problem of high temperature clinker in cement industry. This product is widely used for the measuring and feeding of high temperature clinker in cement industry. It can increase the cement production, reduce heat consumption, and provide accurate measurement data for scientific management of the cement plant.
TDG speed dosing machine is a new type of conveying feeding weighing and control device, and a new type of measurement scale absorbed, digested and improved based on advanced technology from both domestic and overseas. It is suitable for weighing and dosing massive, granular, solid material or powder material in the dynamic conveying process, and is widely used in cement, electric power, metallurgy, chemical, food, feed and other industries, as an integral automatic control device for dynamic continuous measurement and dosing.
Product features:
1Avoid the errors caused by Material lay particular stress on belt with a double sensors
2.Long-term and stable operation
3.The most advanced sinified weighing control instrument
4.Widely used in cement, electric power, metallurgy, etc
5.A new type of conveying, feeding, weighing and control device
Technical parameters
Chain plate width |
Feeding size |
Static measurement error |
Dynamic accumulation error |
Capacity (t/h) |
Linear speed (m/s) |
Signal of velocity measurement |
High temperature resistant range |
||
|
|||||||||
650 |
≤60 |
≤0.5% |
≤1% |
1~160 |
0.0359 |
40 pulses/r |
≤350°c |
|
|
650 |
0.0858 |
|
|||||||
650 |
0.1195 |
|
|||||||
650 |
0.1464 |
|
|||||||
800 |
0.1628 |
|
|||||||
1000 |
0.265 |
|
|||||||
1000 |
0.3929 |
|
