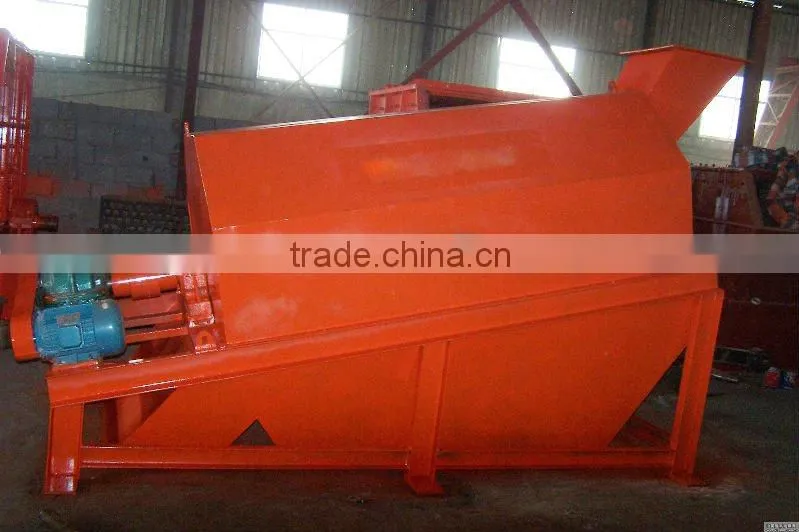

Rotary Screen
Operating Principle of drum rotary screen
Drum screen consists of motor, decelerator, rotordrive, chassis, seal cap, inlet and outlet. Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Features:
1. The screening pore can never be blocked.
2. Small size, light in weight, easy to install and layout.
3. High screening capacity and low energy consumption.
4. Durable and easy to maintain.
5. Good flexibility and operational reliability.
Technical parameters:
Model No. |
Diameter of roller(mm) |
Length of roller(mm) |
Capacity (t/h) |
Rotation speed (r/min) |
Motor power(kw) |
Discharging size(mm) |
SHB-1020 |
1000 |
2000 |
60-80 |
15 |
4 |
10-13 |
SHB-1226 |
1200 |
2600 |
80-100 |
15 |
4 |
10-13 |
SHB-1235 |
1200 |
3500 |
160-180 |
15 |
5.5 |
10-13 |
SHB-1248 |
1200 |
4800 |
250-300 |
15 |
7.5 |
10-13 |
Models can be customized according to per customer’s requirements. | ||||||
