2 Layer Sand Vibrator Screen

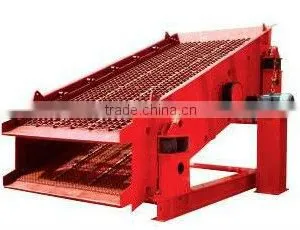

2 Layer Sand Vibrator Screen thumbnail-1

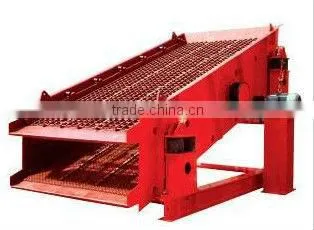

2 Layer Sand Vibrator Screen photo-1
US$ 500 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Linear
Application:
Other, coal, limestone, rubble, gravel, metal ores, non-metallic
Contact Supplier Request Quote Chat Now
Shandong Huaxin Electromechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Linear
Application Other, coal, limestone, rubble, gravel, metal ores, non-metallic
Place of Origin Shandong, China
Brand Name huaxin
Model Number YA
Certification ISO

Specifications

1.capacity:150T/h-1500T/h
2.feeding size:less than 200mm-400mm
3.layers of screening surface:1-3



Series YA circular vibrating screen


Applications:2 layer sand vibrator screen
Series YA circular vibrating screen is widely used for screening of coal, limestone, rubble, gravel, metal ores, non-metallic ores and other materials. The motion trace of the screening box is circular.

Main structure and working principle:
Series YA circular vibrating screen is made up of screening box, screening mesh, vibrator, vibration damping spring device, under frame and other components. The vibrator is installed on the sideboard of the screening box, and is driven by the motor to rotate through the coupling, which will make a centrifugal inertial force to make the vibration of the screen.
The screening mesh is the main wearing part. According to the types of the materials, uses can adopt hadfield's manganese steel woven mesh, punched screening plate or rubber screening plate. There are single screening surface or double screening surfaces for customers to choose. All the screening meshes or plates can meet the requirements of high screening efficiency, long service time and block proof.
Series YA circular vibrating screen if for seater installation. The inclination of the screening surface can be adjusted by changing the height of the spring support.

Technical parameters:















Model No.

Layers of screening surface

Screening area     (m2)

Screening surface

Feeding size (mm)

Capacity (t/h)

Vibrating frequency   (times /min)

Double amplitude(mm)

Motor power(kw)

Inclination( °)

Size of screening pore (mm)

Structure

YA-1848

1

8.6

20

6~50

woven

≤ 200

150~490

845

9.5

15

2YA-1848

2

8.6

20

6~50

woven

≤ 200

150~490

845

9.5

15

YA-H1848

1

8.6

20

30~150

woven

≤ 400

385~1000

755

11

15

2YA-H1848

2

8.6

20

30~150 6~50

punched and woven

≤ 400

385~1000

755

11

15

YA-2148

1

10

20

6~50

woven

≤ 200

175~570

748

9.5

18.5

2YA-2148

2

10

20

6~50

woven

≤ 200

175~570

748

9.5

22

YA-H2148

1

10

20

30~150

punched

≤ 400

445~1200

708

11

18.5

2YA-H2148

2

10

20

30~150 6~50

punched and woven

≤ 400

445~1200

708

11

22

YA-2160

1

12.6

20

6~50

woven

≤ 200

220~715

748

9.5

18.5

2YA-2160

2

12.6

20

6~50

woven

≤ 200

220~715

748

9.5

22

YA-H2160

1

12.6

20

30~150

punched

≤ 400

565~1400

708

11

30

2YA-H2160

2

12.6

20

30~150 6~50

punched and woven

≤ 400

565~1400

708

11

30

YA-2448

1

11.5

20

6~50

woven

≤ 200

200~650

748

9.5

18.5

YA-H2448

1

11.5

20

30~150

punched

≤ 400

515~1300

708

11

30

2YA-H2448

2

11.5

20

30~150 6~50

punched and woven

≤ 400

515~1300

708

11

30

YA-2460

1

14.4

20

6~50

woven

≤ 200

250~810

748

9.5

30

2YA-2460

2

14.4

20

6~50

woven

≤ 200

250~810

748

9.5

30

YA-H2460

1

14.4

20

30~150

punched

≤ 400

645~1500

708

11

30

2YA-H2460

2

14.4

20

30~150 6~50

punched and woven

≤ 400

645~1500

708

11

30





 Welcome to contact us for more technical parameters of different models.
