LAMINATION MACHINE FOR POLYESTER

LAMINATION MACHINE FOR POLYESTER photo-1

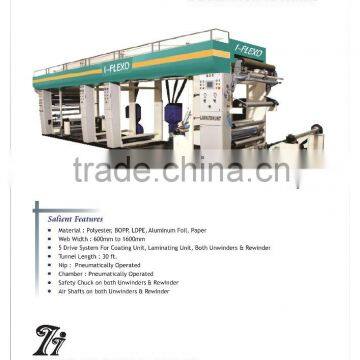

LAMINATION MACHINE FOR POLYESTER photo-2
US$ 56,000 - 100,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Gujarat, India
Brand Name:
I-FLEXO
Model Number:
I-LAM
Payment & Shipping
Payment Methods:
Port of Shipment:
MUNDRA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Gujarat, India
Brand Name I-FLEXO
Model Number I-LAM

 LAMINATION MACHINE FOR POLYESTER





TECHNICAL SPECIFICATIONS :-

LAMINATION MACHINE FOR POLYESTER :-



Machine Type



:

Lamination Machine



Maximum Web width



Power requirement

















Core Inner Dia.

Maximum Reel Dia.



Unwinder for Polyester









Coating Station















Drying Tunnel













Nipping Station







Unwinder for LD



Rewinder









Pannel







Material to handle

:



:

















:

:



:









:















:













:







:



:









:







:

48”(1200mm)



3 H.P. A.C. for Coating Unit

3 H.P. A.C. for Laminating unit

5 H.P. A.C. for Rewinder Unit

0.5 H.P. Pneumatic Break for Unwinder – 1

0.5 H.P. Pneumatic Break for Unwinder - 2

Web-Alliner 0.5 H.P. A.C. X 3 Nos.

3 H.P. Heaters for heater roll

3 H.P. Exhaust Blower for Exhaust



76 mm

800mm



1 No. C.I. Body (45mm thick)

Auto Tension Control – Magnetic Break Control by 5 Drive System

Shaft made from En-8 material with cones, collar nut



1 No. C.I. Body (45mm thick)

Gear box – ‘Shanthi Make’ with highly efficient bewel gears.

Cylinder shaft made from En-8 material

Ink tray system

Dr. blade system with oscillation system

Guide roll 4” dia.



Drying Tunnel length 24’

Completely Jacketed with glass wools

Divided in 3 zones

Doors at operator side for easy cleaning of rolls.

SRA Unit for Controlling the Web Edge.

1 No. C.I.Body (45mm thick)



1 No hard crome plated heater roll is provided with heater

Guide roll 4” dia.



Same as Unwinder – I



1 No. C.I.Body (45mm thick)

5 H.P. A.C. motor control by 5 Drive System

Rewinder shaft made from En-8 material with cones and Collar nut



Completed with temp indicator

Web-Alliner Controls etc.

5 Drive Pannel



Polyester, LDPE, BOPP etc.
