DC/AC Electromagnet Push Pull Solenoid

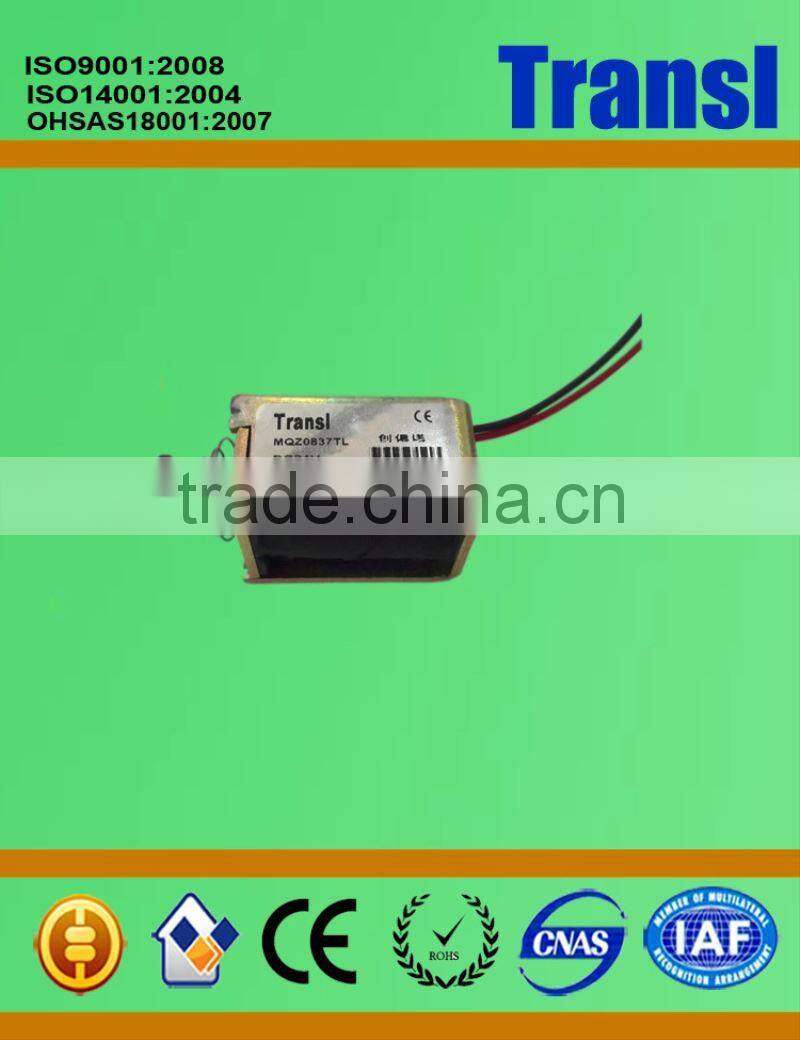

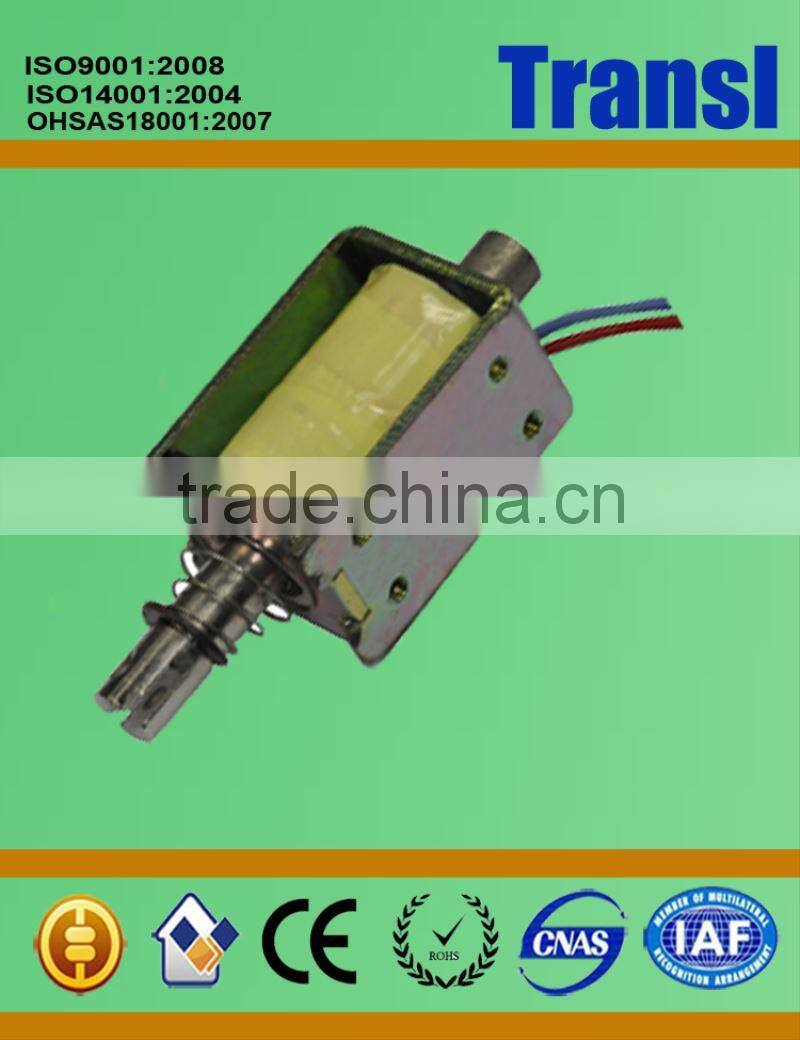

The Actual Pictures of DC/AC Electromagnet Push Pull Solenoid
The DC/AC Electromagnet Push Pull Solenoid is featured with Open Frame Structure, flexibile push force and stable spring pull force performance, The Open Frame Solenoid is availabe with 24V dc, 12V dc,6V .
The push pull solenoid is widely applied to Mechanized equipment, we can produce solenoid as per your specific request for Power, Voltage, Stroke, Force and Dimenson, also, customer's lable and free sample are available.
Welcome to contact us for OEM/ODM production service.
| NO. | Model | Voltage (V) | Power (W) | Resistance (Ω) | Duty Cycle (%) | Keeping Force (N) | Stroke (MM) | Main Body Size (L*W*D)(MM) |
| 8 | MQZ1039TL | 12 | 7.5 | 19.3 | 100 | 6 | 9.5 | 38*26*20 |
| 12 | 15 | 9.7 | 50 | 12.5 | ||||
| 12 | 30 | 4.9 | 25 | |||||
| 24 | 7.5 | 77 | 100 | 6 | ||||
| 24 | 15 | 38.5 | 50 | 12.5 | ||||
| 24 | 30 | 19.3 | 25 | |||||
| 9 | MQZ1040TL (2510) | 12 | 10 | 14.5 | 100 | 6 | 9.5 | 39.5*29*25 |
| 12 | 20 | 7.3 | 50 | 14 | ||||
| 12 | 40 | 4 | 25 | |||||
| 24 | 10 | 58 | 100 | 6 | ||||
| 24 | 20 | 29 | 50 | 14 | ||||
| 24 | 40 | 14.5 | 25 | |||||
| 10 | MQZ1250TL | 12 | 16 | 9.0 | 100 | 60 | 9.5 | 50.5*41.8*37 |
| 12 | 32 | 4.5 | 50 | 85 | ||||
| 24 | 16 | 36 | 100 | 60 | ||||
| 24 | 32 | 18 | 50 | 85 | ||||
| 24 | 64 | 9 | 25 | |||||
| 11 | MQZ1253TL | 12 | 10 | 14.5 | 100 | 27 | 10.0 | 48.5*26*25 |
| 12 | 20 | 7.2 | 50 | 15 | ||||
| 12 | 40 | 3.6 | 25 | |||||
| 24 | 10 | 58 | 100 | 27 | ||||
| 24 | 20 | 29 | 50 | 15 | ||||
| 24 | 40 | 14.5 | 25 | |||||
| 12 | MQZ1358TL | 12 | 12 | 12 | 100 | 27 | 10.0 | 57*32*26 |
| 12 | 24 | 6 | 50 | |||||
| 24 | 12 | 48 | 100 | 27 | ||||
| 24 | 24 | 20 | 50 | |||||
| 24 | 48 | 37 | 25 | |||||
| 48 | 24 | 96 | 50 | |||||
| 48 | 48 | 48 | 25 | 37 | ||||
| 13 | MQZ1564TL | 12 | 20 | 7.2 | 100 | 19 | 10.0 | 62.5*38*30 |
| 12 | 40 | 3.6 | 50 | 30 | ||||
| 24 | 20 | 29 | 100 | 19 | ||||
| 24 | 40 | 14.5 | 50 | 30 | ||||
| 24 | 80 | 7.2 | 25 | 37 | ||||
| 48 | 20 | 116 | 100 | 19 | ||||
| 48 | 40 | 58 | 50 | 30 | ||||
| 48 | 80 | 29 | 25 | 37 | ||||
| 14 | MQZ1683TL | 24 | 30 | 19.2 | 100 | 32 | 19.5 | 78*51.5*44.50 |
| 24 | 60 | 9.6 | 50 | 44 | ||||
| 24 | 120 | 4.8 | 25 | 61 | ||||
| 48 | 30 | 76.8 | 100 | 32 | ||||
| 48 | 60 | 38.4 | 50 | 44 | ||||
| 48 | 120 | 19.2 | 25 | 61 |
HuBei ChuangSiNuo Electrical Technology Corp.,(CSN) -Electromagnetic Export
CSN was founded in May 2000, covering more than 12,000 Square Meters , holding more than 30 sets of automatic CNC machines and around 200 employees, CE & Rohs & ISO approved products: Solenoid(s), solenoid valves, needle selector, coil, inductors solenoids. CSN can provide you OEM & ODM production baded on professioan and exprienced ointernatonal trade practice
There are mainy four types of products manufactured by CSN: Solenods, Solenoid Valves,inductors& Coils; Solenoid Coils.

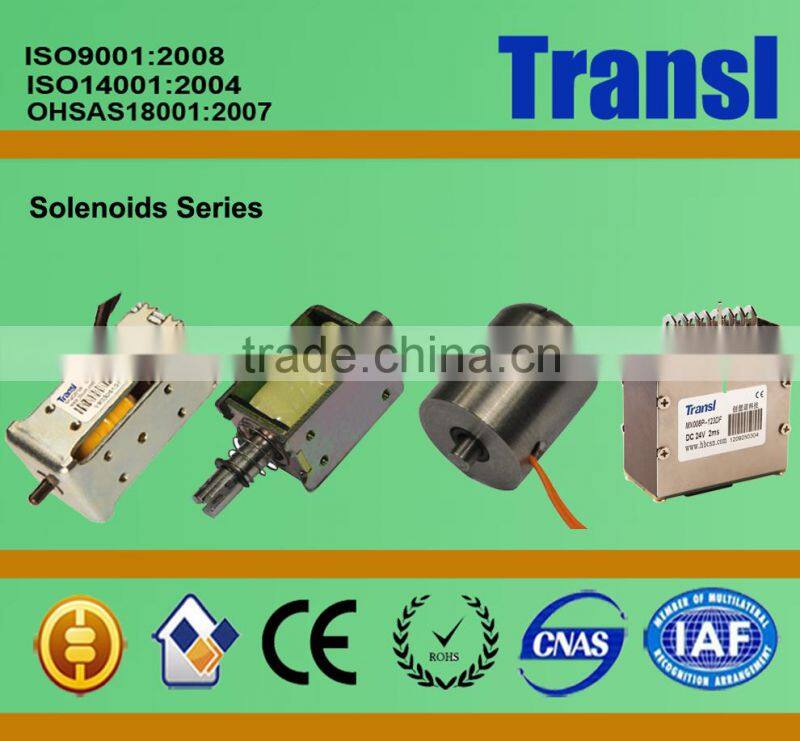

Solenoids Series: widely applied to flat knitting machine, textile machine, weaving machine; automobile, mining exploration, Church Jowing and etc.

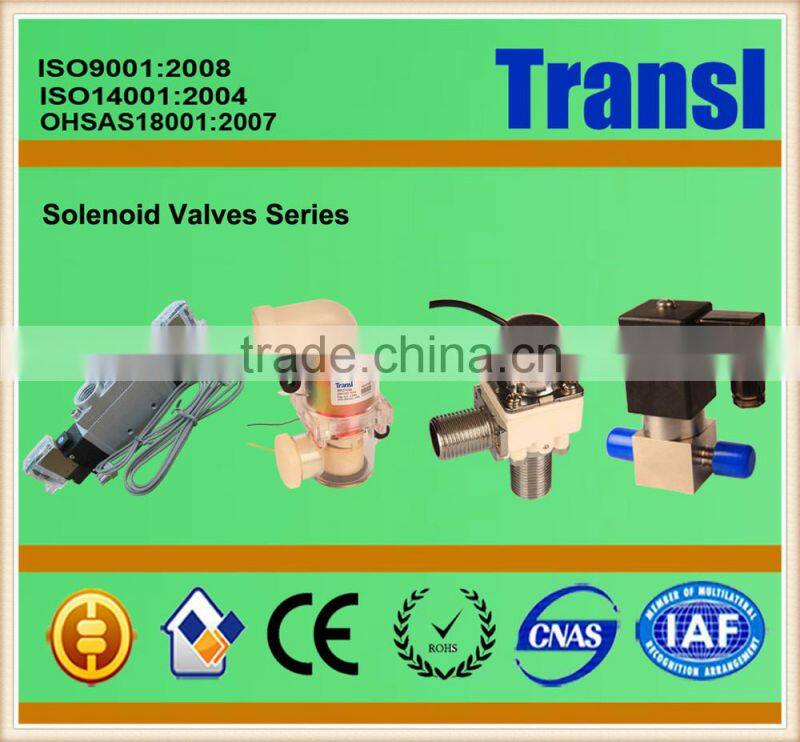

Solenoid Valves Series: widely applied to air cylinder,CNC Machinery, Sanitary ware, flow control, vegitable irrigation and etc.

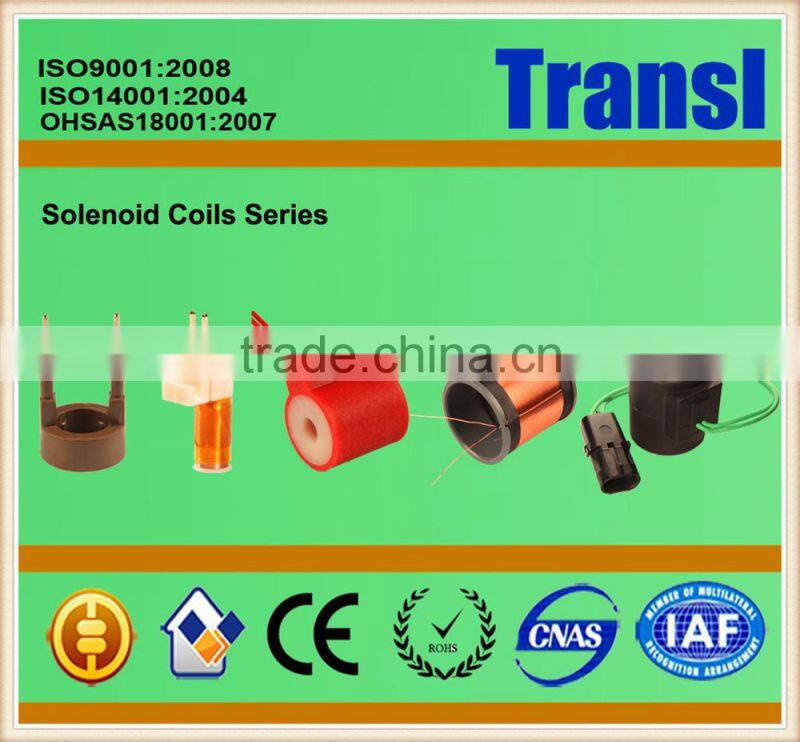

Solenoid Coils Series: widely applied to Automobile, Gas Valves, Fluid Valves, Natural Gas Valves and etc.

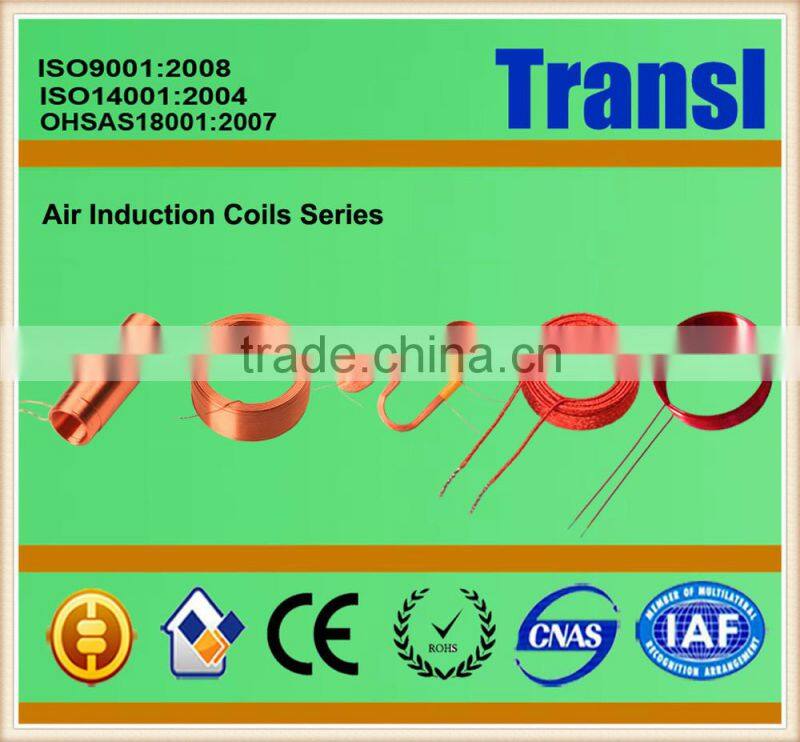

Air Induction Coils Series: widely applied to Sensors, IC card, Card readers, Wireless Chargers, Controllers and etc.
