24V 10.5W 55 Ohms Solenoid Valve Coil
Valve coil
Solenoid Valve Coil
DC24V 10.5W,Dia.17.8-28mm,55 Ohm Solenoid Valve Coil

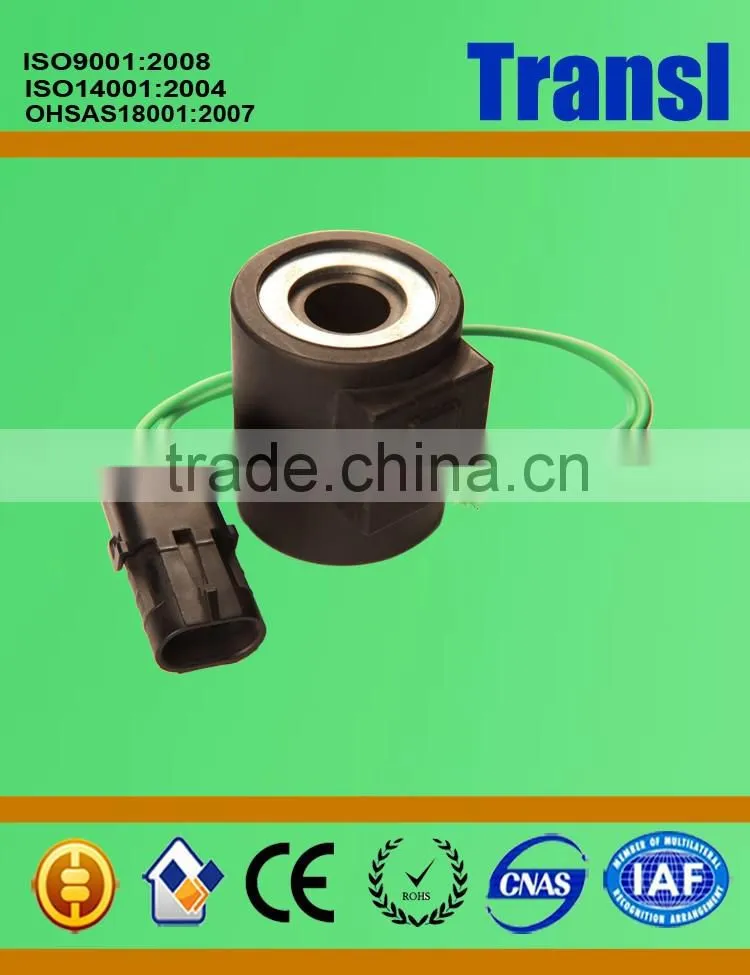

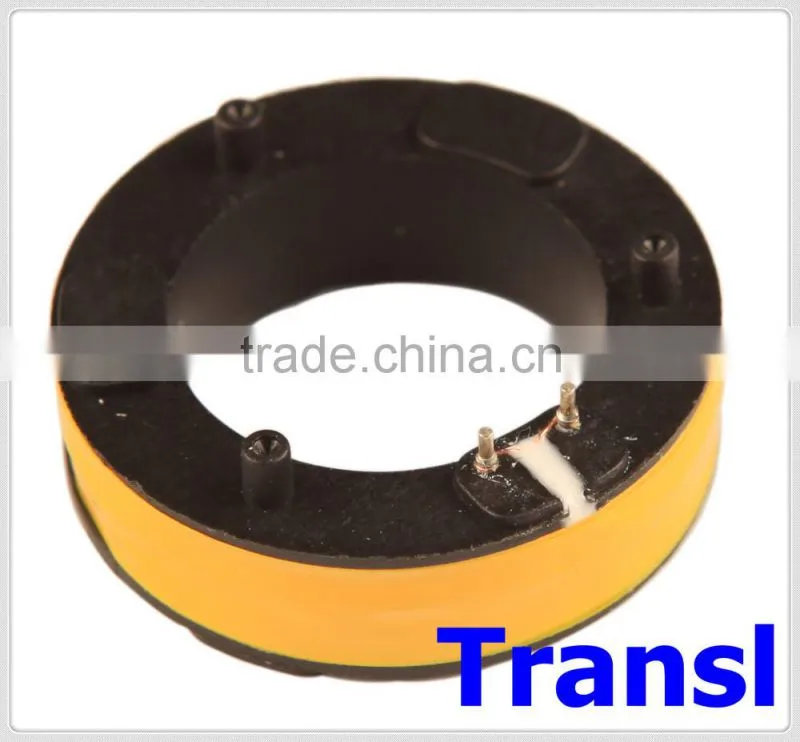

24V 10.5W 55 Ohms Solenoid Valve Coil Actual Image
24V 10.5W 55 Ohms Solenoid Valve Coil Description
The Solenoid Valve Coil is made of Plastic Bobbin Frame and Self-adhesive Copper Enamelled Wire Coil. The valve coil is winded with CNC winding machine under precise production procedure and craftsmanship control
Featured with wide inductance range, large output current, small volume, fast heat dissipation, impedance balance, the solenoid valve Coil is widely applied in the field of Automobile, Gas Valves, Fluid Valves, Natural Gas Valves and etc.
24V 10.5W 55 Ohms Solenoid Valve Coil Specific ation
| Products Name | 24V 10.5W 55 Ohms Solenoid Valve Coil |
| Model | MFZ1807-24 |
| Voltage (V) | DC 24 |
| Internal Diameter (mm) | 17.8 |
| External Diameter (mm) | 28 |
| Height (mm) | 7.2 |
| Resistance ( Ω) | 55 |
| Power | 10.5W |
| Application | Solenoid Valve |
| Standard | CE & Rohs |
