Induction Coil Name

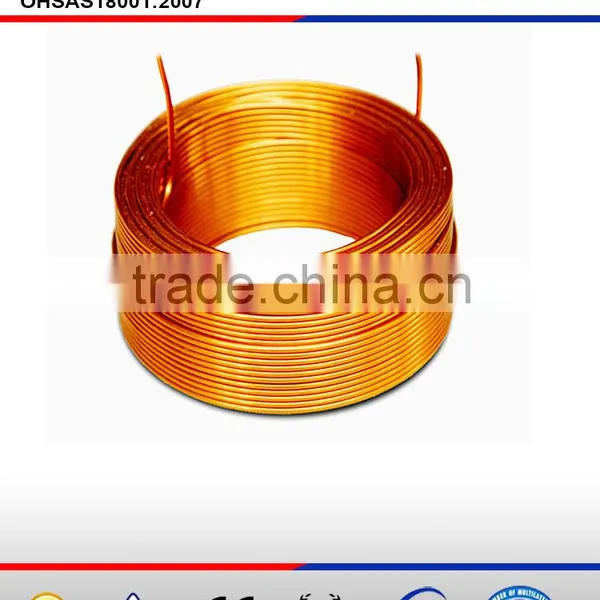

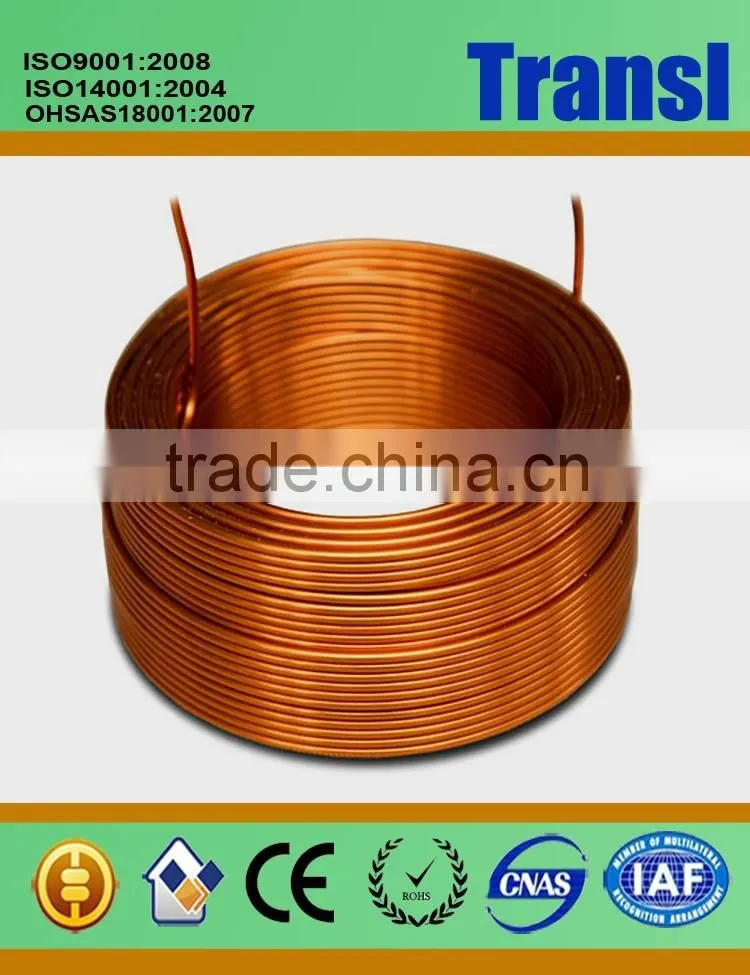

Copper air inductor coil for transformer
Flat Coil
Transformer Coil
Large Power Flat Coil
Flat Wire Coil
Induction Coil Image
Copper air inductor coil for transformer Description
1 The Heat Resistance temperature ranges from 180- 220 ℃
2 Within same size as round wire coil the flat wire coil is characteristc with light weight, low resistance, high efficiency, low noise.
3. Within same size as round wire coil, the flat coil is resistant to higher current, suitable for wider frequency 1KHZ~5MHZ.
4 The simple structure, the stable performance, the small inside temperature variety of the transformer coil gained a greater heat
dissipation performance and better magnetic field efficiency
5 The inductance of the flat coil coil can be manufactured from 200uH to 0.1uH , which withstand the 10A to 200A DC current,
instantaneous current up to 250A, or even higher.
6 The flat wire coils can support a variety of mounting methods, such as patches and plug-ins.
7 Different types of inductors can be designed according to customer requirements.
| Products name: | Copper air inductor coil for transformer |
| Mode: | DGKY/DGKF |
| Internal Diameter(mm): | 0.4-300mm ( Customized) |
| Wire Diameter(mm): | 0.1-8.0mm ( Customized) |
| Heat Reisstance Range(℃): | 180-220 |
| Application Range: | 1KHZ-5MHz ( Customized) |
| Inductance Range (uH) | 0.1-200 ( Customized) |
| Current(℃) | 10-20 ADC |
| Application: | High current coil, low-voltage electrical appliances, industrial control, household appliances, automotive electronics and other fields. |
| Material: | Flat Wire Pure Copper wire |
| Standard: | CE & Rohs |
HuBei ChuangSiNuo Electrical Technology Corp.,(CSN) -Electromagnetic Export
CSN was founded in May 2000, covering more than 12,000 Square Meters , holding more than 30 sets of automatic CNC machines and around 200 employees, CE & Rohs & ISO approved products: Solenoid(s), solenoid valves, needle selector, coil, inductors solenoids. CSN can provide you OEM & ODM production baded on professioan and exprienced internatonal trade practice
Air Induction Coils Series: widely applied to Sensors, IC card, Card readers, Wireless Chargers, Controllers and
etc.
