TITAN 3 Axles Heated Asphalt Bitumen Transportation Insulated Tankers
US$ 8,000 - 25,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New, New
Storage:
Other, Oil, oil fuel diesel bitumen
Drive Wheel:
6x4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TITAN Remolque Cisterna de CombustibleUS$ 13,000 - 20,000MOQ: 1 Set -
TITAN Crude Palm Oil Tankers 40 000 Liters Semi TrailerUS$ 8,000 - 28,000MOQ: 1 Set
-
TITAN 2 Axle Tanker Semi Trailer 25000 l Fuel Tank Semi TrailerUS$ 13,000 - 20,000MOQ: 1 Set
-
TITAN High Capacity Semi Trailer 60000 Liter Oil Tank for SaleUS$ 13,000 - 20,000MOQ: 1 Set
-
TITAN Tri Axle 40 m3 Liquid Chemical Aluminum Tank TrailerUS$ 8,000 - 25,000MOQ: 1 Unit
Storage
Other, Oil, oil fuel diesel bitumen
Drive Wheel
6x4
Horsepower
150 - 250hp
Transmission Type
Manual
Tank Volume
10001 - 15000L
Engine Capacity
9.726L
Dimensions (L x W x H) (mm)
5990*1960*2400
Brand Name
TITAN
Place of Origin
Shandong, China
Model Number
TITAN truck trailer
Gross Vehicle Weight
2000

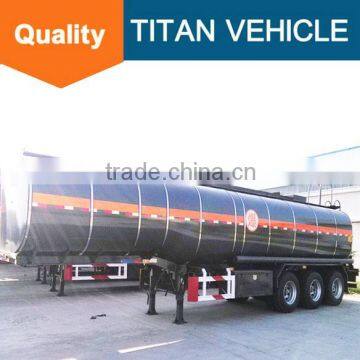

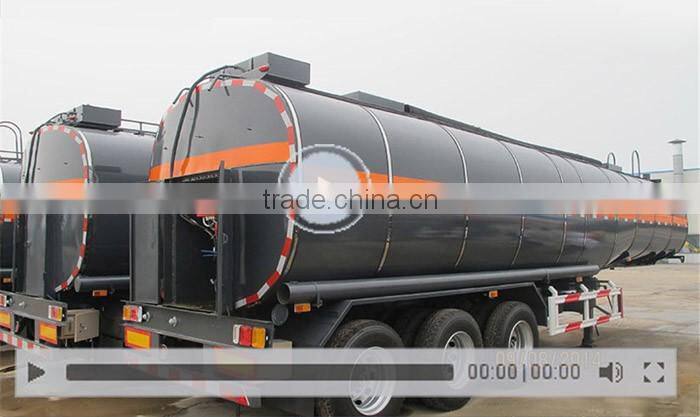

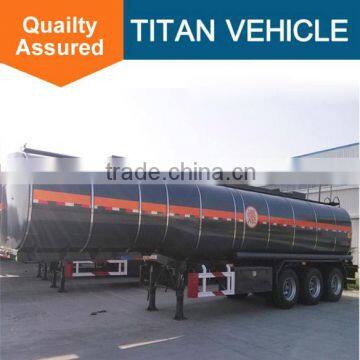

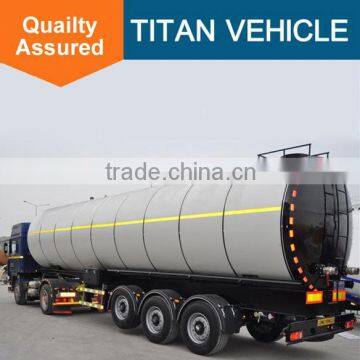

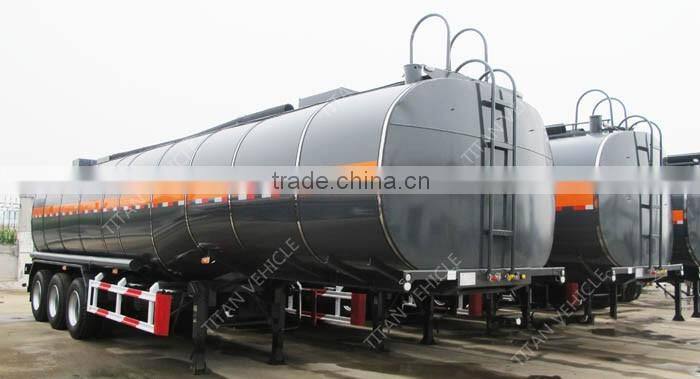

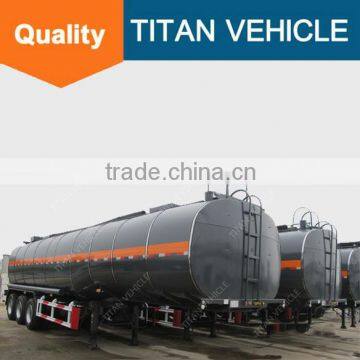

TITAN 3 axles Insulated Heated Bitumen Transport Tanker semi trailer for sale
- Customized product. we can design and manufacture the bitumen tanker trailer as your required.
Video on YouTube : (copy and watch)
- Carbon steel fuel tanker trailer : https://youtu.be/5byl2xiVH8c
- 3 axle oil tank semi trailer : https://youtu.be/eSSMS92w7ZU
- Aluminium alloy :https://youtu.be/hPEqCi0rasw
- 2 axle fuel tank truck trailer : https://youtu.be/xNVyRmyX-HI
Product Description
TANKER SEMI TRAILER FOR CARRYING BITUMEN
Technical specifications of Tanker Body

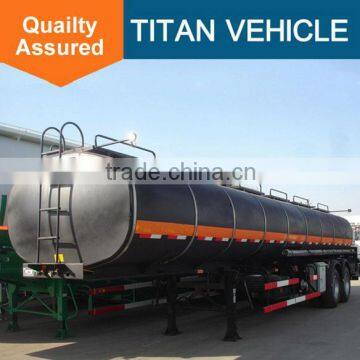

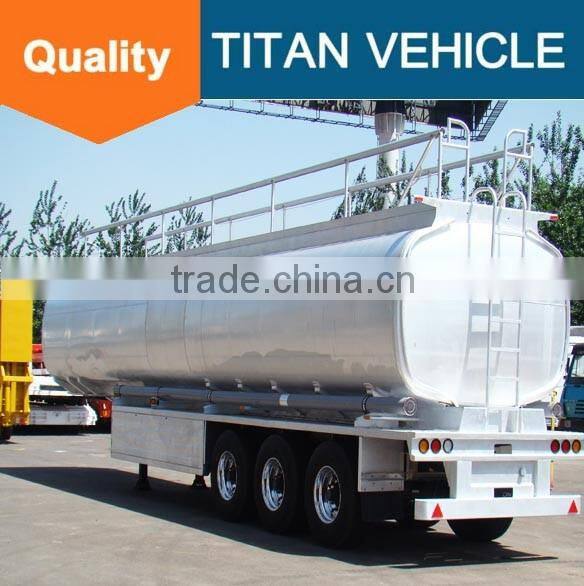

- Ladder and platform : There will be a ladder and walking platform
- Technical specifications of Tanker Body
- Capacity : 40 Ton / 1 compartment

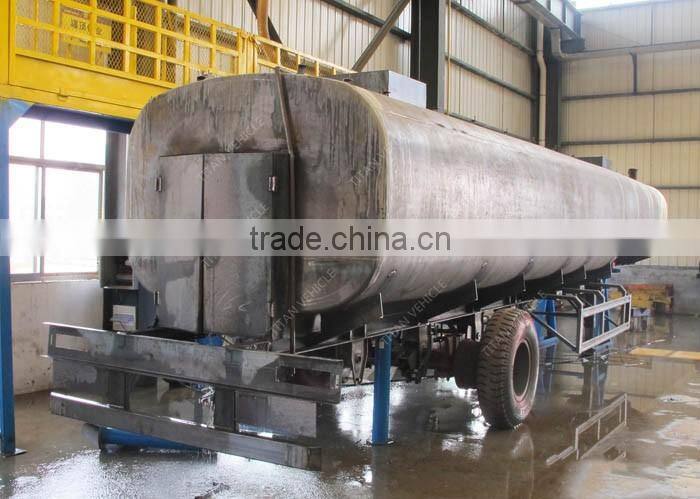

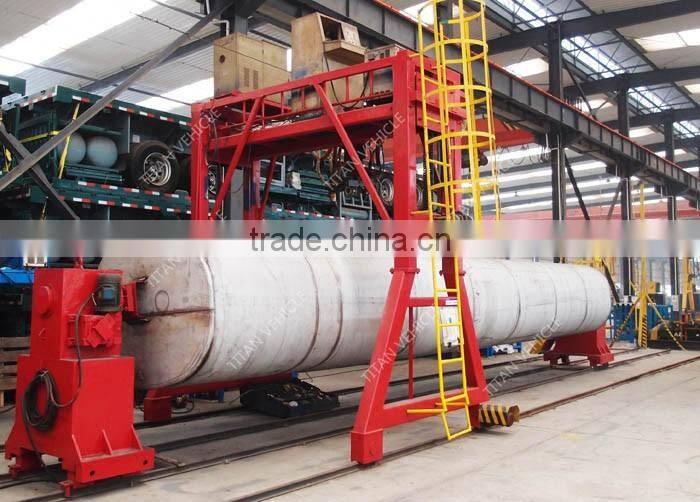

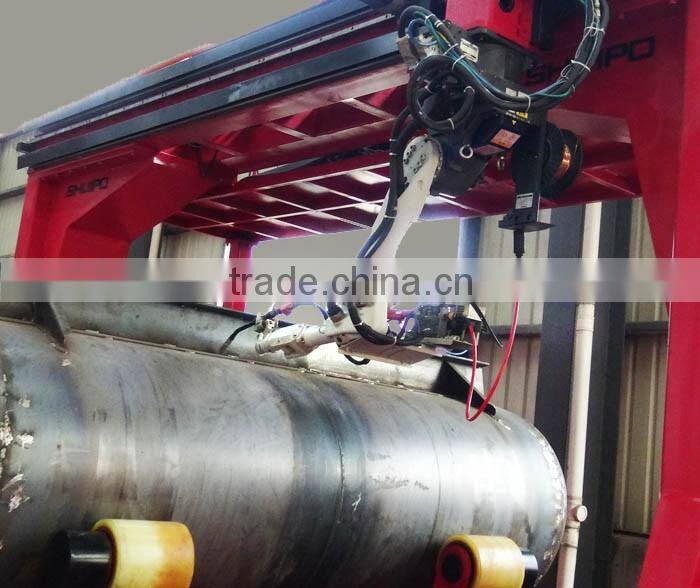

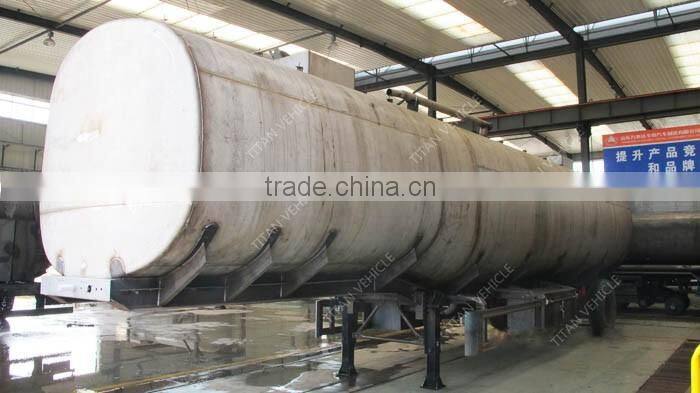

- Body of tanker : It is made from Q345B 5mm sheet iron. Rear and front cambers are pressed. Tank body is cylindrical shape with robotic welding technology
| |
|
- Testing Pressure : 0.300 Bar ,before painting ,filling the water to test the tank body
- Discharge system : 4” globe valve is placed with 4” elbow to rear of the tank in such a way that all products in tank can be discharged.
- Filling system : 1 unit manhole cover will be placed at the top of the tank. Manhole cover will be isolated 8-10 mm thickness and there will be locking and seal place.

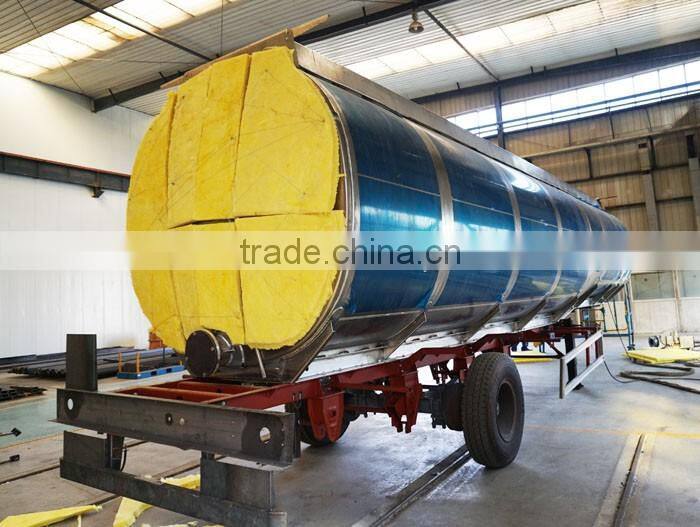

- Adopts importing heat preservation materials with enough thickness of good effect if heat preservation.

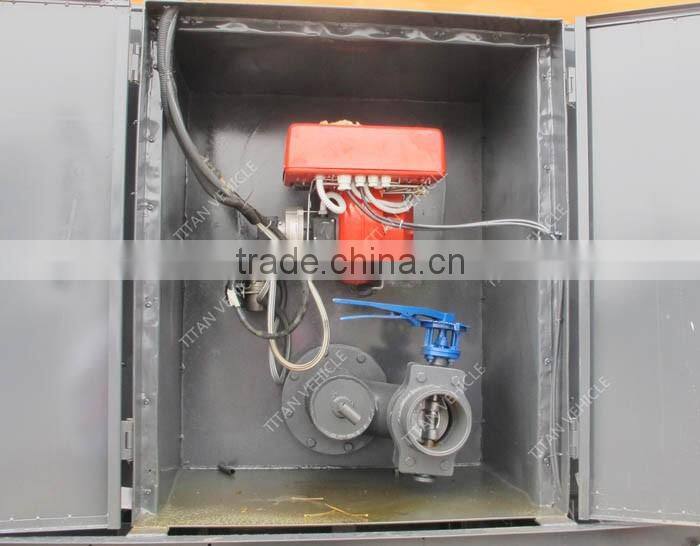

- Heating system : There will be 2 units oil burner which run on diesel or equivalent at the rear of the tank. There will be a platform at the rear of the tank for operating oil burner.
- Technical specifications of running gear
- Chassis : It is made from ST-52 and mono bloc chassis.
- Axles : 3 high quality BP OR FUWA axles . All parts of axle compatible with BPW.
- Landing Legs : 24 ton double speed mechanic landing legs .JOST brand
- Electrical System : 24 V electrical system in accordance with EEC standards with 7 and 15 pins electrical socket.
- Paint : After 2 premier epoxy ground color. And tank will be painted requested color with oven drying
Accessories :
· 1 unit spare tyre
· Spare tyre frame
· Toolbox
· Water tank
· 4 units mudguards made of plastic
· Fire extinguisher (6kg) with its box
Warning signs and writings
Order in this month , we will supply you 500 USD spare parts freely for you.
