Specifications
Load cell1.Single-point, Parallel beam,
2.Aluminium load cell;
3.For electronic scale ,floor scale and other equipment
Load cell; Single point,parallel Beam, Aluminum load cell;
Widely used for electronic top scales ,floor scale and other weighing equipment.
Capacity (KG): 100, 150,200,250,300,350,500
Hermetically sealed with glue to IP65
Surface anodized and anti-corrosion, integral structure and easy installation.
Outline size;150(L)x40(W)x40(H)mm
Recommended platform size:400x400mm
Specifications:
1. Rated Load (Kg): 100-500
2. Rated Output (mV/V): 2.0
3. Zero Balance (%F.S): ±1
4. Input Resistance (Ω): 400±10
5. Output Resistance (Ω): 350±3
6. Excitation Voltage (VDC): 9-12
7. Nonlinearity (%F.S): 0.02
8. Hysteresis (%F.S): 0.02
9. Repeatability (%F.S): 0.02
10. Creep (30min) (%F.S): 0.02
11. Operating Temperature(deg C): -20 To +65
12. Temperature Effect on Zero (%F.S/10): 0.03
13. Temperature Effect on Span (%F.S/10): 0.02
14. Insulation Resistance ( MΩ): 5000 (50VDC)
15. Safe Overload (%F.S): 120
16. Material: Aluminium Alloy
17. Protection Grade: IP65

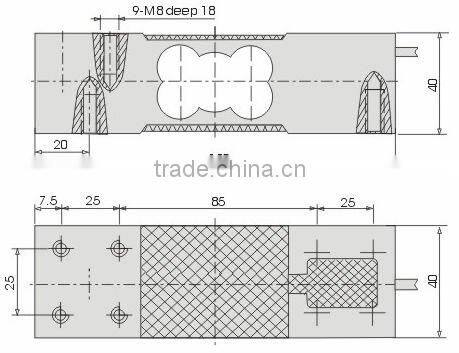

Installation size:
Wire connecting method:
red input +
while output -
black input -
green output +
Power direction:
