Help CenterParallel Beam Load Cell
Related Products
Specifications
material:alloy aluminumsurface anodized and anti-corrosion
hermatically sealed with glue to IP65
Load cell , parallel beam load cell,weighing load cell
Suitable for electronic top scales,floor scales and other electronic weighing devices.
Capacity(KG):50,60,75,100,150,200,250,300,500,600,750
Size:186x60x30mm
Recommended platform size:600x600mm
Specifications:
Accuracy grade:C2/C3
Comprehensive error (%F.S) : ±0.02/ ±0.017
Sensitivity (mv/v) : 2.0±0.2
Creep (%F.S/30min) : ±0.02/ ±0.017
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 405±10
Output Resistance (Ω): 350±3
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.03 / ±0.017
Temperature Effect on Span (%F.S/10): ±0.02 / ±0.014
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+60
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 120
Limit overload (%F.S) : 150
Protection Grade: IP65

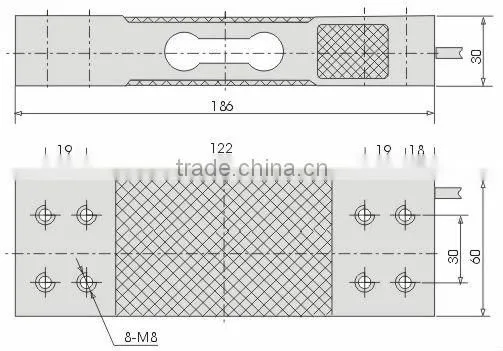

Installation size diagram:
Wire connecting method:
red input +
white output -
black input -
green output +
Power diagram:
