Help CenterParallel Beam Load Cell
Related Products
Specifications
material:alloy aluminumsurface anodized and anti-corrosion
hermatically sealed with glue to IP65
Load cell , parallel beam load cell,weighing load cell
Suitable for electronic counting scales,platform scales and othersmall size electronic weighing devices.
Capacity(KG):5,8,10,15,20,30,35,100
Size:80x22x21mm
Recommended platform size:200x200mm
Specifications:
Accuracy grade:C2
Comprehensive error (%F.S) : ±0.02
Sensitivity (mv/v) : 2.0±0.1
Creep (%F.S/30min) : ±0.02
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 405±10
Output Resistance (Ω): 350±3
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.03
Temperature Effect on Span (%F.S/10): ±0.02
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+60
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 120
Limit overload (%F.S) : 150
Protection Grade: IP65

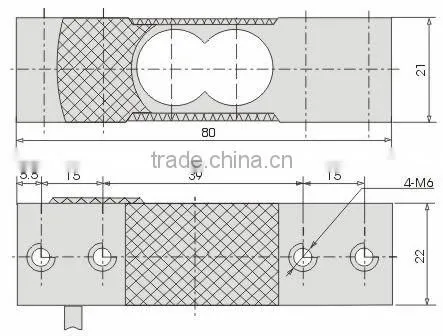

Installation size diagram:
Wire connecting method:
red input +
white output -
black input -
green output +
Power diagram:
