Parallel Beam Load Cell

Parallel Beam Load Cell thumbnail-1
Parallel Beam Load Cell photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
WESTBOAO
Model Number:
LC601
Contact Supplier Request Quote Chat Now
Shenzhen West-Boao Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name WESTBOAO
Model Number LC601
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

Specifications

material:alloy aluminum
surface anodized and anti-corrosion
hermatically sealed with glue to IP65

Load cell , parallel beam load cell,weighing load cell



Suitable for electronic counting scales, platform scales and other small size electronic weighing devices.

Capacity(KG):3,5,6,10,15,20,30,40,50,60,100,120

Size:130x22x30mm

Recommended platform size:250x350mm



Specifications:

Accuracy grade:C2/C3

Comprehensive error (%F.S) : ±0.02/ ±0.017

Sensitivity (mv/v) : 2.0±0.2

Creep (%F.S/30min) : ±0.02/ ±0.017

Zero output (%F.S) : ±1.0
Input Resistance (Ω): 405±10

Output Resistance (Ω): 350±3

Insulation resistance (MΩ) : ≥5000(100VDC)

Temperature Effect on Zero (%F.S/10): ±0.03 / ±0.017

Temperature Effect on Span (%F.S/10): ±0.02 / ±0.014

Temperature compensation range (°C ) : -10~+40

Operating temperature (°C ) : -20~+60

Excitation voltage (V) : 9~12(DC)

Safe overload (%F.S) : 120

Limit overload (%F.S) : 150

Protection Grade: IP65

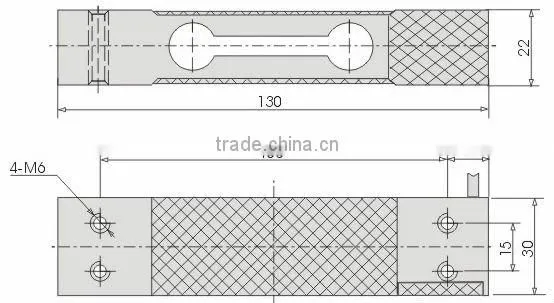

Installation size diagram:

parallel beam load cell



Wire connecting method:

red       input  +

white   output  -

black   input   -

green  output  +



Power diagram:

parallel beam load cell
