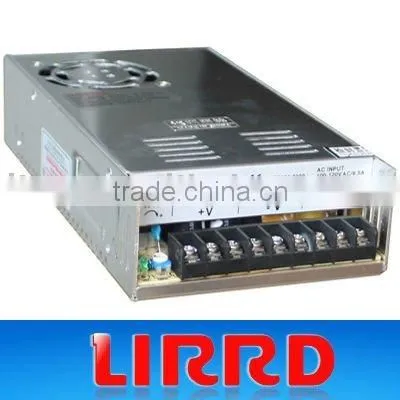

5V 50A Single dc Regulated Power Supply (S-320-5)

5V 50A Single dc Regulated Power Supply (S-320-5) thumbnail-1
5V 50A Single dc Regulated Power Supply (S-320-5) photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
S-320-5
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number S-320-5
Output Power 301 - 400W
Output Type Single
Input Voltage 220V
Output Voltage 5V
Output Current 50A

Specifications

5V 50A single dc regulated power supply (S-320-5)
CE certificate, better rediating effect
competitve price, high quality

5V 50A single dc regulated power supply(S-320-5)

  • 320W switch power supply
  • Competitived price and high reliability
  • 105oC Output capacitor
  • AC input power suitable for the world
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effeciticly
  • With short-circuit and overload protection
  • Compact size, light weight
  • 100% full-load burn-in test
  • Installed with EMI filter, minimum wave

Model S-320-5 S-320-7.5 S-320-12 S-320-13.5 S-320-15 S-320-24 S-320-27 S-320-48
DC output voltage 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Output voltage range(Note:2) ±2% ±2% ±1% ±1% ±1% ±1% ±1% ±1%
Rated output current 50A 36A 25A 22A 20A 12.5A 11A 6.5A
Output current range 0-50A 0-36A 0-25A 0-22A 0-20A 0-12.5A 0-11A 0-6.5A
Wave and noise(Note:3) 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
Inlet stability(Note:4) ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability(Note:5) ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
DC output power 250W 270W 300W 297W 300W 300W 297W 312W
Efficiency 73% 76% 74% 79% 78% 81% 82% 83%
Adjustable range for DC voltage 4.5~5.6V 6~9V 10~13.2V 12~15V 13.5~18V 20~26.4V 26~32V 41~56V
Input current 6A/115V 3.5A/230V
AC inrush current 18A/115V 36A/230V
Leakage current <3.5mA/240VAC
Overload protection 105%~135% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection 5.75~6.75V 9.4~10.9V 13.8~16.2V 15.5~18.2V 18~21V 27.6~32.4V 33.7~39.2V 57.6~67.2V
High-temperature protection ERH3>=65~70°c Fan on, <=55~60°c Fan off,>=80~85°c, Cut off ouput(5~15V)~(24~48V)
Setup, rise , hold up time 2ms,20ms, 20ms
Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal: 1.5KvAC, Input and enclosure:1.5KvAC, Output and enclosure:0.5KvAC
Working temperature and humidity  -10°c~+60°c(Refer to output derating curve), 20%~90%RH
Weight 1.15Kgs
Safety standards Design refer to Ul 1950
EMC standards Design refer to FCC Part 15J Part 15 J class A

Note:                                                                                                                                                                1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperatuer.

2. Error: include the setting error, line stability and load stability.(Note:5)

3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting.

4. Inlet woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage.

5. Load stability test: The load is from 0% to 100%
