Specifications
din rail switching power supply(DR-60-15)Offer CE certification
Competitive price, high quality, prompt deliver best serveice

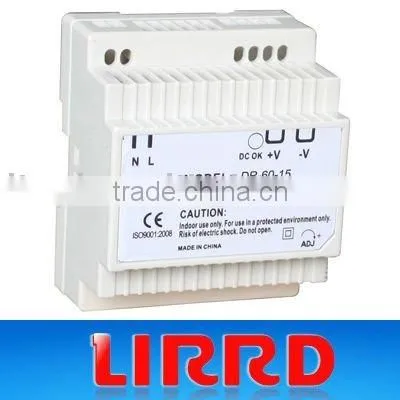

din rail switching power supply(DR-60-15)
- 105oC Output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effeciticly
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
Model |
DR-60-5 |
DR-60-12 |
DR-60-15 |
DR-60-24 |
DC output voltage |
5V |
12V |
15V |
24V |
Output voltage range(Note:2) |
±2% |
±1% |
±1% |
±1% |
Rated output current |
6.5A |
4.5A |
4A |
2.5A |
Output current range |
0-6.5A |
0-4.5A |
0-4A |
0-2.5A |
Wave and noise(Note:3) |
100mVp-p |
200mVp-p |
240mVp-p |
480mVp-p |
Inlet stability(Note:4) |
±1% |
±1% |
±1% |
±1% |
Load stability(Note:5) |
±1% |
±1% |
±1% |
±1% |
DC output power |
32.5W |
54W |
60W |
60W |
Efficiency |
72% |
77% |
77% |
80% |
Adjustable range for DC voltage |
4.75~5.5V |
10.8~13.2V |
13.5~16.5V |
21.6~26.4V |
AC input voltage range |
85~264VAC 47~63Hz;120~370VDC |
|||
Input current |
1.5A/115V 0.75A/230V |
|||
AC inrush curren |
Cold-start current 30A/115V 60A/230V |
|||
Leakage current |
<1mA/240VAC |
|||
Overload protection |
105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery |
|||
Temperature coefficient |
±0.03%/°c(0~50°c) |
|||
Setup, rise , hold up time |
800ms, 60ms, 50ms |
|||
Vibration |
10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes |
|||
Withstand voltage |
Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC |
|||
Isolation resistance |
Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ |
|||
Working temperature and humidity |
-10°c~+60°c(Refer to output derating curve), 20%~90%RH |
|||
Overall dimension |
78×93×56mm |
|||
Weight |
0.3Kgs |
|||
Safety standards |
Meet UL 1012 requiement (Not apply for the mark) |
|||
EMC standards |
Meet FCC PART 15 J Conduction class B |
|||
|
Note: 1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperatuer. 2. Error: include the setting error, line stability and load stability.(Note:5). 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inler woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100%. | ||||
