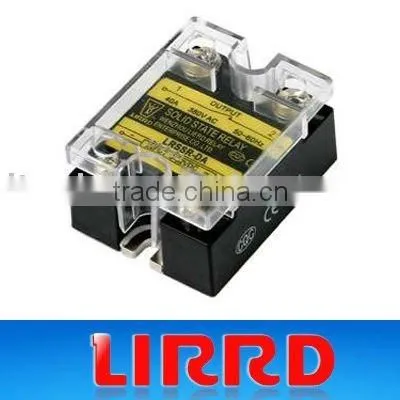

5A SSR/3-32Vdc Solid State Relay/10a Solid State Relay

5A SSR/3-32Vdc Solid State Relay/10a Solid State Relay thumbnail-1
5A SSR/3-32Vdc Solid State Relay/10a Solid State Relay photo-1
US$ 1 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
SSR-DA
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number SSR-DA
Theory Other, Solid State Relay, Solid State Relay
Usage Other, General Purpose, Protective
Size Miniature
Protect Feature Other, Epoxy, Sealed
Contact Load Other, Low Power, Low Power

Specifications

1) 5A SSR/3-32Vdc solid state relay/10a solid state relay
2) Different type for Selection
4)UL, RoHS, CE, ISO, CCC, CQC

1) 5A SSR/3-32Vdc solid state relay/10a solid state relay
2) Different type for Selection
3) Designing similar products
4)LODA CURRENT 10,15,25,40,50,60,75,90A

SSR-25DA solid relay,SSR,RELAY,industrial solid state relay

Relay,Relays,Power Relay,General Purpose Relay,Time Relay,Auto Relay,Mini Relay,Miniature Relay,Thermal Relay,Solid State Relay,Electromagnetic Relay,Timer Relay,General Relay,Latching Relay,Electric Relay,Overload Relay,Control Relay,12V Relay,AC Relay,DC relay,Current Relay,Relay Switch,Omron Relay,PCB Relay,Board Relay,Relay Socket

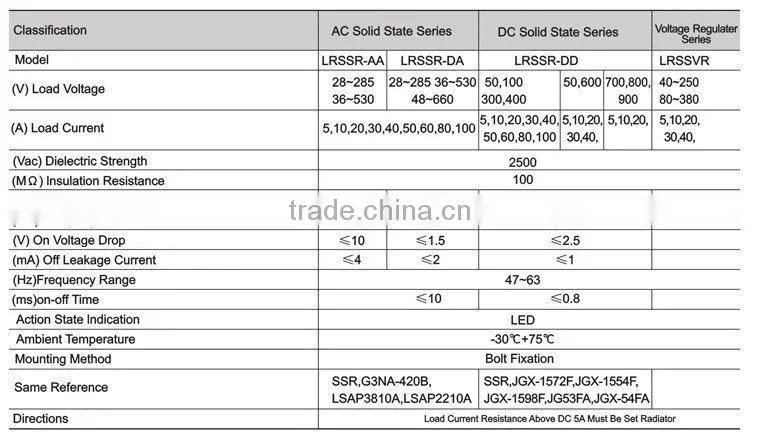

Main Feature:

1. Rated voltage output: 40~240VAC, 60~440VAC

2. Rated current output: 10,15,20,25,30,40,50,60,70,80,100,120A

3. On-state voltage drop: ≤1.8V

4. On-off time: ≤ 10ms

5. Current leakage in Disconnection: ≤10ms

6. Input voltage: 3~14VDC, 3~32VDC, 90~250VAC

7. Input current: 6~35mA

8. Isolating voltage: ≥1500VACA

9. Ambient temperature: - 25~70 °C

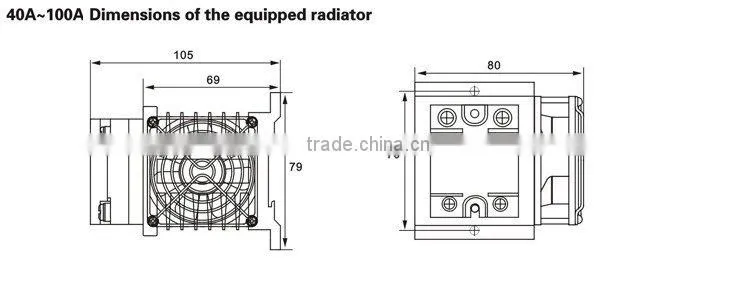

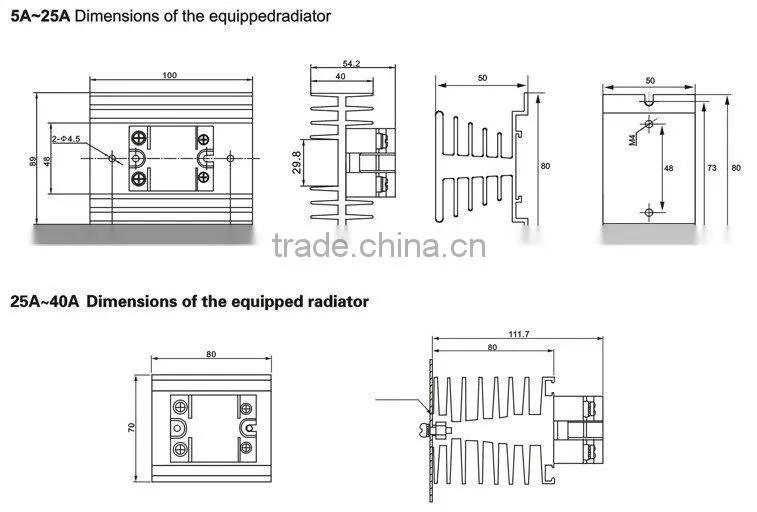

10. Working indication: LED11. Remark: Heat sink must be installedWhen the load reaches to10A or above.



5A SSR/3-32Vdc solid state relay/10a solid state relay5A SSR/3-32Vdc solid state relay/10a solid state relay5A SSR/3-32Vdc solid state relay/10a solid state relay5A SSR/3-32Vdc solid state relay/10a solid state relay5A SSR/3-32Vdc solid state relay/10a solid state relay5A SSR/3-32Vdc solid state relay/10a solid state relay
