electromagnetic relay MK2P/universal relay/10A relay
Contact capacity: 10A, 250V AC
Coil voltage: AC6V - 220V, DC6 - 110V
Contact Form: DPDT
Mounting Socket: PF083A
Coil Voltage: DC6V to 110V AC6V to 240V
Contact Capacity: 10A 250VAC
Contact Form: DPDT
Coil Power: DC:≤1.2W AC: ≤2.2VA
Pick Up: DC≤75% AC≤80%
Drop out: DC:≥10% AC: ≥30%
Insulation Resistance: :≥100MΩ
Contact Resistance: ≤50mΩ
Electrical Life: 100,000times
Mechanical Life: 10,000,000times
Mounting Form: socket PF083A PF083A-E
Operating Temperature: -40°C to +55°C
MK2PN: with Lamp, MK2PS: with test button, MK2PNS: with lamp & test button

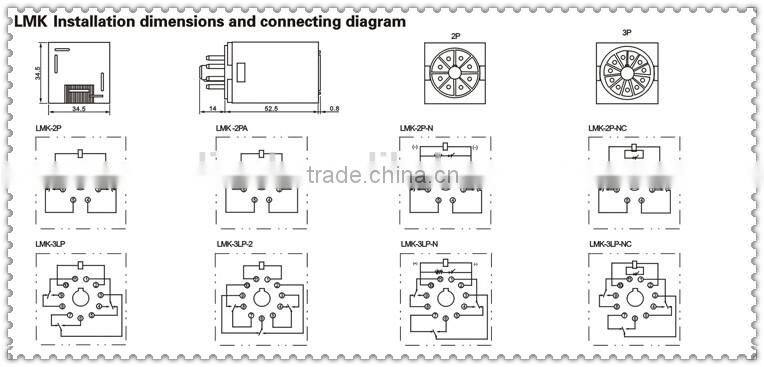

Dimension |
34.5 x 34.5 x 52.5mm |
|
|
Contact |
Form |
2Z OR 2C |
Material |
Silver alloy |
|
Resistance Performance |
10A/28VDC 10A/240VAC |
|
Resistance at 6VDC 1A |
≤100mΩ |
|
Coil power at 23℃ |
DC(W) |
≤1.5W |
AC(VA) |
≤2.5VA |
|
Coil voltage |
DC(V) |
6~220V |
AC(V) |
6~380V |
|
Pick-up voltage at 23℃ |
DC≤75% AC≤80% |
|
Release voltage at 23℃ |
DC≥10‰ AC≥30% |
|
Max voltage at 23℃ |
110% |
|
|
Dielectric Strength |
Between Open Contacts |
≥1200VAC 50Hz/1min Leakage current 1mA |
Between Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Between coil & Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Insulation Resistance at 500VDC |
≥100MΩ |
|
Life |
Electrical |
105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical |
10 6Times (Frequency: 300times/1min) |
|
Ambient Temperature |
-25℃ ~ +55℃ |
|
Terminal type |
Insert type or welding type (Please mark you need) |
|
Suitable sockets |
LPF083A LPF083A-E LPL08 |
|
Unit weight |
≈76G |
|
Model reference |
JTX |
|

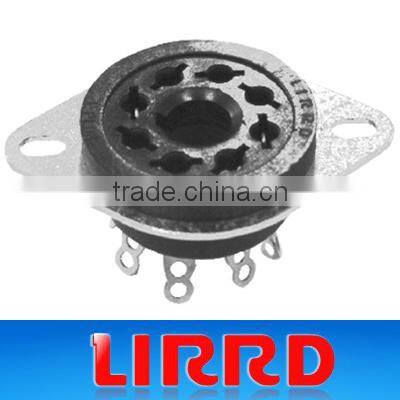

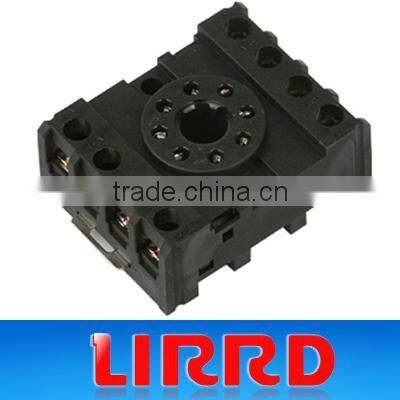

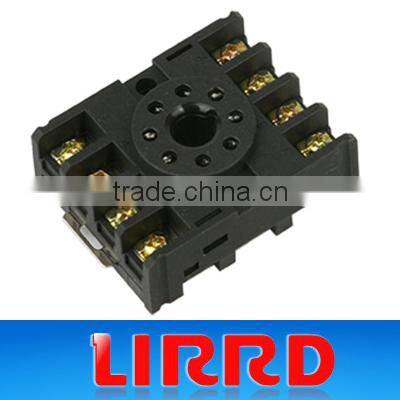

Socket for this relay:
200PCS/CTN, 18KG/CTN,0.033CBM
