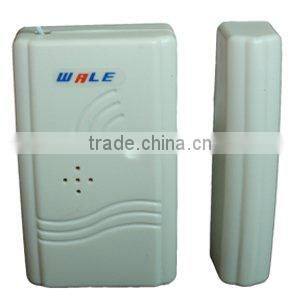

Wireless Door Window Anti-Theft Alarm Magnetic Contact Switch

Wireless Door Window Anti-Theft Alarm Magnetic Contact Switch photo-1
US$ 1.8 - 2.8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wale
Model Number:
WL-19W
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Wale
Model Number WL-19W
Usage Other, door or window

Wireless Door or Window Magnetic Contact

Features:

  • Model No.: WL-19W
  • Protect your doors, windows, sliding doors, sliding windows and cabinets, etc...
  • Widely used in wireless home or business alarm system
  • Static Current Consumption: ≤ 5μA
  • Emission Current: ≤15mA
  • Operating Temperature: -10 °C ~ 50 °C
  • Emission Distance: 100 m (Open field)
  • Decode: Fixed code by pins
  • Alarm time: 5 seconds
  • LED Indication of alarm and low battery
  • Built-in Battery: 23A-12V battery (included, useful life time 6-12 months)
  • Size: 70mm x 40mm x 15mm (antenna not included)
  • Emission Frequency: We can offer 315 MHz or 433 MHz, you can choose one.
  • Oscillation resistor / Timing resistor : We can offer 1.2M, 1.5M, 1.8M, 2.2M, 3.3M or 4.7M, you can choose one

Installation:

  • Stick part A (magnetic bar) on the edge of a moveable door or window, and stick part B on the fixed doorframe or window frame.
  • Note: The distance of these two parts shall be less than 1-2 cm when the door or the window is closed.

Usages:

  • Pull out the antenna of the magnetic detector.
  • When the door or window is opened from the closed position, LED 1 will turn on red light for 5 seconds, the magnetic detector will be triggered and will send alarming signal to the main unit.
  • Indication of low battery: When the voltage of battery is less than 7.5V, LED 2 will straightly turn on red light. At this time, you must immediately change the battery.

Wireless door window Anti-Theft alarm magnetic contact switchWireless door window Anti-Theft alarm magnetic contact switch
