Home > Industrial Equipment & Components > Valve > Ball Valve > Factory High Quality API Drainage Regulating Valve
Factory High Quality API Drainage Regulating Valve
US$ 50 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Other, According to your demand
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory High Quality API Cast Iron Steam Hydrophobic ValveUS$ 50 - 500MOQ: 1 Set -
Factory High Quality API Double Regulating ValveUS$ 50 - 500MOQ: 1 Set
-
Factory High Quality API Manual Regulating ValveUS$ 50 - 500MOQ: 1 Set
-
API Manual Regulating Gate Valve Steam LineUS$ 50 - 500MOQ: 1 Set
-
Factory API Ball Valve for Alumina SlurryUS$ 4,000 - 8,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Gate
Pressure
Other, According to your demand
Power
Manual
Material
Other, According to your demand
Temperature of Media
High Temperature
Media
Other, Paper making,pharmacy,coloring chemical
Port Size
50-250
Place of Origin
Shaanxi, China
Model Number
SH/SJF41Y
Brand Name
SHBF
DRAINAGE REGULATING VALVE
Technical Specification
| Nominal pressure(Mpa) | 16.0 |
| Shell test pressure(Mpa) | 24.0 |
| Highest working pressure(Mpa) | 16.0 |
| Max differential pressure(Mpa) | 10.0 |
| Max working temperature | 345 |
| Working medium | Steam.Condensate |

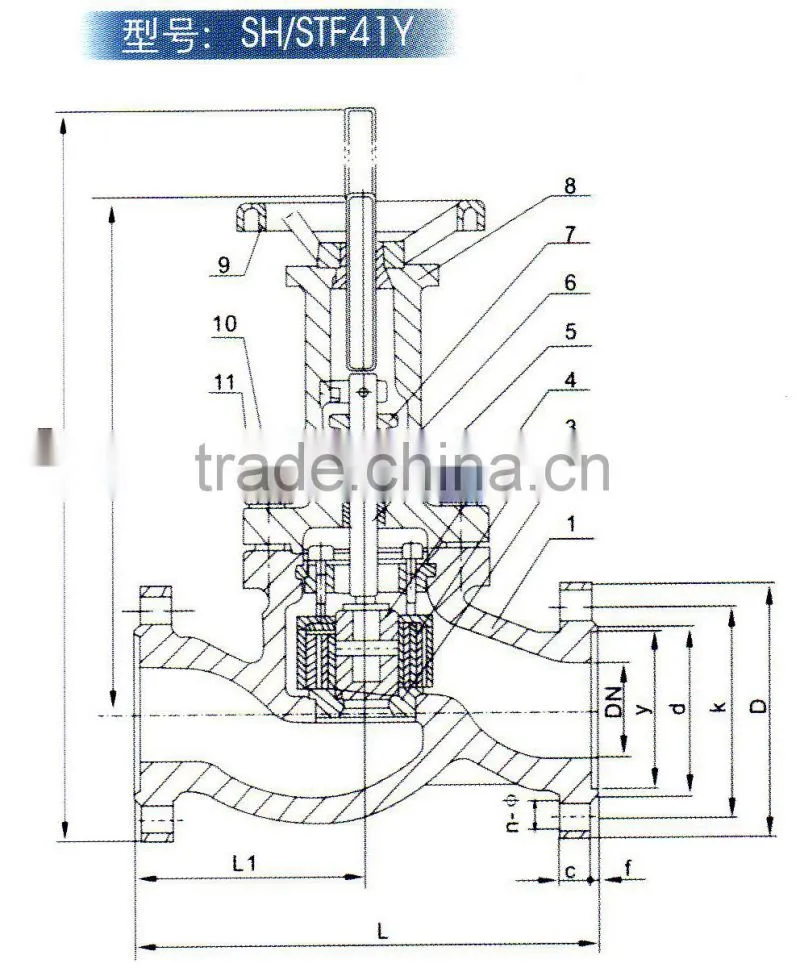

Material list
| No. | Parts name | Material | No. | Parts name | Material |
| 1 | Body | Alloy steel casting | 7 | Gland | Alloy steel casting |
| 2 | Seat | Heat resistane acid-proof steel | 8 | Yoke | Alloy steel casting |
| 3 | Multistage nozzie | Stainless Steel | 9 | Hand wheel | Cast iron with graphite |
| 4 | Dise | Heat resistane acid-proof steel | 10 | Stud | Alloy steel |
| 5 | Stem | Stainless steel | 11 | Nut | Alloy steel |
| 6 | Packing | Graphite |
Please send me your requirment, then we could offer you the suitable style and competitive price.
