Skid-Mounted Oil Gas Water 3 Phase Separator for Oil-Gas Field Exploitation
Products Design Features

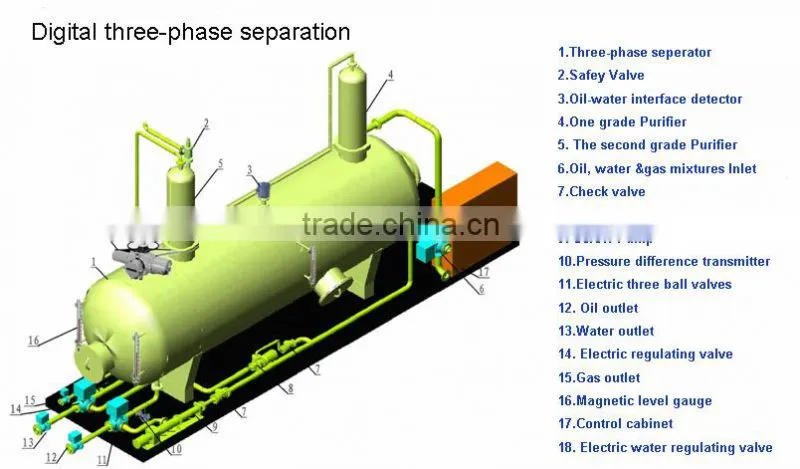

Digital three-phase separation device is specially developed to solve the high efficient separation of mixed crude oil and waste of resources. The principle is using the new three-phase separator for effective separation of crude oil, water, and associated gas mixture, and monitoring to the of oil and water after separation, direct output meets the requirements, such as do not conform to the requirements, to return to three-phase separator for secondary requirements until the separation is up to lose.
Separation design execution standard:API12J,HG/T 20570.8;
Structure Size: f2000x7000
Design parameter
Design pressure: 1.0MPa;
Design temperature: 80℃;
Dealing capacity: 300m3/d;
Dealing medium: Crude oil,Water,Associated gas mixture.
Crude oil physical property: Viscosity (50℃);5.56 Mpa·S;Crude oil density(20℃):0.86 ;
Gas-Oil Ratio >150;
Standing time: 15-23Minutes(According to the height of the liquid level in the tank).
Container material: Cylinder, head material Q345R; In and out of the liquid separation package material Q345R;
