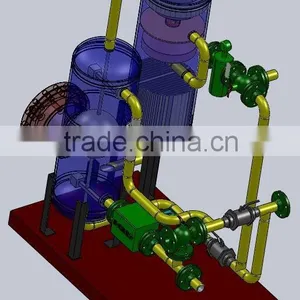

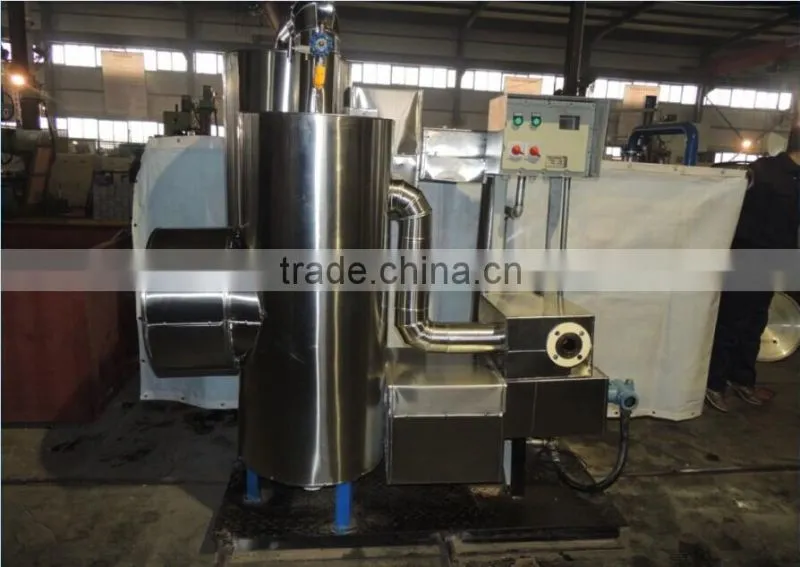

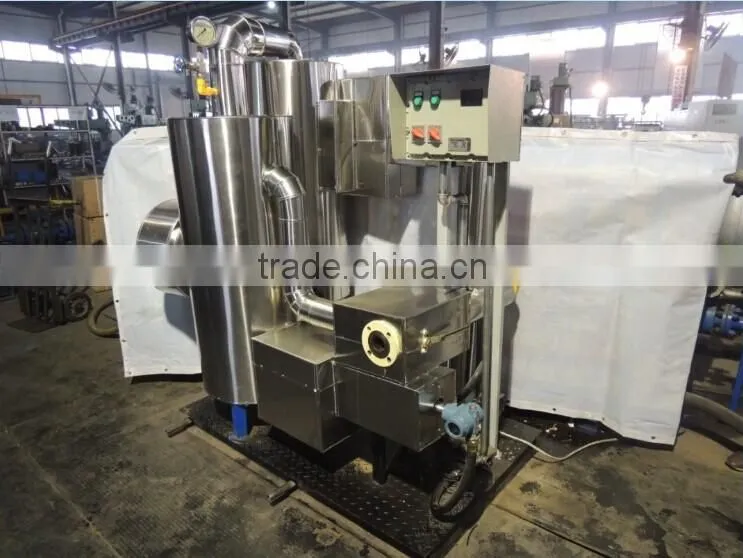

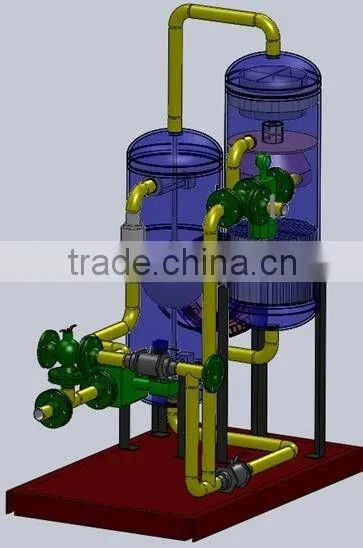

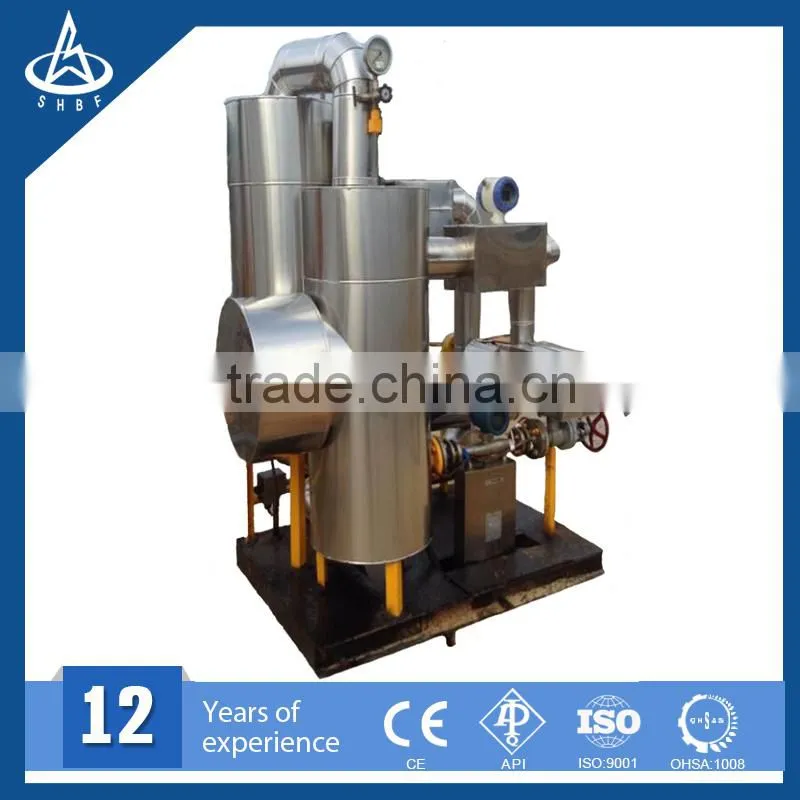

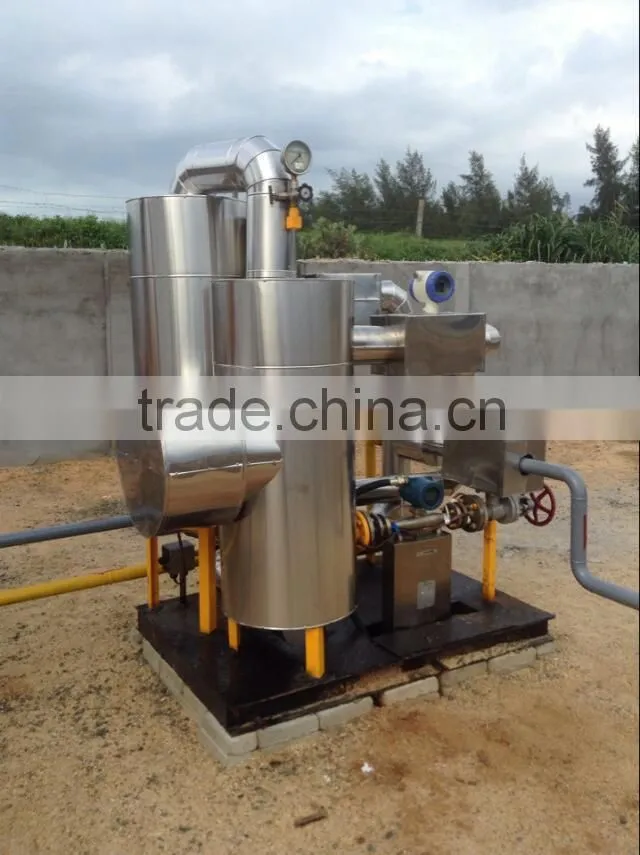

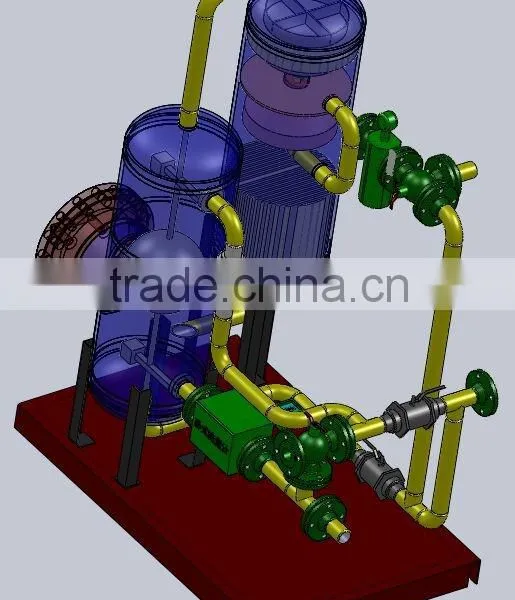

Skid mounted crude oil flow meters
Brief introduction
Crude oil volume metering skid is a highly efficient,precision metering device for the fluid oil measuring. Due to the complex fluid flow, the skid resolve the multiphase fluid flow to be the single gas phase and liquid(oil and water) two phase problem. It could meter of oil, water, gas phase flow rate and moisture content through the flow meter.
Main technical feature
1..Accurate measurement, high precision;
2. Measuring water content online, gas, instantaneous flow, cumulative in the meantime;
3. The meter is not affected by pressure flow pattern, temperature;
4. Sand prevention,anti-blacking,self flushing, electricity mix thermal insulation, anti fouling and wax;
5. Full digitalization, high degree of automation;
6. The advantage is complementary, reduce cost.
Main technical parameters
- Ø The max of remote wired distance is 1000 meters.
- Ø Nominal diameter:DN50mm
- Ø accuracy :±0.2%,±0.5%
- Ø Flow range:4~40 m3/h
- Ø Environment temperature:-30~50 ℃
- Ø Nominal pressure:4.0MPa
- Ø Suitable medium:Crude,high pour point oil,high water content crude.
- Ø Directive function: Statues display the cumulative flow and transient flow.
- Ø Output: Pulse, 4-20mA
- Ø Connect type: Flange GB-/T9113.1-2000
- Ø Technical standard: JB/T9242-1999 Crude oil volume metering skid
Please send me your requirment, then we could offer you the suitable style and competitive price.
