Pig Launcher and Receiver

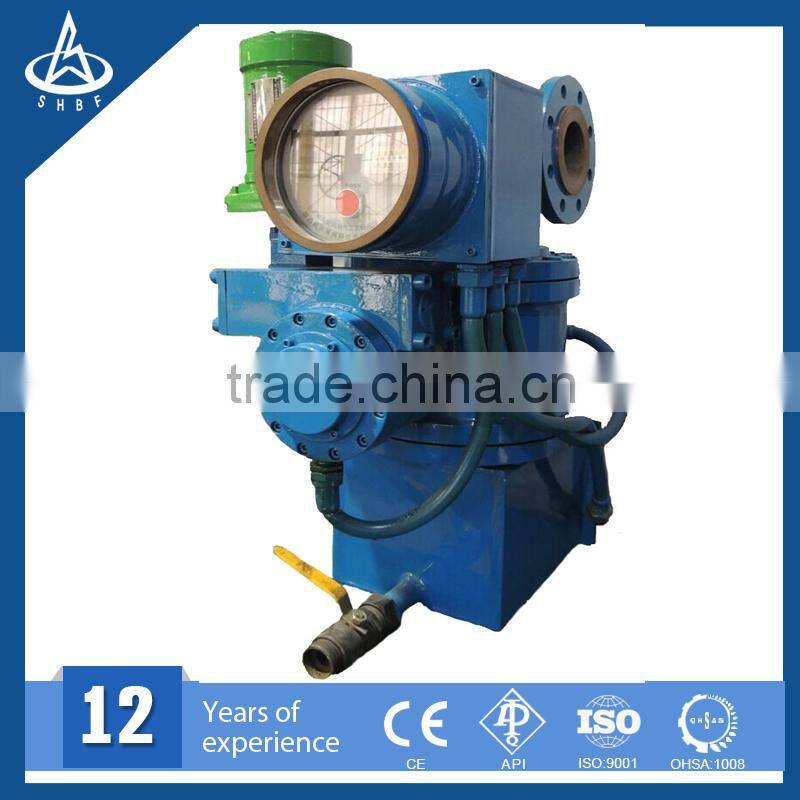

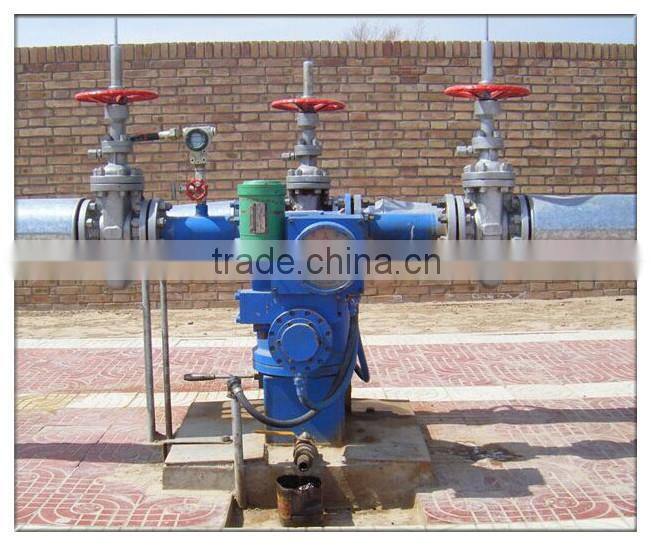

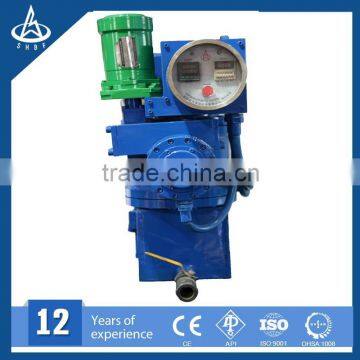

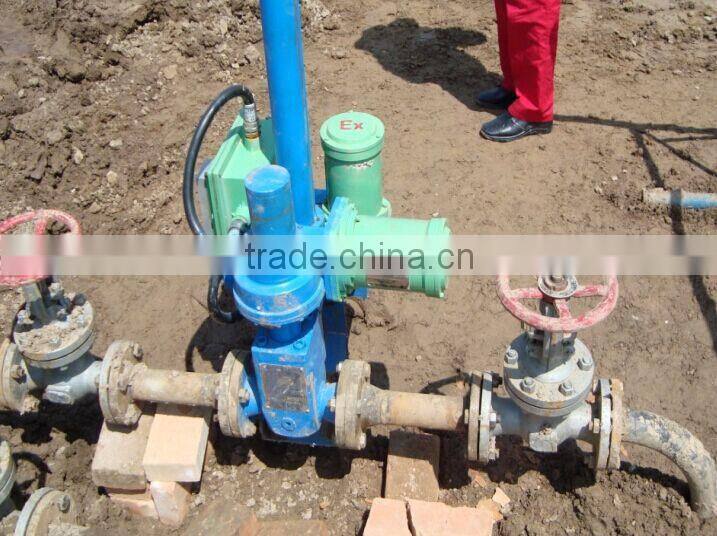

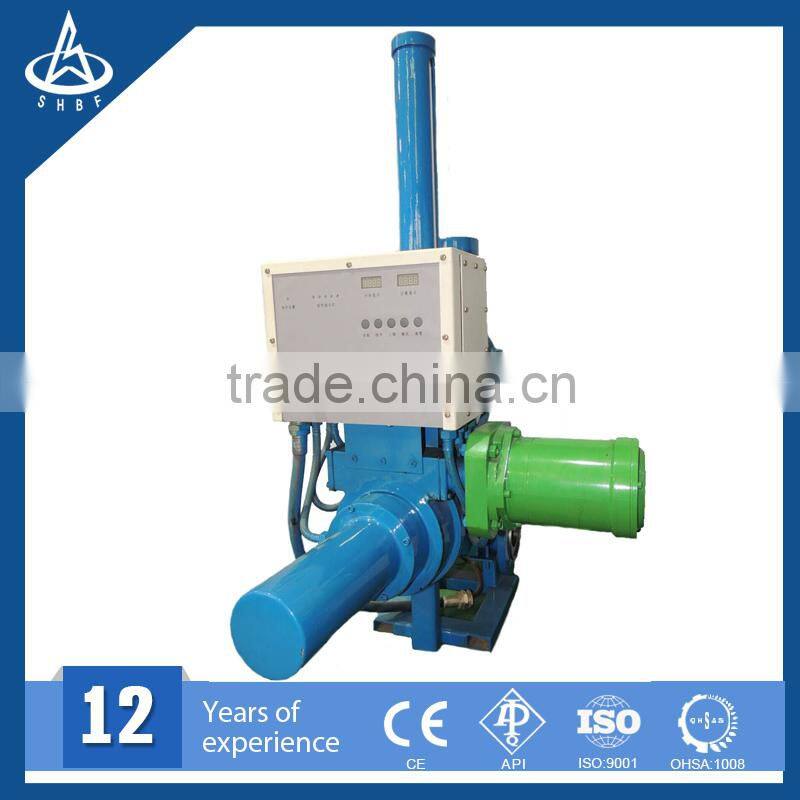

Automatic pitching balldevice
YQY-ASB50/4.0-Ⅲ type safe and environmental online intelligent ball device is used in wellhead gathering line. By the default program, realized the automatic online pitches, effectively purge the lines of wax and impurities, no manual operation, the device without heating at the same time, plus the ball does not need to vent pressure, save a large amount of manpower, safe environmental protection.
Basic parameter:
|
DN(mm) Nominal diameter |
50 |
|
|
PN(MPa) Nominal pressure |
4.0 |
|
|
Ps(MPa) Testing pressure |
Strength |
6.0 |
Sealing |
4.4 |
|
|
(MPa) Working pressure |
4.0 |
|
|
(℃) Operating temperature |
≤80 |
|
Motor Voltage |
AC380V |
|
Motor rated power |
0.55KW*2 Sets,25W*1 Set |
|
Ball barrel max storage capacity |
15 |
|
Applicable medium |
Water,crude oil and other fluids |
|
Applicable ball specification |
Φ35~Φ48 Oil resistant rubber ball |
|

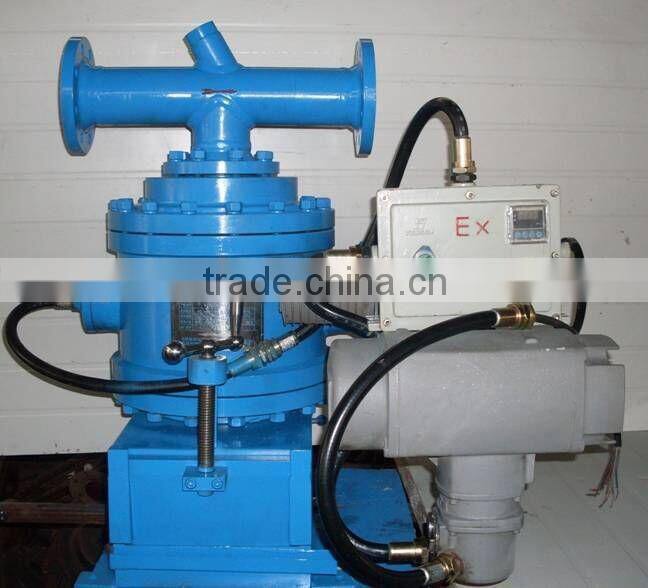

Automatic ball collecting device
YQY-ARB80/1.6 type Automatic ball collecting device is wildly used in the wellhead oil gathering pipeline, by default procedures of the ball collecting program, realized the automatically online receive the ball, no manual operation, save huge manpower and material resource. Safe and environmental protection, the heat tracing for adjustable constant temperature heating.
Basic parameter
Nominal diameterDN(mm) |
80 |
|
Nominal pressure PN(MPa) |
1.6 |
|
|
Ps(MPa) Test pressure |
Strength |
2.4 |
Sealing |
1.76 |
|
Working pressure(MPa) |
1.6 |
|
Medium temperature(℃) |
-40~80 |
|
Motor voltage |
AC380v |
|
Motor rated power |
0.37KW |
|
Storage barrel max storage |
35 pcs ball(φ48) |
|
Applicable medium |
Water,crude oil and other fluid |
|
Applicable ball specification |
Φ35~Φ48 Oil resistant rubber ball |
|
Please send me your requirment, then we could offer you the suitable style and competitive price.
