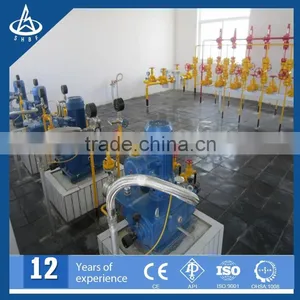

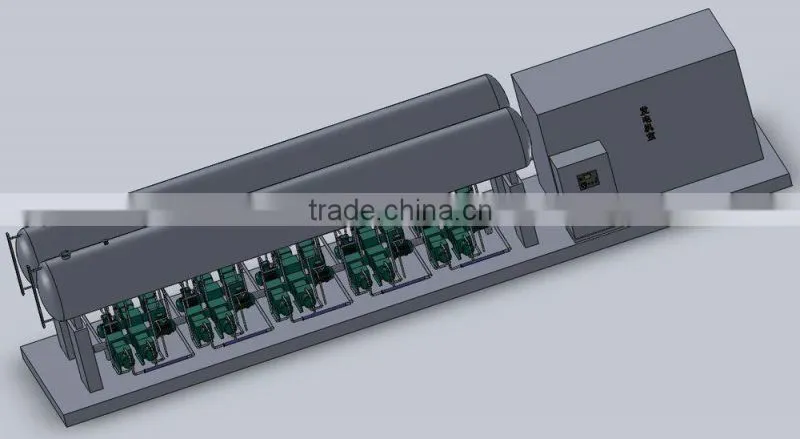

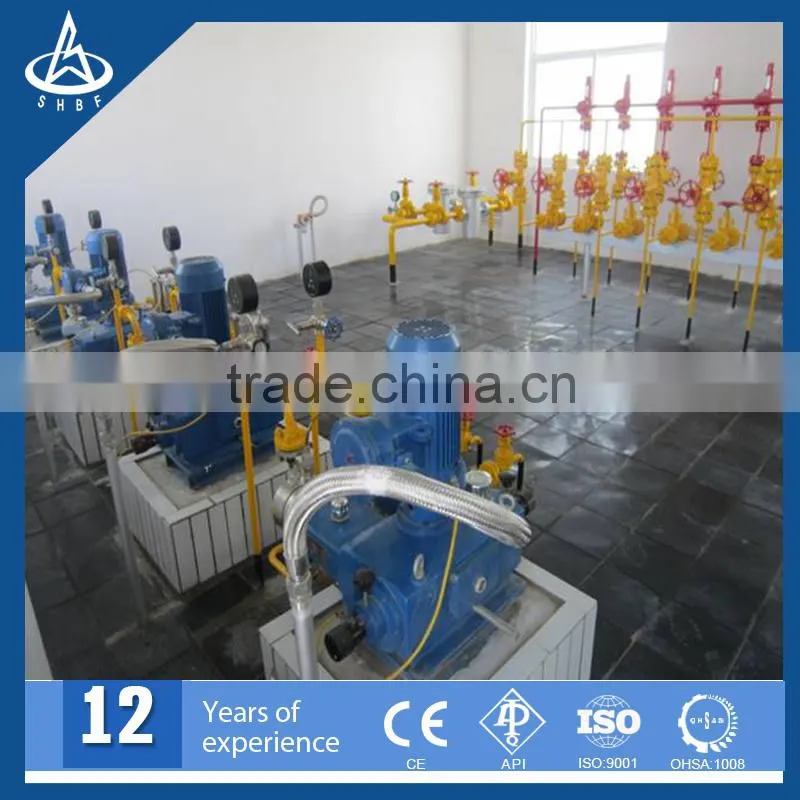

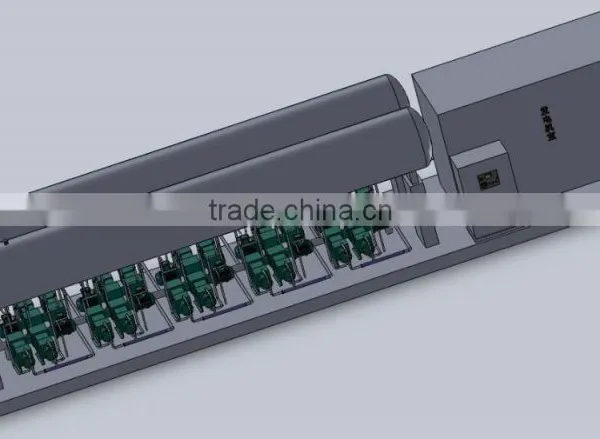

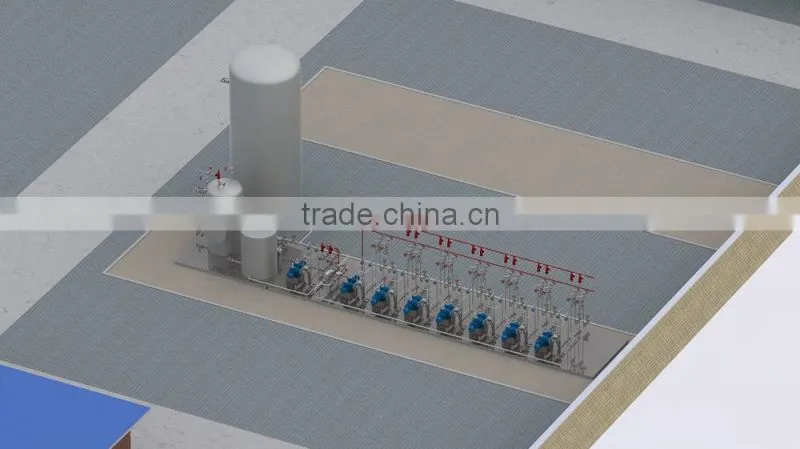

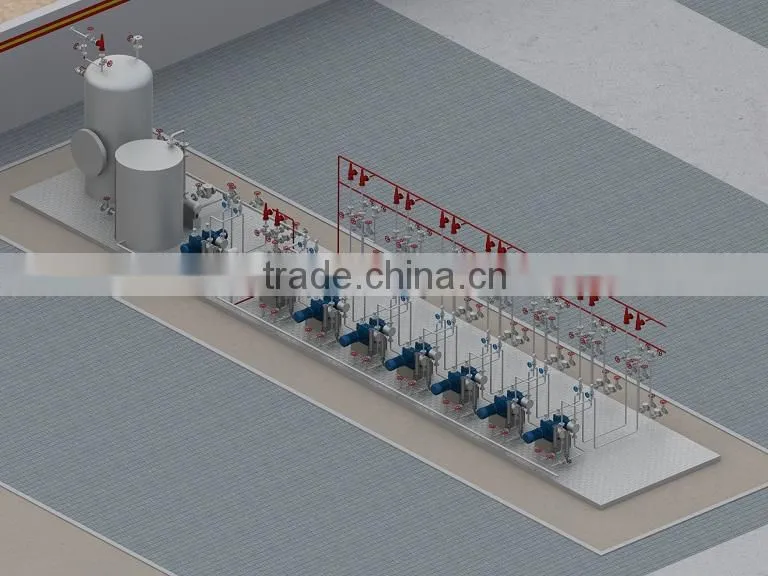

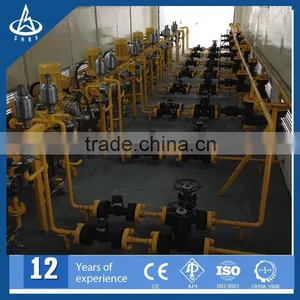

Skid mounted Alcohol injection integrated unit
Equipment function
Alcohol injection Integrated device, is mainly composed of corrosion inhibitor, defoaming agent tank, dosing pump, on-site alcohol injection single pump, wellhead injection alcohol double pump, corrosion inhibitor injection pump and filter, valves, etc. Mainly includes the wellsite to alcohol, on-site alcohol injection and injection defoaming agent, corrosion inhibitor, etc.
Technical parameter
No. |
Technical requirement |
|
|||||||
1 |
Medium |
Methyl Alcohol |
|||||||
2 |
Medium inlet temperature |
|
|||||||
|
Minimum |
-3℃ |
Normal |
20℃ |
Maximum |
40℃ |
|||
3 |
Inlet pressure |
|
|||||||
|
Minimum |
0.1MPa |
Normal |
0.3MPa |
Maximum |
0.5 MPa |
|||
4 |
Environment temperature |
|
|||||||
|
Minimum |
-23℃ |
Normal |
10.4℃ |
Maximum |
41.1℃ |
|||
5 |
Density in inlet condition |
791.4Kg/m3 |
Viscosity in inlet condition |
0.5852 Mpa |
|||||
6 |
Vapour pressure inlet condition |
0.031MPa |
The effective net positive suction hea |
10-50m |
|||||
7 |
The rated capacity |
100L/h Double end |
The rated exhaust pressure |
23MPa(G) |
Flow regulation |
Manual operation |
|||
Please send me your requirment, then we could offer you the suitable style and competitive price.
