Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line

Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-1
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-2
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-3
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-4
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-5
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line thumbnail-6
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-1
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-2
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-3
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-4
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-5
Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line photo-6
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PVC
Contact Supplier Request Quote Chat Now
Qingdao HUASU Machinery Fabricate Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PVC
Screw Design Double-screw
Automatic Grade Automatic
Place of Origin Shandong, China
Brand Name HUASU Machine
Model Number SBG250
Voltage 220-440V
Power(W) 100KW
Dimension(L*W*H) 20000*4000*3000mm
Weight 15000KGS
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line



Description of SBG250 UPVC Double Wall Corrugated Pipe Extrusion Line:



Diameter scope: (OD) Φ63mm-Φ250mm
Double wall corrugated pipe introduction
UPVC Double wall corrugated pipe material is UPVC. the design of structure is new and reasonable. Smooth inner layer and hollow corrugated outer layer composed. UPVC double wall corrugated pipes are one mould profile two layer extrudings. Applies to rain water drainage, sewage drainage in residential district, or pollutant and exhaust gas discharge as well as sewage drainage for mine industry, or organic pollutants drainage from people's life, agricultural drainage, low pressure irrigation and coalmine ventilation.It has many advantages, such as: good ability bearing external load, high strength, light weight, smooth inner wall, impact resistance, corrosion resistance, construction convenient, and low cost and so on. The pipe adopts socket expanding and seal ring connecting which prevents expanding from hot and shrinking from cold.

Plastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion LinePlastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion LinePlastic Drainage Pipe Machinery UPVC Double Wall Corrugated Pipe Extrusion Line
Double wall corrugated pipe line Features:

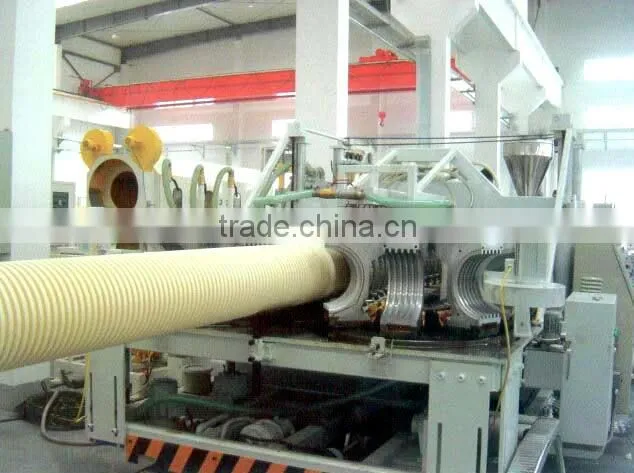

Double wall corrugated pipe has a variaty applicaion in the world at present. In order to meet the demand of plastic market, OUR Company designed and developed this SBG250 UPVC Double Wall Corrugated Pipe Extrusion Line by absorbing advanced technology from foreign countries plastic machinery industry. This UPVC Double Wall Corrugated Pipe Extrusion Line is the latest study achievement in the plastic in the plastic extrusion field. This extrusion line is suitable for the high speed extrusion of UPVC material. UPVC Double Wall Corrugated Pipe Extrusion Line adopts one conical twin screw extruder directly extruding and forming technology, human-machine interface control system. It makes high automation degree, reliable quality and stable production become true. And this Corrugated Pipe production line wins our home and abroad customers’ good reputation.
Extruder: High speed and efficiency conical twin screw extruder is specially designed for extrude PVC material, equipped with forced fixed-quantity feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system. This structure assures accurate controlling for the material temperature, plasticization stability and greatly improving corrugated pipe quality.

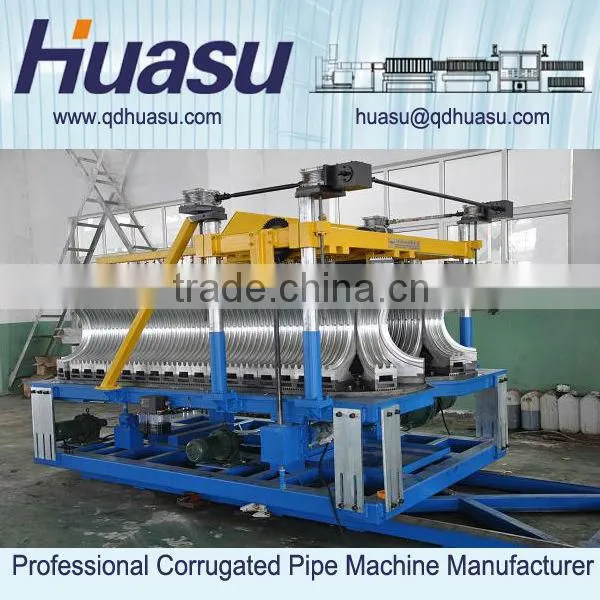

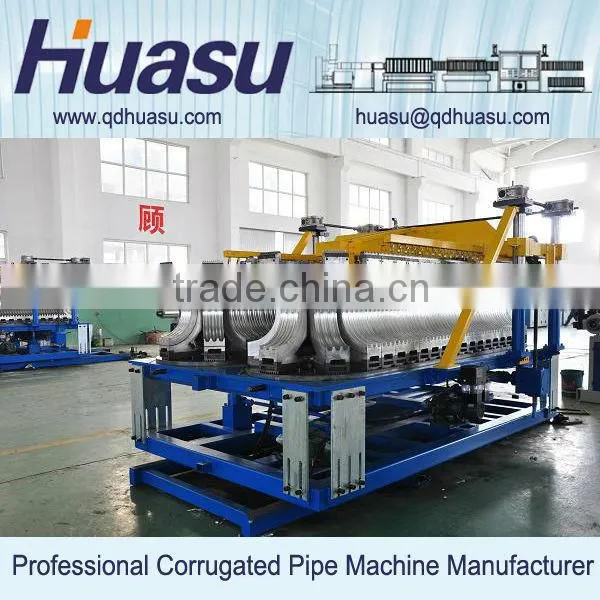

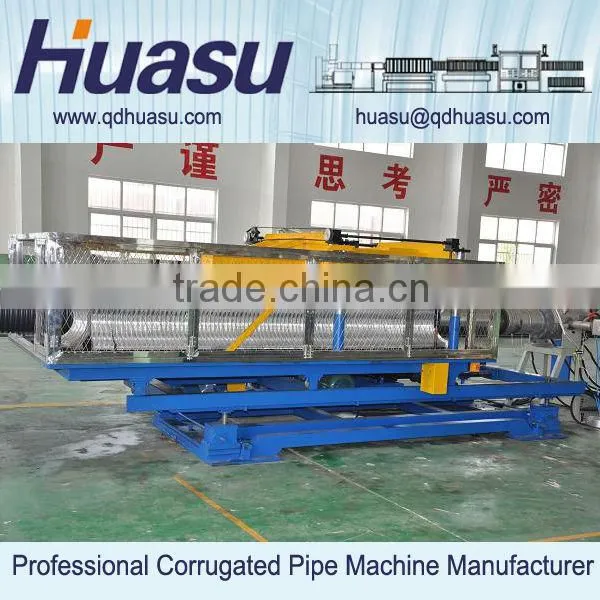

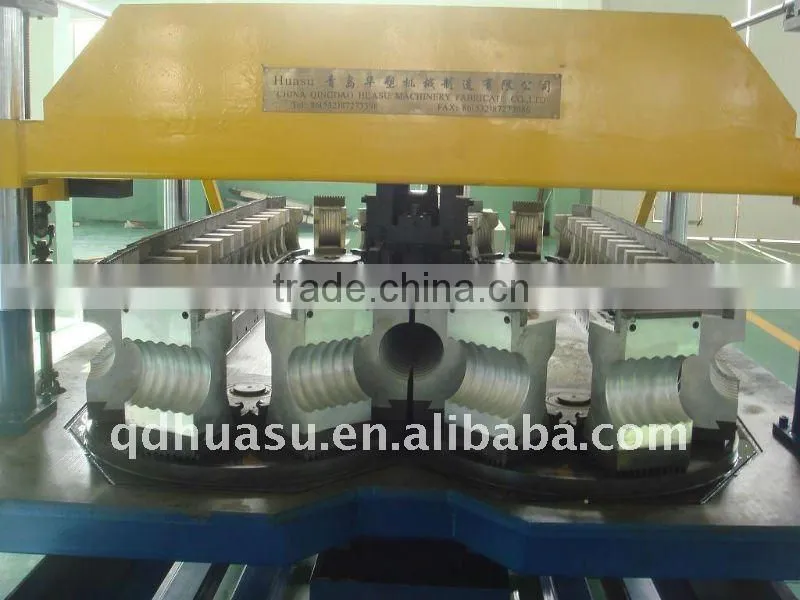

Corrugator: Corrugator is adopted horizontal structure with chain type transmission, equipped with open air cooling system. It greatly increases the production speed. Mold moving adopts advanced synchronous upper and lower mechanical drive system. It assures moving accuracy and plastic pipe quality stability. Advanced self-lubricating system makes the forming molds and mold plates abrasions minimize and greatly extend the service life.
Die head: it is composite die head and made of 40Cr, plating chrome and polishing. This die head makes the inner and outer layer wall thickness even and forming stability.
Cutting machine: Automatically cutting, effective cutting, high speed, low noise and dustless cutting and so on many advantages,.
Control system: This UPVC Double wall corrugated pipe production line adopts Siemens professional PLC control system, 15 "large color touch screen human-machine interface, high automation, reliable running, easy operation, remote communication function which can realize remote fault diagnosis and rule out the possibility.



Main Technical Parameter:







Name

Model

Dimension

(L×W×H)mm

Total Power(kw)

Weight (kg)

Extruder

SJSZ65

4300x15400x2465

70( max)

4500

Mould Blocks

( ID)

SBZG63

1400xφ250

16(max)

180

SBZG75

190

SBZG90

200

SBZG110

800

SBZG125

1600xφ370

900

SBZG145

SBZG160

SBZG200

1000

Corrugator

SBCJ200

3500x1750x1730

4(max)

4000

Cutter

QG200

2715x1000x1720

4

800

Belling Machine

SGK200

7800x1320x1900

10

3800
