Single Wall Corrugated Pipe Extrusion Machinery
BEST LEVEL Corrugated Pipe Machine Manufacturer
Features of plastic single-wall corrugated pipe
Plastic single-wall corrugated pipes produced have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc. This pipe has large market.
corrugated pipe extrusion machinery, single wall pipe machinery, plastic pipe extrusion machinery, pe pipe extrusion line , pvc pipe extrusion machine, plastic pipe production line
Single wall corrugated pipe extrusion line designed and developed by Qingdao HUASU Machinery Fabricate Co., Ltd adopt newest design concept, using well known brand electrical components, enhanced line stability; which can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes. This pipe extrusion machine adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.

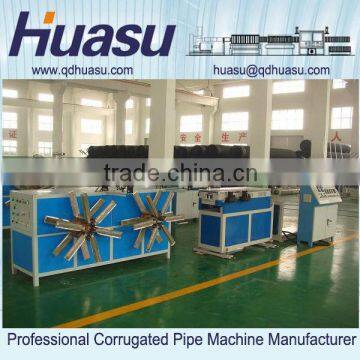

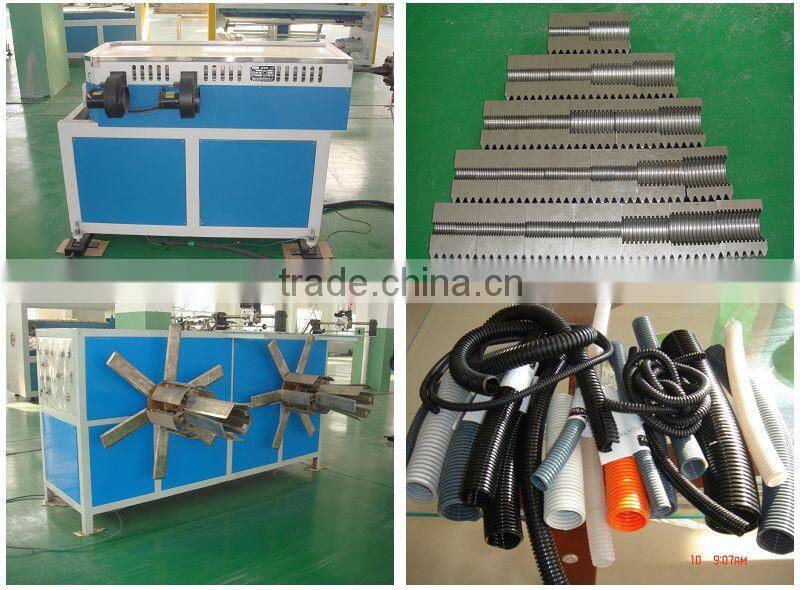

This corrugated pipe extrusion line mainly contains Extruder, Corrugated Forming Machine, Mold Blocks, Cooling Equipment, Counting Machine and Winding Machine. It can continuously produce many kinds of diameter single wall corrugated pipe.

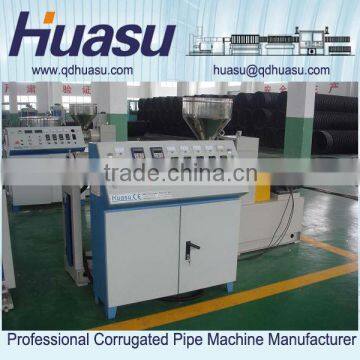

Extruder: It has high speed high efficiency screw, hard gear surface, FUJI invertor. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

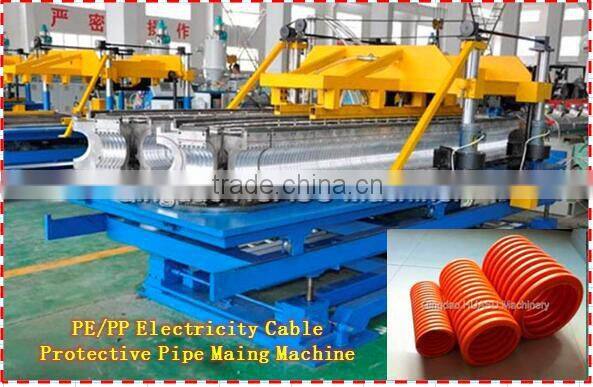

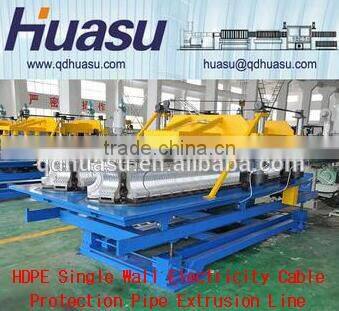

Corrugator: Close structure. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.
Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable
Winder: Moment motor, single/double station winder.
Main technical parameter:
Diameter Scope |
4.5-9 mm |
9-32 mm |
16-63 mm |
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
L/D |
30:1 |
28:1 |
30:1 |
Output kg/h (kg/h) |
10 |
40 |
80 |
Main Motor (KW) |
2.2 |
11 |
18.5 |
Corrugator Power (KW) |
1.1 |
1.5 |
2.2 |
Mould Block Pairs |
40 |
44 |
44 |
Cooling Type |
Water and air cooling |
||
Line Speed (m/min) |
8-16 |
6-12 |
6-12 |
Counting Type |
Sensing counting |
||
Winding Type |
Automatic/Manual |
||
NOTE:Just tell us what is your request, we believe our machine could meet your request!
You should just let us know:
1, The pipe material ?
2. The pipe Diameter ?
3,Corrugated pipe ( single wall or double wall) ?
4, Corrugated pipe or Spiral pipe?

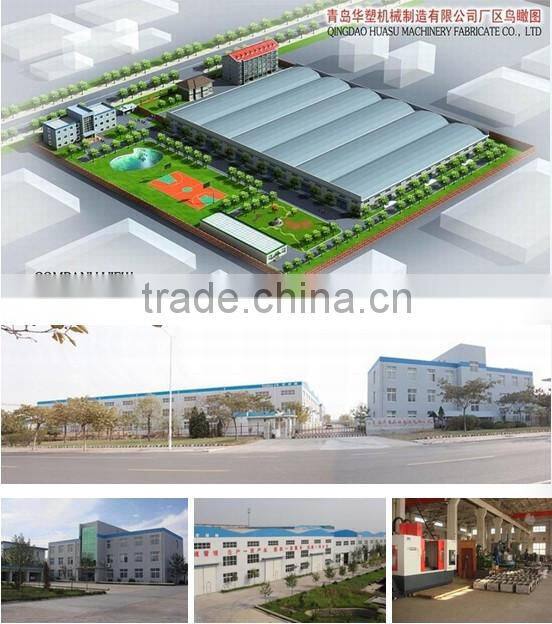

Qingdao HUASU Machinery Fabricate Co., Ltd is located in Jiaozhou Bay Industrial Zone of Jiaozhou in Qingdao City, and it is only 30 kilometers away from Qingdao Airport. It has very strong technical support and innovating ability. With advanced technology, new material and mature technological process, the company can produce various kinds of plastic extrusion lines. The machines have been exported to European Countries, Russia, South America, Middle East, Southeast Asia, Oceania and Africa countries, etc.
| Packaging & Delivery | |
| Size | 40GP Container |
| Packaging Details |
Plastic film and wooden package. The packing is suitable for ocean transport. |
Equipment Installation
After the machine reaches the buyer's country,seller will send engineer to the buyer’s factory in 15days to help install the machine line,and train the workers.
Equipment Warranty
Our company would like to promise the good quality with 12months.During the warranty,no purposely and artificially damage,we will maintain or replace for free.After the warranty,if buyer need to replace the worn part,only pay the cost price, lifetime supply.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 50-60 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: T/T
