1. Descriptions



Product Description



AT2816B adopts true-color TFT-LCD and English operation interface (Chinese also available). Menu softkey board operation & digital keypad.6 dgt display with the maximum speed of 30 times/second. IT can not only scan 10 groups frequency or voltage level list, but also correct 3 groups of user frequency so as to improve the accuracy.



Equipped with automatic 14-bin sorting interface and RS-232C interface.

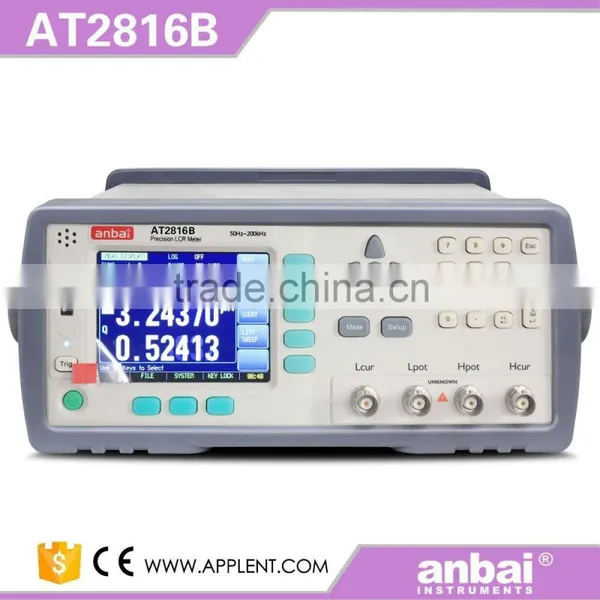

AT2816B Digital LCR Meter

SPECIFICATIONS

Parameters

Cs-Rs, Cs-D, Cp-Rp, Cp-D,Lp-Rp, Lp-Q,Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θdeg

Monitor Parameters

Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%

Accuracy

0.1% ±5 dgt



Frequency

50Hz - 200kHz (37 kinds frequency)



Display Range

L: 0.00001μH-999999H

C: 0.00001pF - 999999μF

R,Z:  0.00001 - 99.9999MΩ

D: 0.00001 - 9.99999

Q: 0.00001 - 99999.9

θ(deg): -179.999 °-179.999 °

θ(rad): -3.14159 – 3.14159

Δ%: -999999% - 999999%

Source Resistance

30Ω, 50Ω, 100Ω

Range

9 ranges,  Automatic, Manual, Nominal

Max Reading

6 dgt, principle parameter: 999999;

sub parameter: 999999; monitor parameter: 999999

Signal Source

0.01V - 2.00V (10mV Step)

Speed

30 times/second, 10 times/second,

6 times/second, 3 times/second 1-256 times average is available

Comparator

14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX,

2-bin principle parameter NG

Count function: Max - 999999

List Scanning

10 groups frequency and level scanning test

Adjustment

Open/Short frequency reset, 3 point frequency and load correction

Files

10 group files to save users' setting, 1 group to save system data real-time

Interface

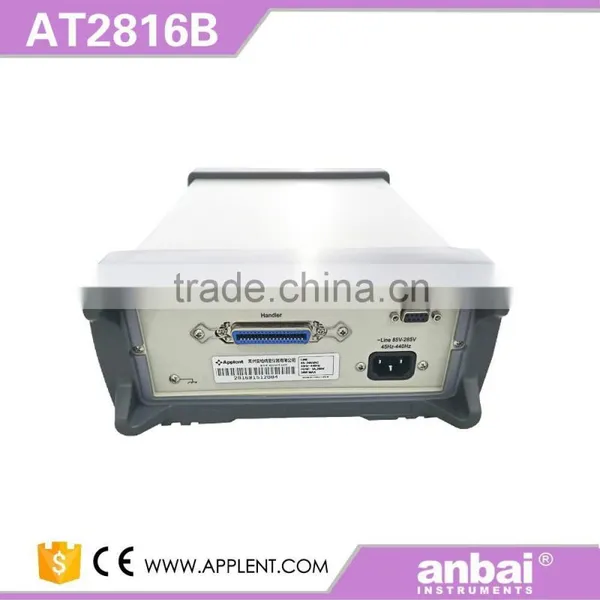

RS232C, ExHandler Interface, with standard USB disc interface (article 10000 data)

Others

LCR automatic select, keypad lock,

SCPI instruction set, true-color TFT-LCD display

GENERAL FEATURES

Power Supply

Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Power: Max 20VA

Dimension & Weight

264mm(Width)x107mm(Height)x350 mm(Depth); 4kg

ORDERING INFORMATION

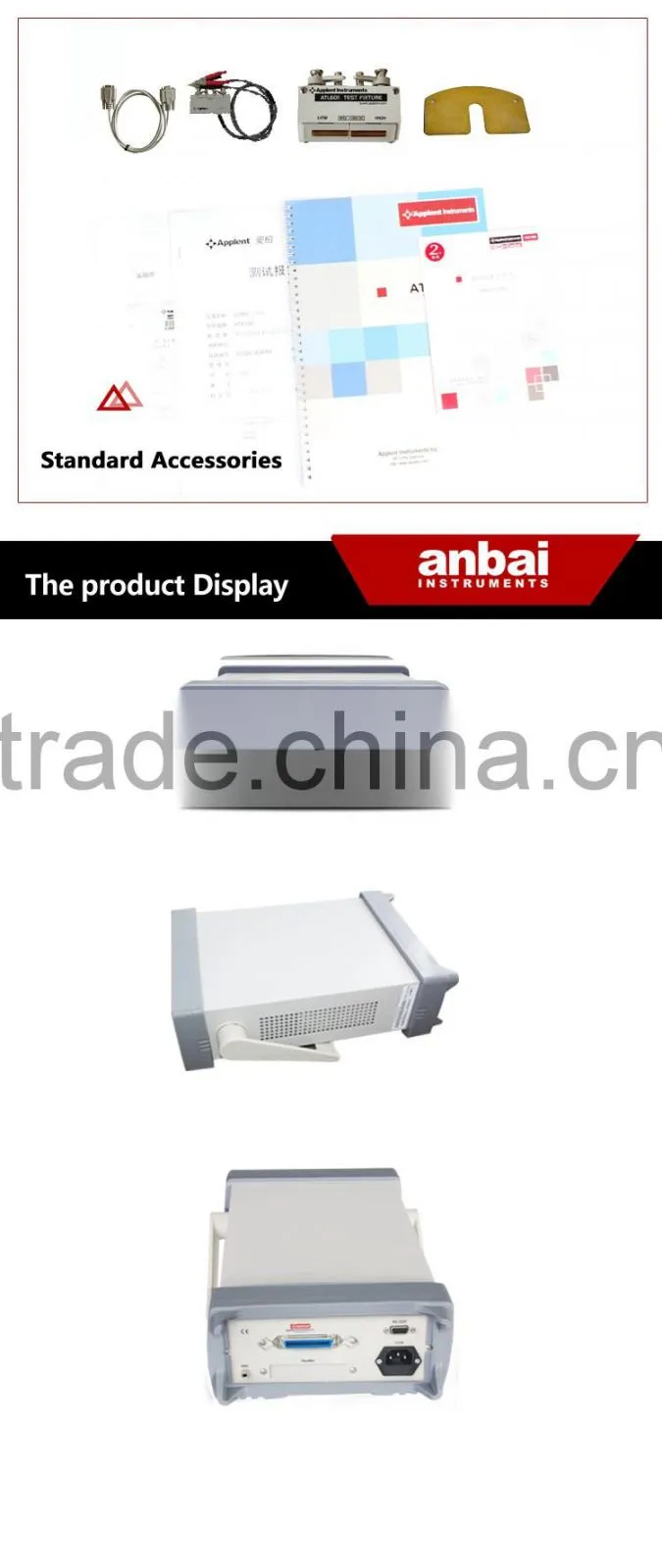

Accessories

ATL501: Test cable

ATL601: Test Fixture

ATL600: Short-circuit device

ATL108: 232 Communication cable

Optional Accessories

ATL608 SMD patch clamp

ATL508: SMD patch test clip

ATS2816: Data acquisition software

ATL508A: SMD patch test clip
