1. Descriptions

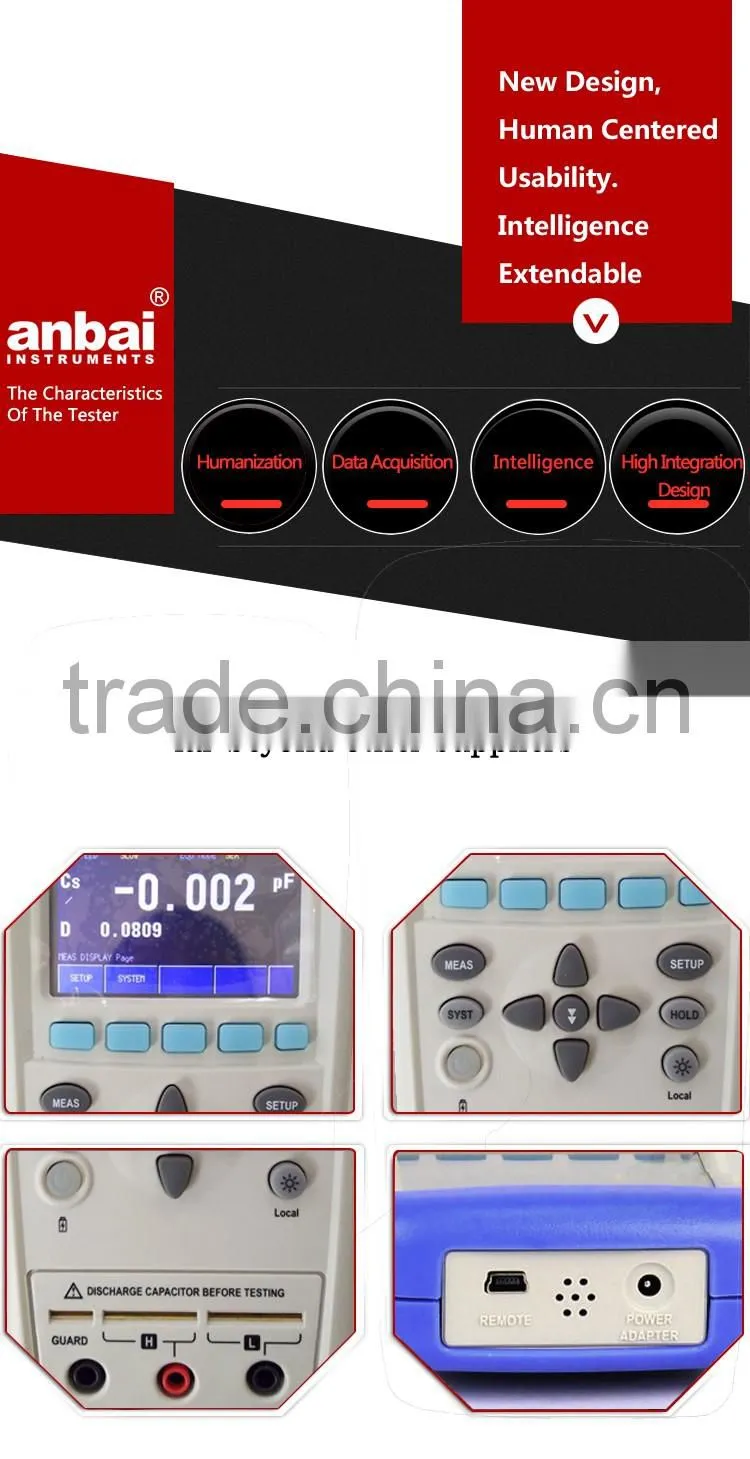

AT826, 825, 824 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration.
With the highest frequency of 100Khz, constant 100Ω source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld.

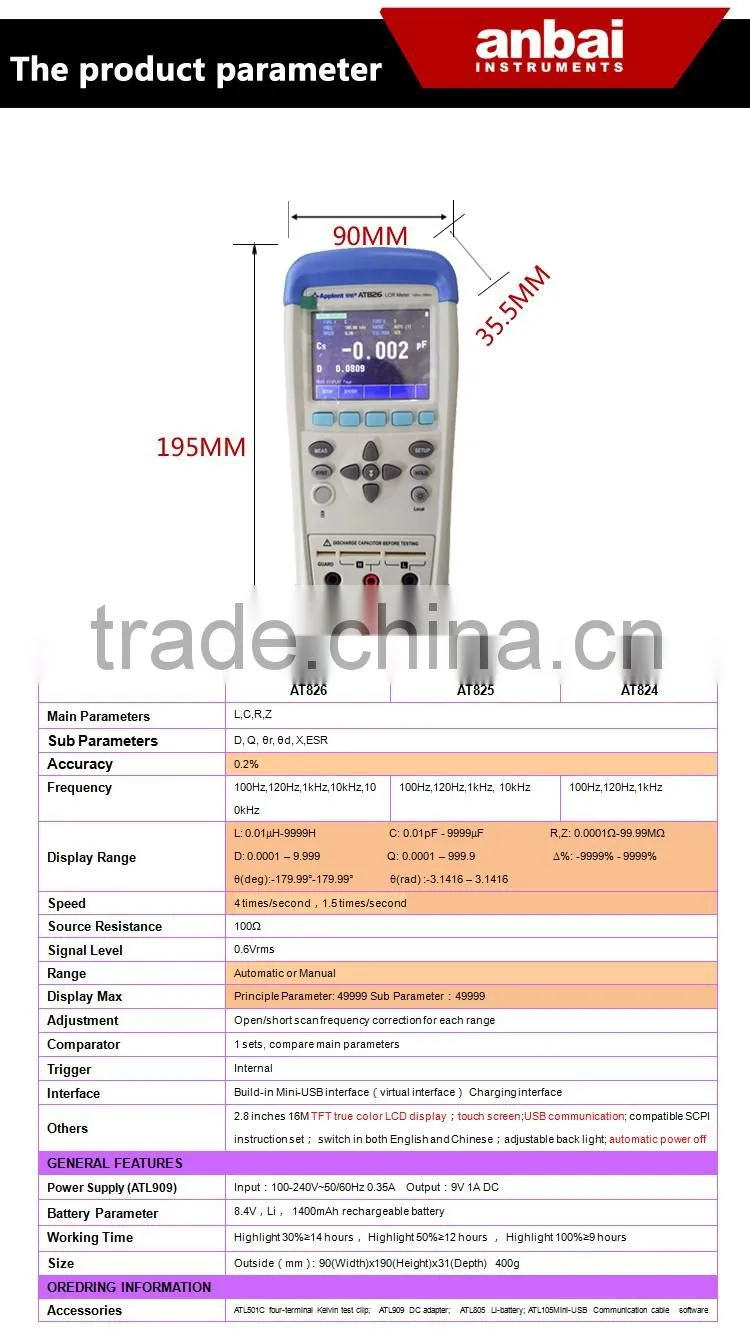

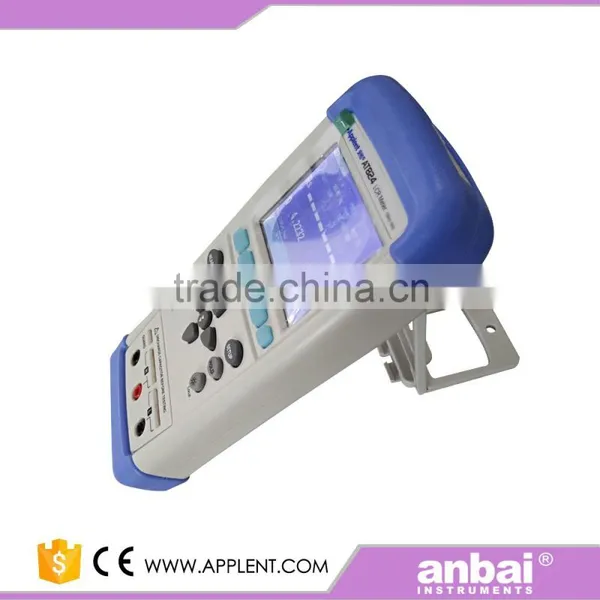

AT824 Handheld LCR Meter | |
SPECIFICATIONS | |
Parameters |
L, C, R, Z |
Monitoring |
D, Q, θr, θd, X, ESR |
Accuracy |
0.2% |
Frequency |
100Hz, 120Hz, 1kHz |
Display Range |
L: 0.01μH-9999H C: 0.01pF - 9999μF R,Z: 0.0001Ω - 99.99MΩ D: 0.0001 - 9.999 Q: 0.0001 - 999.9 θ(deg): -179.99° -179.99° θ(rad): -3.1416– 3.1416 Δ%: -9999% - 9999% |
Source Resistance |
100Ω |
Range |
Automatic and manual |
Max Reading |
Main parameters: 49999 Sub parameters: 49999 |
Signal Level |
0.6Vrms |
Speed |
4 times/second, 1.5 times/second |
Comparator |
One group record, main parameters compare |
Correction |
Open and short, sweep frequency |
Interface |
Build-in Mini-USB interface (virtual serial), charging interface |
Others |

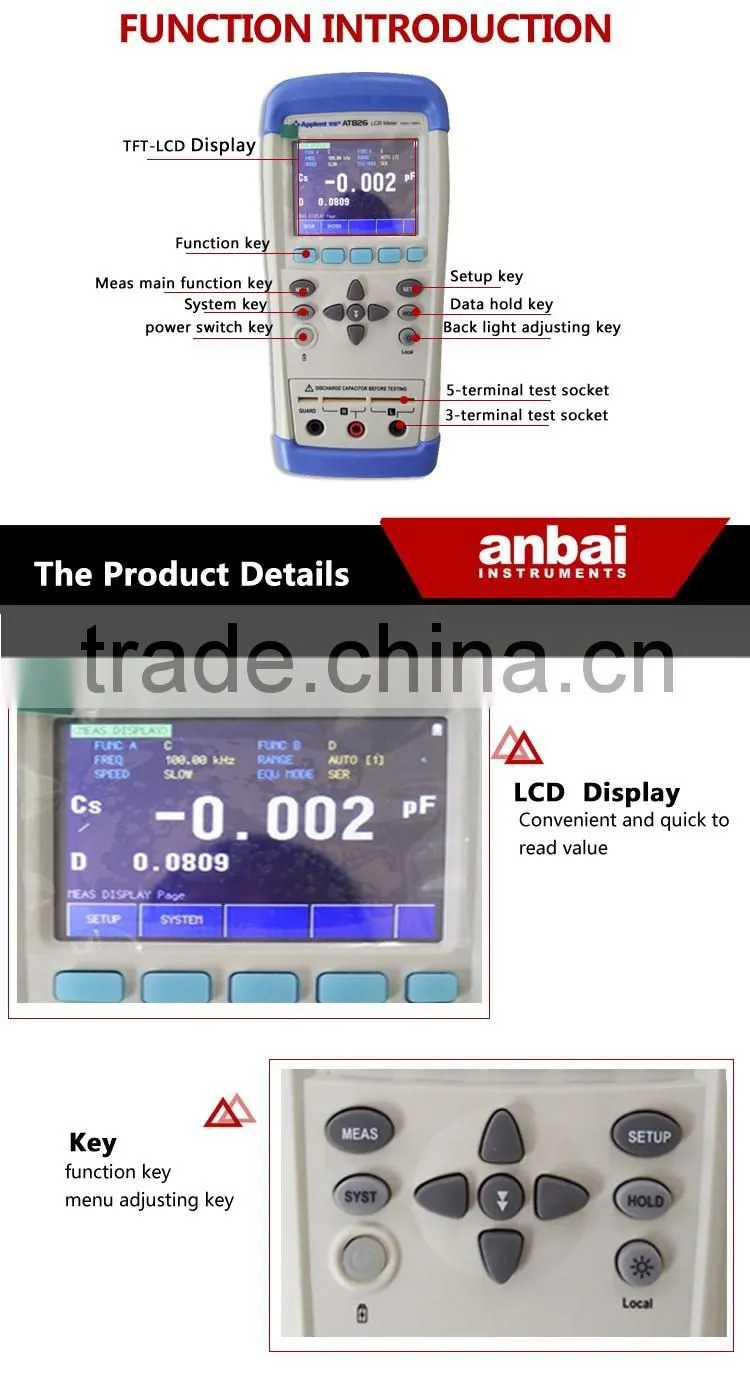

2.8 inches truecolor 16M TFT-LCD display, keypad lock and data hold function, USB communication, compatible SCPI order set; Switch in both English and Chinese, adjustable back light, automatic power off |
GENERAL FEATURES | |
Adapter |
Input: 100 – 240 V 50/60Hz 0.35A Output: 9V 1A DC |
Battery parameters |
8.4V, Li, 1400mAh rechargeable battery, |
Charging Time |
single continuous charging time: Max 200Min |
Working Time |
Light 30%, over 14 hours, Light 50% over 12 hours, light 100%, over 9 hours |
Dimension & Weight |
90 (width)*190 (height)*31(depth) mm, Gross Weight: 400g |
ORDING INFORMATION | |

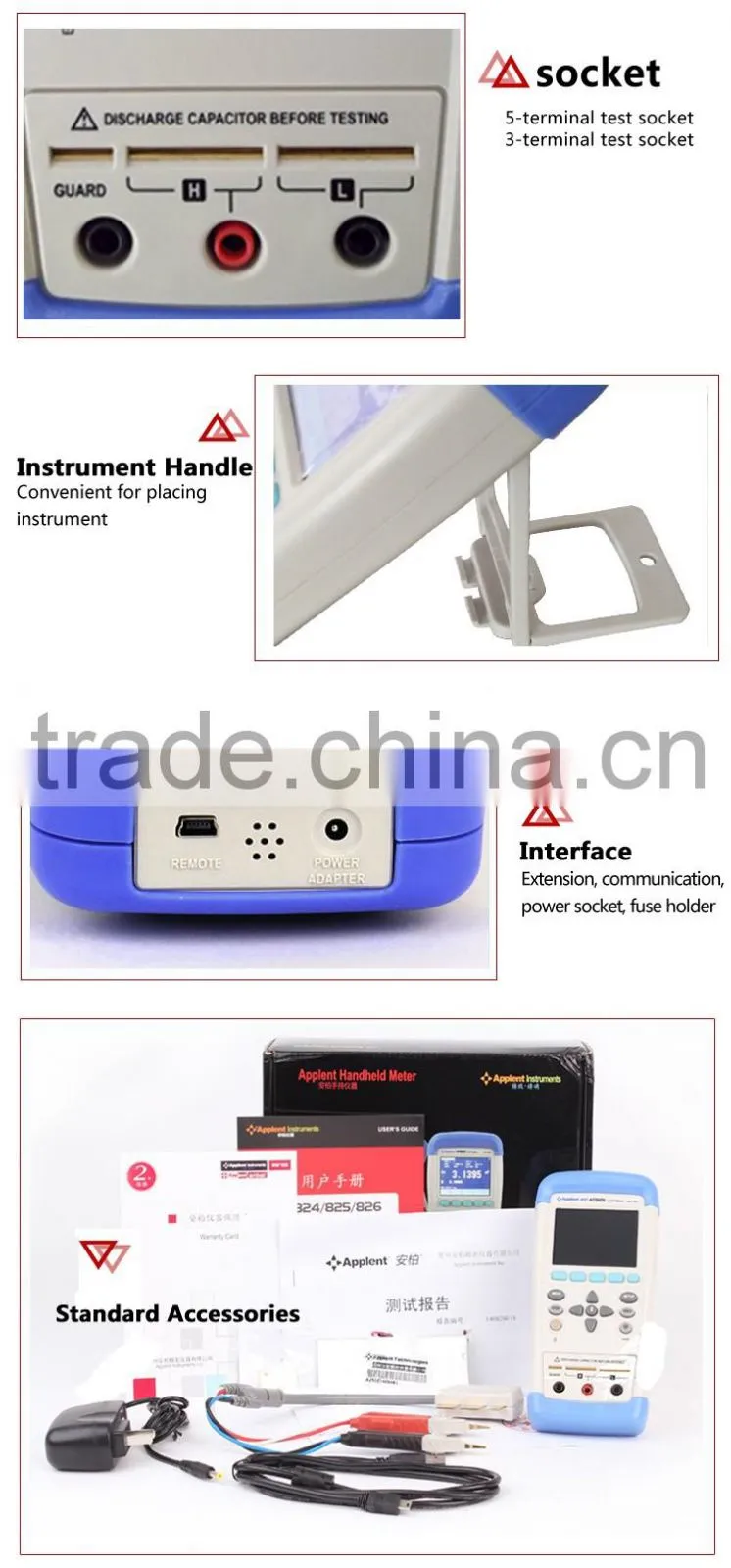

Accessories |
ATL501C: Four-terminal Kelvin Clips ATL909: DC Adapter ATL600A: Short-circuit slice ATL203: Carrying Case ATL805: Li battery ATL105Mini-USB communication cable *ATS826: Data Acquisition Software |

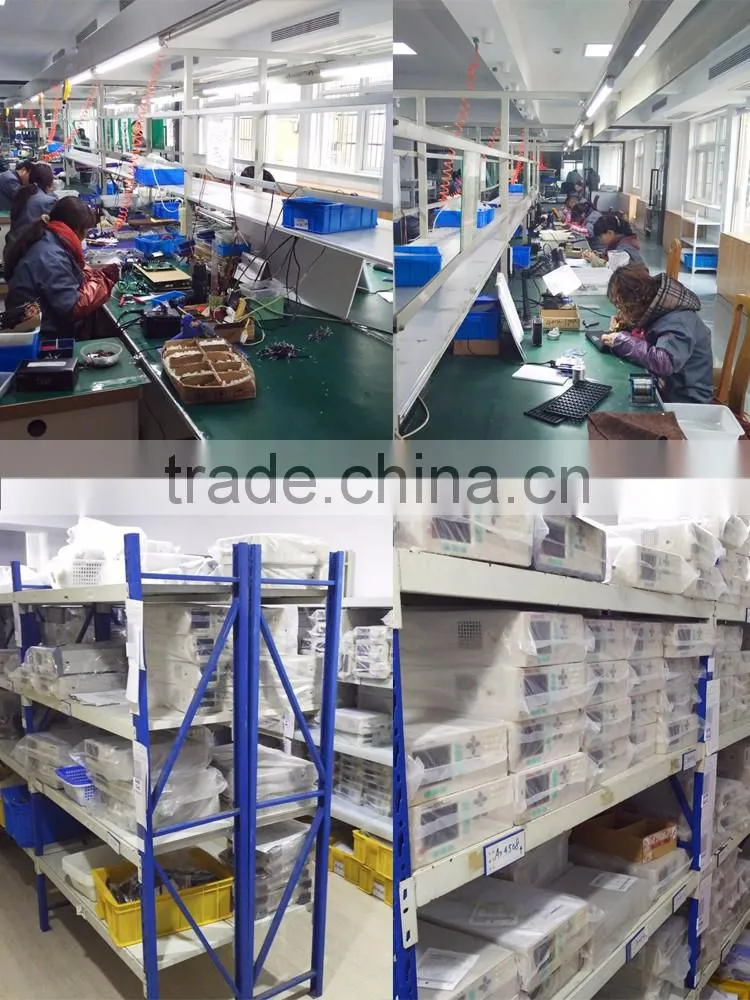

Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.
The main advantages:
A we have strong technical team and focus on designing,researching and developing
B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
OEM Available
We are looking for distributors and agents from all over the world.
We support Trade Assurance.
Welcome to contact:
Tel: +86 0519-88805550
QQ: 2541966918
Skype: applent_instruments
TradeManager: cn1001223788
