1. Descriptions

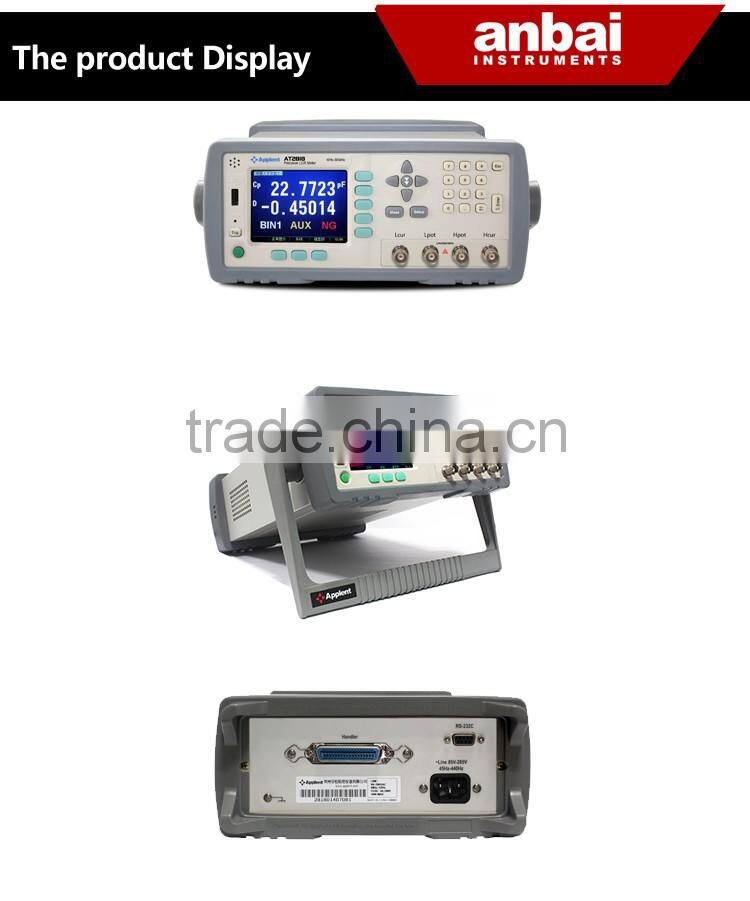

AT2818 adopts true-color TFT-LCD and English operation interface (Chinese also available). AT2818 (Rev B2.0) has been upgraded into continuous frequency with the resolution of 0.001Hz.
Four parameters can be measured at the same time by AT2818, any parameter can be set arbitrarily. Both main & sub parameters can be displayed in 6 dgt after the improvement. AT2818 can not only scan 10 kinds of frequency or voltage level, but also correct three group of user frequency so as to improve the accuracy.
AT2818 Precision LCR Meter | |
SPECIFICATIONS | |
Parameters |
Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg |
Monitor Parameters |
Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
Basic Accuracy |
0.05% ± 5 dgt |
Frequency |
10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz) |
Display Range |
L: 0.00001μH-999999H C: 0.00001pF - 999999μF R,Z: 0.00001Ω - 99.9999MΩW D: 0.00001 - 9.99999 Q: 0.00001 - 99999.9 Θ(deg): -179.999 ° -179.999 °° Θ(rad) : -3.14159 – 3.14159 Δ%: -999999% - 999999% |
Source Resistance |
30Ω, 50Ω, 100Ω |
Range |
Automatic, Manual, and nominal, 9 ranges |
Max Reading |
6 digital principle parameter: 999999; sub parameter:999999; monitor parameter: 999999 |
Signal Level |
0.01V - 2.00V (10mV Step) |
Speed |
30 times/second, 10 times/second, 6 times/second, 3 times/second 1-256 times average is available |
Comparator |
14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG; Count Function: Max - 999999 |
List Scanning |
10 group frequency and level scanning measurement |
Adjustment |
Open & Short circuit sweep frequency reset, 3 point frequency reset and load calibration. |
Files |
10 group files to save user's setting, 1 group to save system data real-time |
Interface |
RS232C, ExHandler interface, standard configuration USB Disc interface (article 10000 data) |
Others |

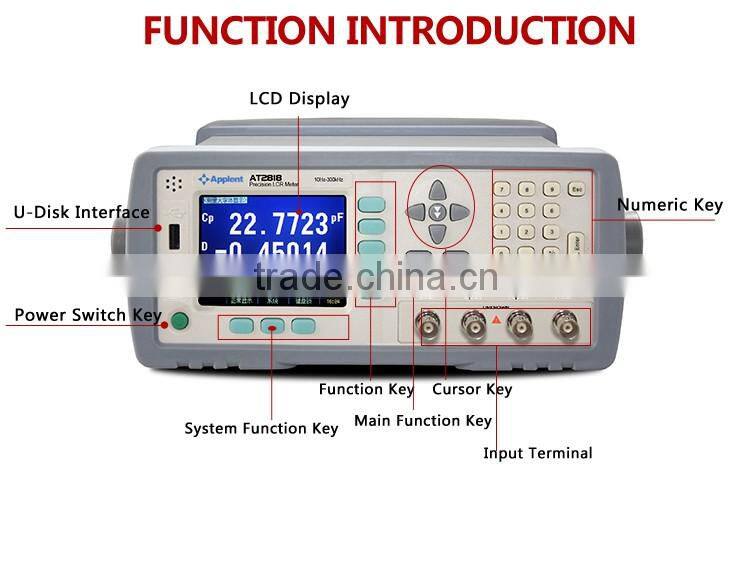

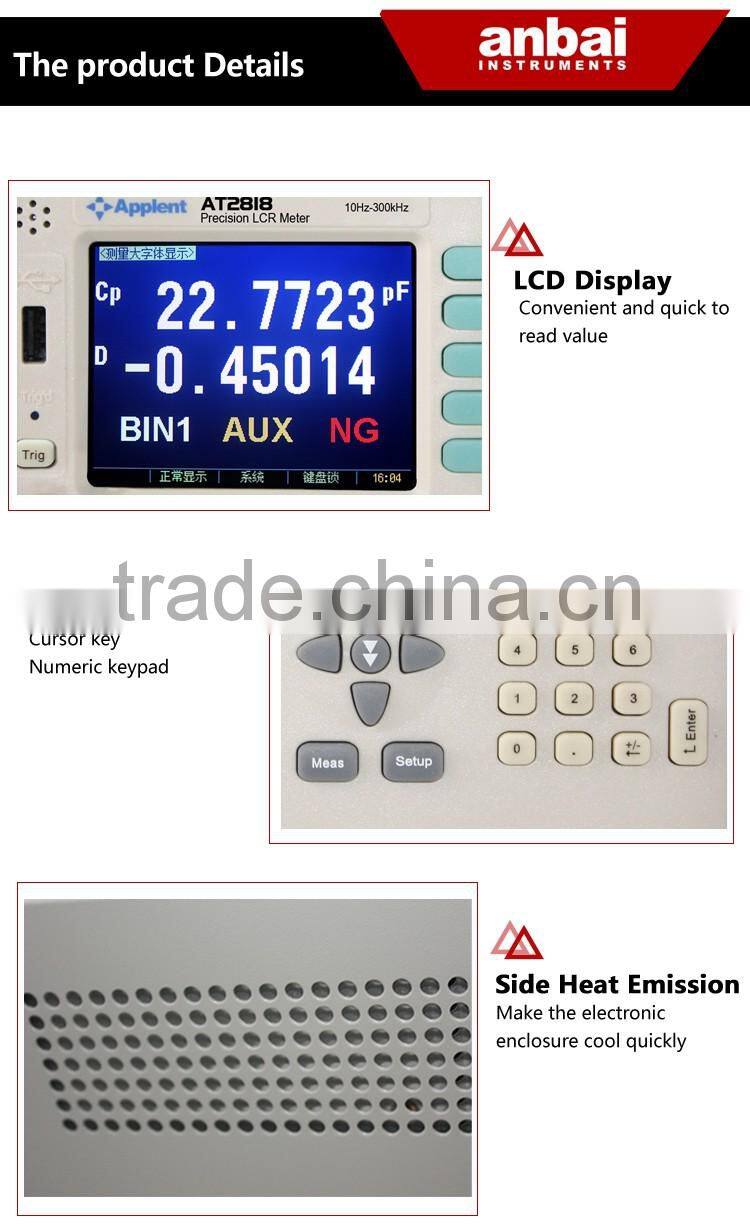

LCR Automatic selection, keypad lock, SCPI instruction set, true-color TFT-LCD Display |
GENERAL FEATURES | |
Power Supply |
Voltage: 90V AC-250V AC Frequency: 50Hz-60Hz Max Power: 20VA |
Dimension & Weight |
264mm (width)x107mm(height)x350mm(depth) 4kg |
ORDERING INFORMATION | |

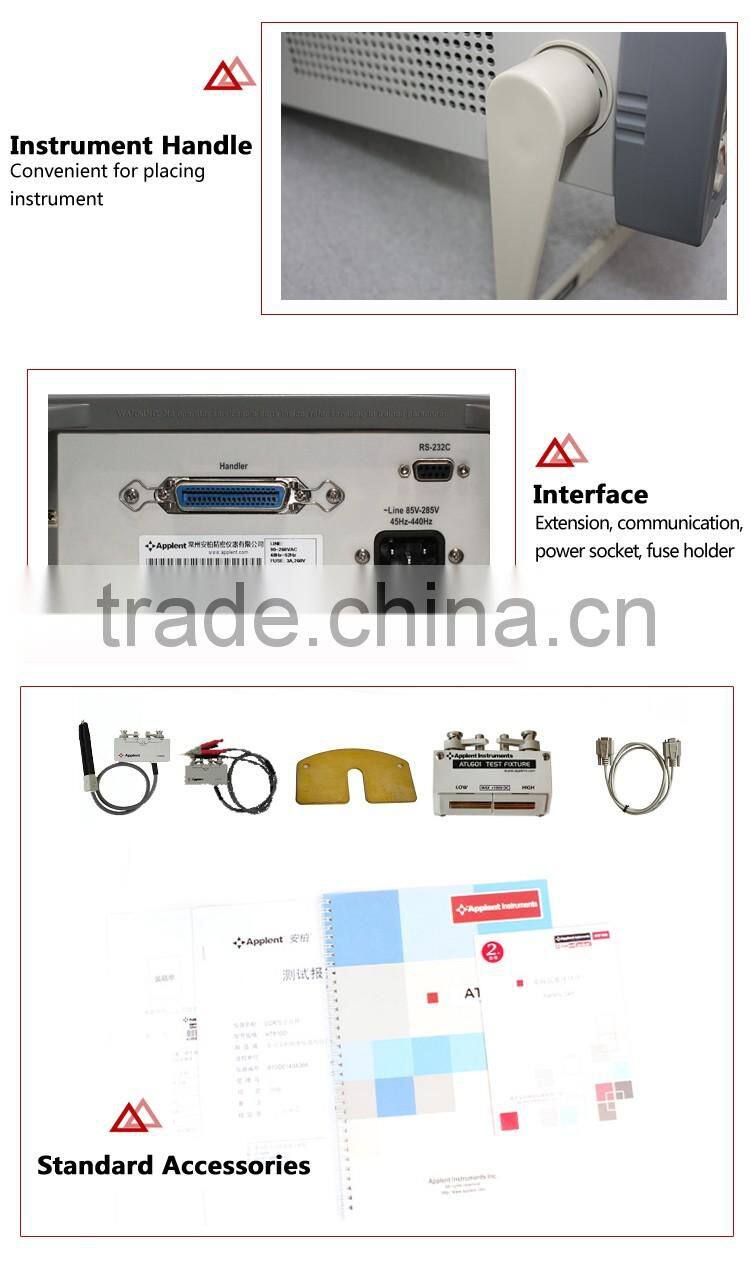

Accessories |
ATL501: Test cable ATL601: Test Fixture ATL600: Short-circuit device ATL108: 232 Communication cable |
Optional Accessories |
ATL608 SMD patch clamp ATL508: SMD patch test clip ATS2818: Data acquisition software ATL508A: SMD patch test clip |
2. Company Profile and the main advantages
Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.
The main advantages:
A we have strong technical team and focus on designing,researching and developing
B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc
C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
3. The distribution of export markets and major customers
Our customers
OEM Available
We are looking for distributors and agents from all over the world.
We support Trade Assurance.
Welcome to contact:
Tel: +86 0519-88805550
QQ: 2541966918
Skype: applent_instruments
TradeManager: cn1001223788
