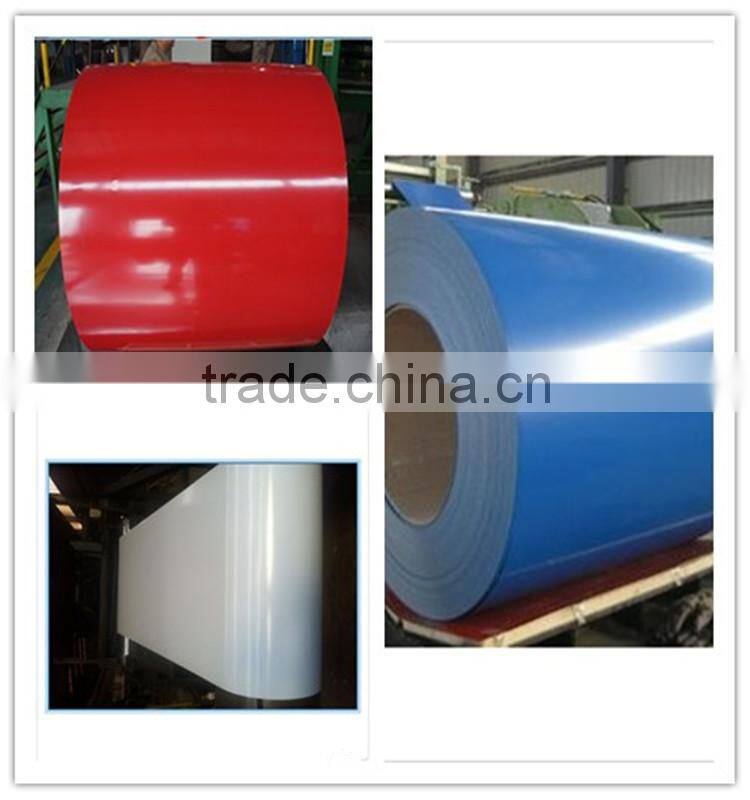

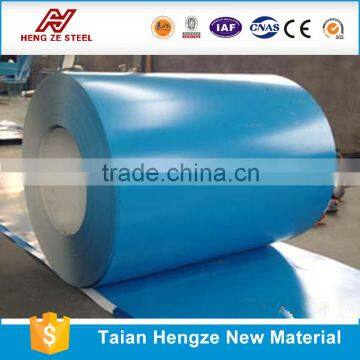

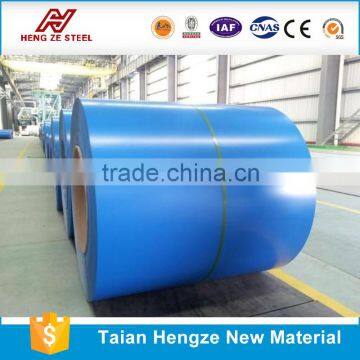

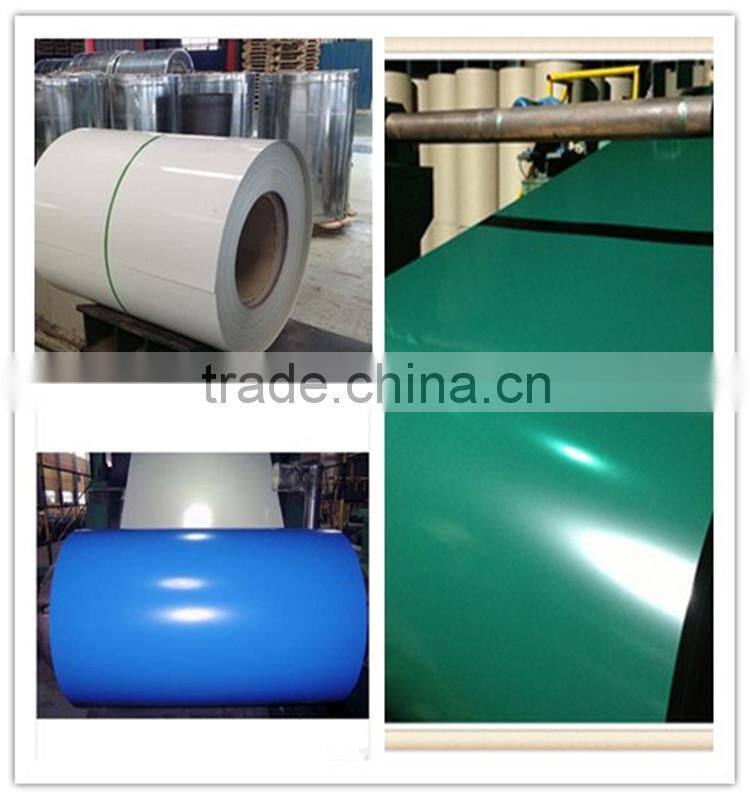

PPGI Color Coated Steel Sheet in Coil
With the sophisticated equipment, you can get the best quality with most competitiveprice PPGI as below.
1.Description & Specification:
Thickness |
0.14mm-1.2mm |
Width |
600mm-1250mm |
Single weight |
Max 6.0MT |
Zinc thickness |
30-275g/m2 |
Steel gardes |
TDC51D2,TDC51D+AZ,TDC51D, GR.A, GR. B, SPCC, SPHC, DX51D, ect. |
Standard |
JIS G3302, JIS G3313, ASTM A653, GB/T2518-88, GB11253-89,, BS, ect. |
Packing |
Wrapped by plastic film and waterproof paper, and then fastened on wooden pallet.Or as you request. |
Used |
Used in building material, roof, profile,pipe making, furniture making, etc. |
Minimum quantity |
Can be 25MT |
Price |
FOB Tianjin Port or Qingdao Port 600-950USD/MT |
Delivery time |
within 25 days after receiving 30% deposit or copy of LC at sight |
Payment terms |
T/T or L/C |
Supply ability |
10,000 MT per month |
2.Material Composition Sheet:
|
Steel Grade |
Chemical Composition (%) |
Mechanic Property |
C.B of Coating |
Coating |
||||||
C |
Si |
Mn |
S |
P |
T.S |
Y.S |
E.L |
|
|
|
x103 |
x103 |
x102 |
x103 |
x103 |
Mpa |
Mpa |
% |
D=0 180° |
G/M² |
|
JIS G3302 SGCC |
12 |
30 |
41 |
31 |
21 |
480 |
300 |
13 |
OK |
Z60-150 |
JIS G3302 SGCH |
12 |
10 |
21 |
18 |
8 |
680 |
650 |
|
OK |
Z60-150 |
ASTM A653 CS.B |
20 |
30 |
60 |
35 |
30 |
386 |
205-380 |
20 |
OK |
Z60-275 |
DX51D+Z |
29 |
21 |
18 |
1.8 |
11 |
355 |
245 |
38 |
OK |
Z60-275 |
G550 |
20 |
6 |
73 |
5 |
17 |
715 |
654 |
8 |
OK |
Z60-275 |
3.Painting:
Category of Painting |
Item |
Code |
|
Polyester |
PE |
||
High-durability polyester |
HDP |
||
Silicon modified polyesters |
SMP |
||
Polyvinylidene fluoride |
PVDF |
||
Easy-Cleaning |
— |
||
Painting Thickness |
Top side: 20+5microns; |
||
Bottom side: 5~7microns. | |||
Color System |
Produce according to RAL Color System or as per buyer’s color sample. |
||
Painting structure |
Top surface |
Bottom surface |
|
Primer coating |
No coating |
1/0 |
|
Primer coating |
Primer coating |
1/1 |
|
Primer coating + Finish coating |
No coating |
2/0 |
|
Primer coating + Finish coating |
Primer coating or single back coating |
2/1 |
|
Primer coating + Finish coating |
Primer coating + Finish back coating |
2/2 |
|
4.Application:
1. Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.
2. Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.
3. Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4. Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc
5.Advantage:
1. Excellent corrosion resistance: The zinc layer provides a good protection of Pre-painted Galvanizeed Steel Sheet.
2. High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted. The thermal reflectivity converts into energy savings.
3. Aesthetics: Pre-Painted Galvanized steel sheet is available in plethora of patterns and multiple sizes as per the requirements that given by our customers.
4. Versatility: can be used in the various areas.

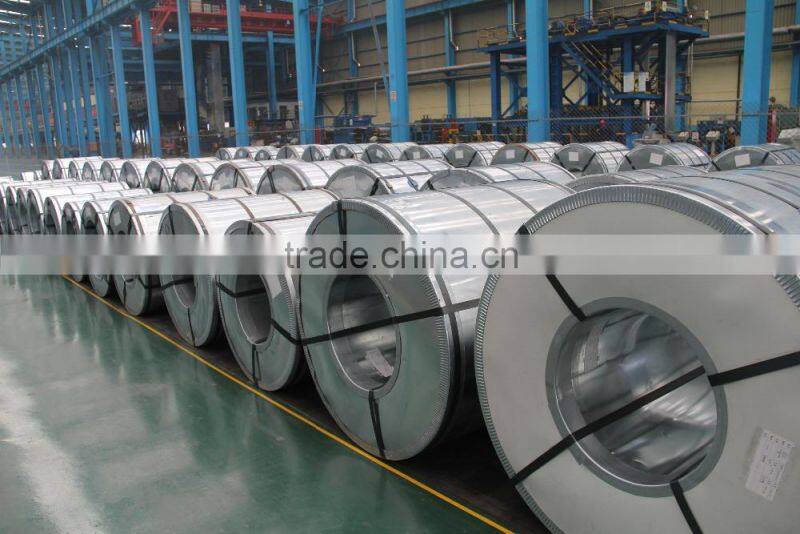

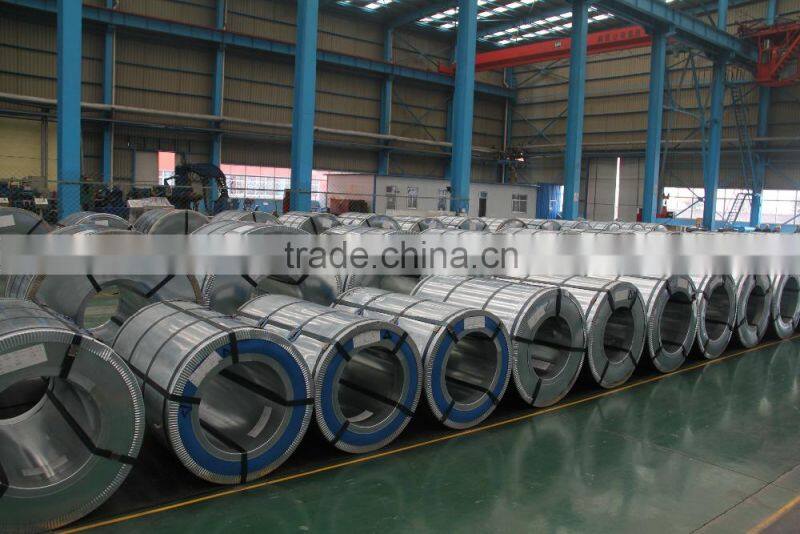

6.Packaging&Shipping
standard and seaworthy packing (waterproof paper + polyethylene rush inhibitor ,the antirust paper , the ring of defendse on inside and outside, steel belt , and the guard plate .)for corrugated steel sheet.
(1)4 eye bands and 4 circumferential bands in steel;
(2)glvanized metal fluted rings on inner and outer edges;
(3)galvanized metal & waterproof paper wall protection disk;
(4)galvanized metal & waterproof paper around circumference and bore protection
8.Questions&Answers
Click "send" now!
