Place of Origin Guangdong, China
Brand Name Aoshidi
Model Number P1B72-AHD
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Other, Night Vision Camera
Product Description

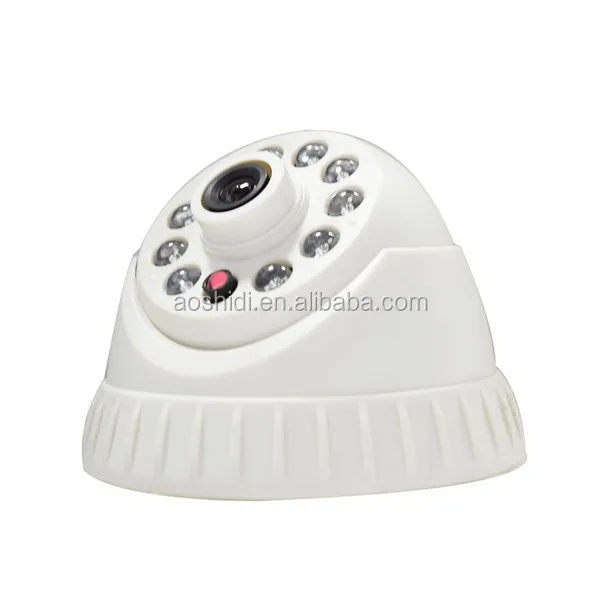

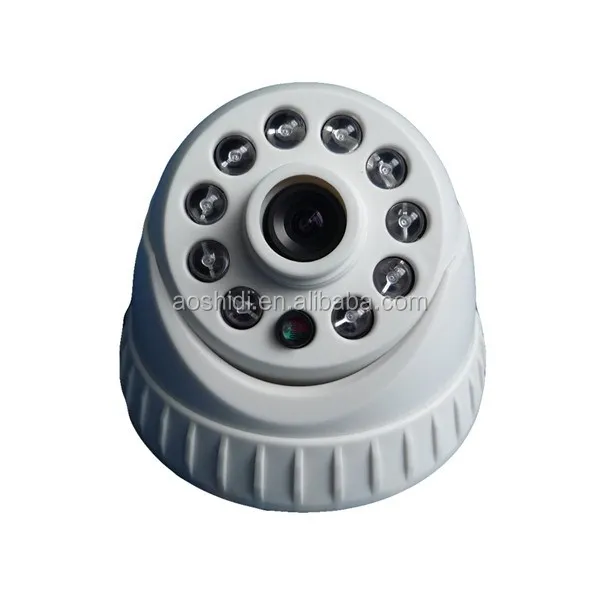

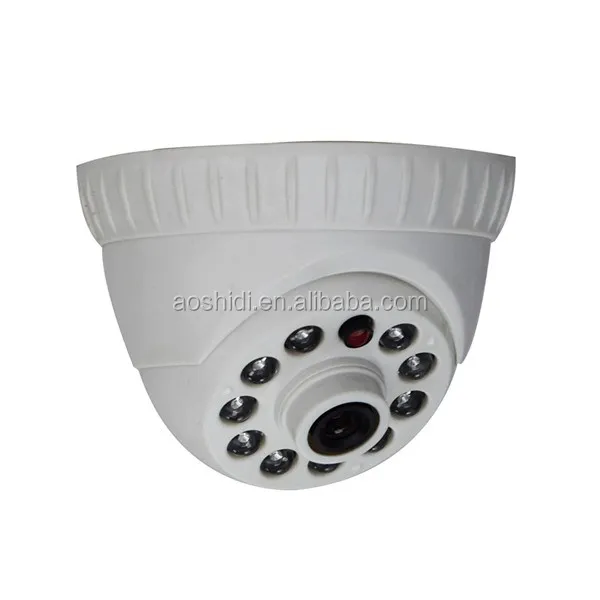

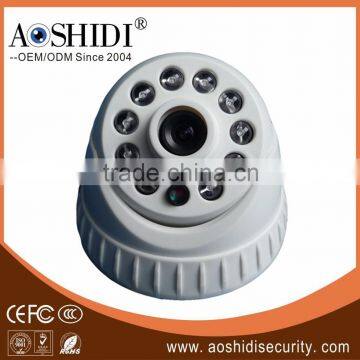

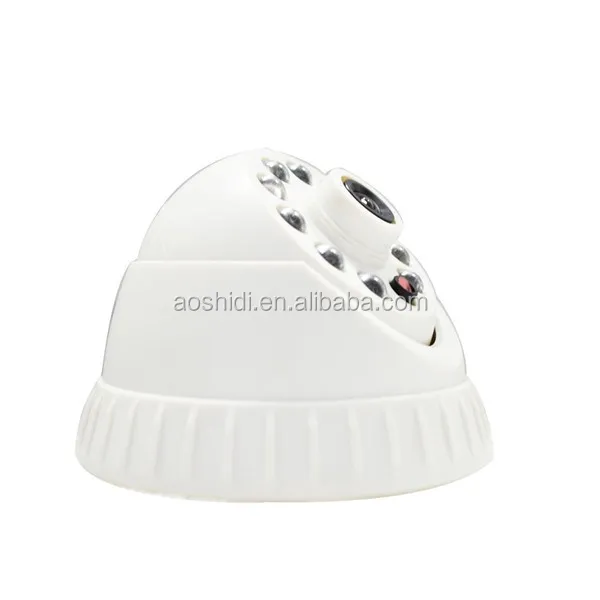

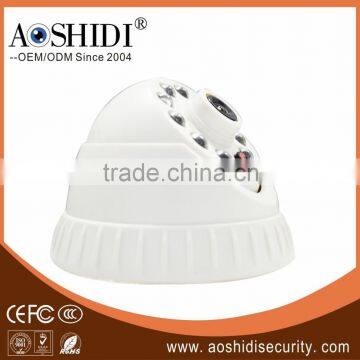

P1B72-AHD Waterproof AHD Camera Metal Top 10 720P 1MP Megapixel dome cctv camera

Features AHD Camera:

.1MP/1.3MP/2MP Resolution Optional
.Reliable Long-Distance Transmission (Up to 500 meters)
.Real time HD Transmission Technology
.Composite Signals In 1 Coaxial Cable For Simple Installation
.Anti-interference Capability
.Cost Advantage (More cheaper than CVI & SDI solution)
.Good Compatibility & Different Specifications All In One AHD DVR
.Built-in OSD menu button (Optional)
.2Megapixel/3Megapixel HD lens
.Material:Plastic

.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.
P1B72-AHD
P1B96-AHD
P1B18-AHD
Camera
Image Sensor
1/4 Omnivison OV9712
1/3 Aptina AR0130
1/2.8" Sony IMX322
DSP
NVP2431H
NVP2431H
NVP2431H
Image Resolution
720P/960H
960P/960H
1080P/960H
Effective Pixels
1.0MP, 1280x720
1.4MP, 1280x960
2MP, 1920*1080
Signal System
720P@AHD
960P@AHD
1080P@AHD
Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s
Sync System
Internal
Usable Illumination
0.01Lux
0.001Lux
0.001Lux
S/N Ratio
≥50dB
Scanning System
Progressive Scan
Video Output Mode
AHD/CVBS (960H) (BNC)
AHD/CVBS (960H) (BNC)
AHD/CVBS (960H) (BNC)
Lens
Focus Length
3.6mm Fixed Lens
Focus Control
Fixed
Pixels
2M Pixels
2M Pixels
3M Pixels
Auto Iris Support
NO
Night Vision
Infrared LED
12pcs IR LEDs
Infrared Distance
10M
IR Status
Under 10 Luxby CDS
IR Power On
CDS Auto Control
Camera Features
Day/Night
Auto (ICR) / Color / B&W
Auto (ICR) / Color / B&W
Auto (ICR) / Color / B&W
OSD Menu Language
EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR
EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR
EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR
White Balance
Auto/Manual
Auto/Manual
Auto/Manual
Gain Control
Auto
Auto
Auto
Noise Reduction
3D NR
3D NR
3D NR
Picture Adjustment
Yes
Yes
Yes
OSD Support
Yes
Yes
Yes
General
Weatherproof Housing
Plastic for Indoor using
Anti-cut Bracket
NO
Dual Voltage
NO
IR Cut Filter
YES
Heater
NO
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%, 500mA
Size
91*91*70 mm(Color Box 105*102*88mm)
Weight
0.19kg
