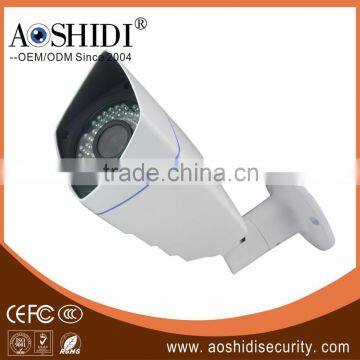

B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera

B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera thumbnail-1
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera thumbnail-2
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera thumbnail-3
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera thumbnail-4
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera thumbnail-5
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera photo-1
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera photo-2
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera photo-3
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera photo-4
B7IV72-AHD 1mp AHD Cameras, 2.8-12mm Verifocal Lens 50M IR CCTV Security Camera photo-5
US$ 6.6 - 23.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Aoshidi
Model Number:
B7IV72-AHD
Contact Supplier Request Quote Chat Now
Shenzhen Aoshidi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Aoshidi
Model Number B7IV72-AHD
Type Digital Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Product Description

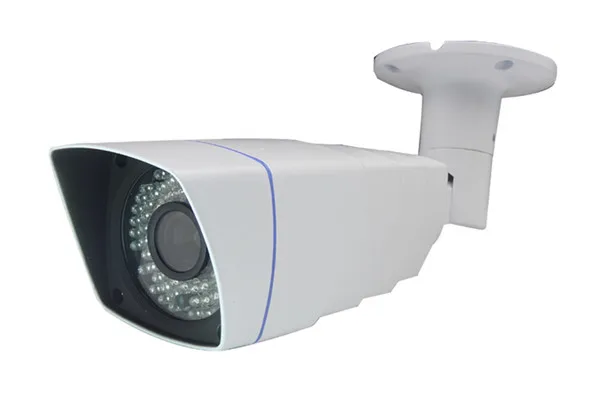

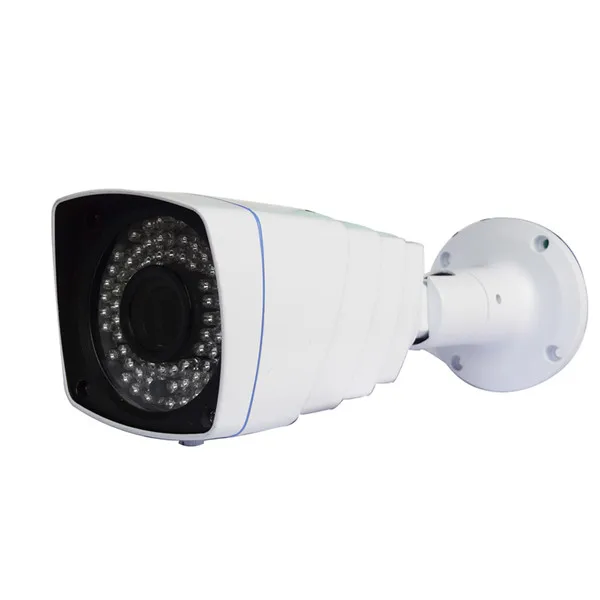

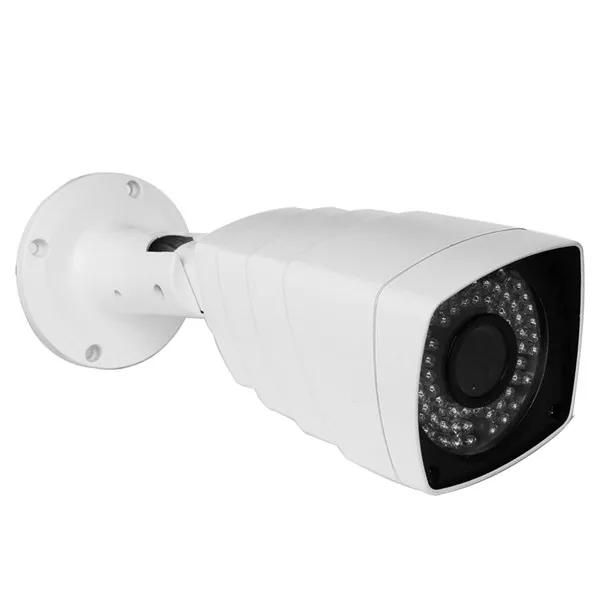

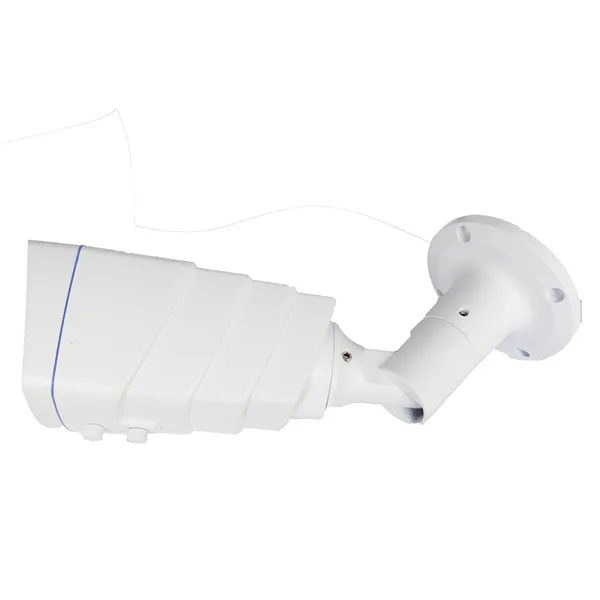

B7IV 1mp/1.3mp/2mp AHD cameras, 2.8-12mm Verifocal Lens 50M IR CCTV security camera

Features AHD Camera:

.1MP/1.3MP/2MP Resolution Optional
.Reliable Long-Distance Transmission (Up to 500 meters)
.Real time HD Transmission Technology
.Composite Signals In 1 Coaxial Cable For Simple Installation
.Anti-interference Capability
.Cost Advantage (More cheaper than CVI & SDI solution)
.Good Compatibility & Different Specifications All In One AHD DVR
.Built-in OSD menu button (Optional)
.2Megapixel/3Megapixel HD lens
.Material:Metal

.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.
B7IV72-AHD
B7IV96-AHD
B7IV18-AHD
Camera
Image Sensor
1/4 Omnivison OV9712
1/3 Aptina AR0130
1/2.8" Sony IMX322
DSP
NVP2431H
NVP2431H
NVP2431H
Image Resolution
720P/960H
960P/960H
1080P/960H
Effective Pixels
1.0MP, 1280x720
1.4MP, 1280x960
2MP, 1920*1080
Signal System
720P@AHD
960P@AHD
1080P@AHD
Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s
Sync System
Internal
Usable Illumination
0.01Lux
0.001Lux
0.001Lux
S/N Ratio
≥50dB
Scanning System
Progressive Scan
Video Output Mode
AHD/CVBS (960H) (BNC)
AHD/CVBS (960H) (BNC)
AHD/CVBS (960H) (BNC)
Lens
Focus Length
2.8mm-12mm Verifocal Lens
Focus Control
Manual Verifocal
Pixels
2M Pixels
2M Pixels
3M Pixels
Auto Iris Support
NO
Night Vision
Infrared LED
￠5X72PCS
Infrared Distance
50M
IR Status
Under 10 Luxby CDS
IR Power On
CDS Auto Control
Camera Features
Day/Night
Auto (ICR) / Color / B&W
Auto (ICR) / Color / B&W
Auto (ICR) / Color / B&W
OSD Menu Language
EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR
EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR
EN, CN, DE, FRA, IT, ES PL, RU, PT, NL, TR
White Balance
Auto/Manual
Auto/Manual
Auto/Manual
Gain Control
Auto
Auto
Auto
Noise Reduction
3D NR
3D NR
3D NR
Picture Adjustment
Yes
Yes
Yes
OSD Support
Yes
Yes
Yes
General
Weatherproof Housing
Weatherproof,P66
Anti-cut Bracket
YES
Dual Voltage
NO
IR Cut Filter
YES
Heater
NO
Operation Temperature
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
Power Source
DC12V±10%, 500mA
Size
270*86*86 mm(Color Box 310*185*165mm)
Weight
0.94kg
