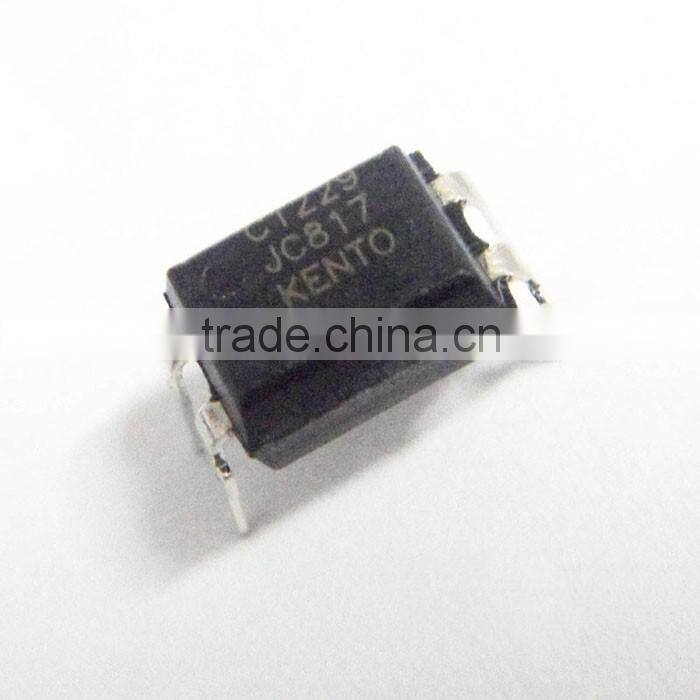

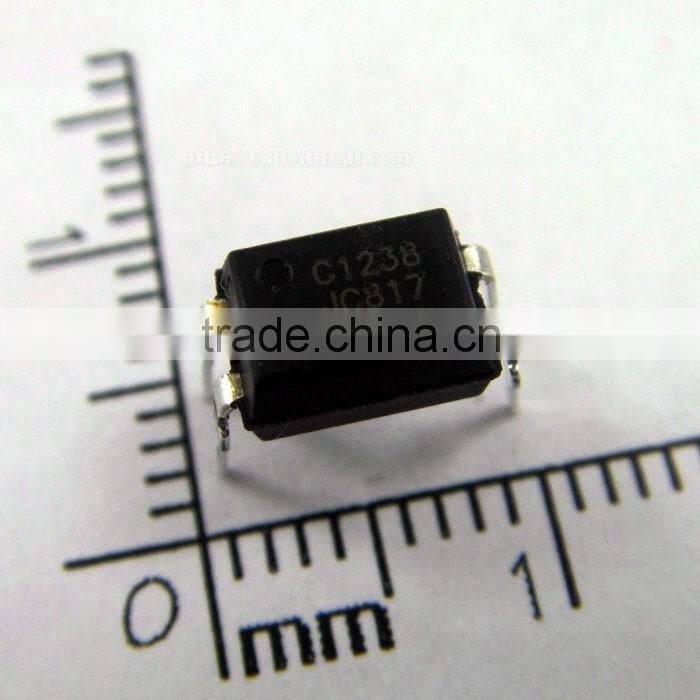

JC817 B/C Isolator photoelectric IC optical couple device
1.PICTURE
1.FEATURE
1.Battery conversion ratio:(1F=5mA.Vce=5V CTR:MIN:50%)
2.Vibo=5.000Vrms
3.Vce=2V.Ic=2mA.R=100 Ω Typical value 4μS
Parameter(Ta=25℃)
| Parameter | Symbol | Value | Unit | |
| Input Terminal | Forward current | If | 50 | mA |
| Reserse current | Vr | 6 | V | |
| consumed Power | P | 70 | mW | |
| Output Terminal |
Collector Emitter voltage collapse | Vceo | 70 | V |
| Emitter Collector voltage collapse | Vceo | 6 | ||
| Collectot current | Ic | 50 | mA | |
| Collector comsumption power | Pc | 150 | mW | |
| Total power dissipation | Psot | 200 | mW | |
| Isolation voltage | Viso | 5000 | Vrms | |
| Working temperature | Tepr | -30 to+100 | ℃ | |
| Starege temperature | Tstg | -55 to +125 | ||
| Welding temperature | Tsol | 260 | ||
