Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > GYFTA53 Direct Buried Optic Fiber Cable

GYFTA53 Direct Buried Optic Fiber Cable

Name: GYFTA53 Direct Buried Optic Fiber Cable
Brand: HTGD
SKU: 133805285
Availability: InStock

GYFTA53 Direct Buried Optic Fiber Cable thumbnail-1

GYFTA53 Direct Buried Optic Fiber Cable thumbnail-2

GYFTA53 Direct Buried Optic Fiber Cable photo-1

GYFTA53 Direct Buried Optic Fiber Cable photo-2

US$ 200 - 2,000 MOQ: 10 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HTGD

Model Number:

GYFTA53

Contact Supplier Request Quote Chat Now

Jiangsu Hengtong Optic-Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HTGD

Model Number GYFTA53

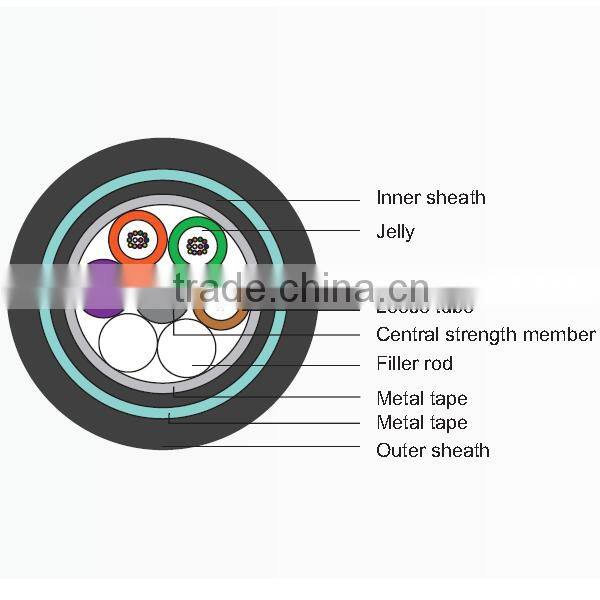

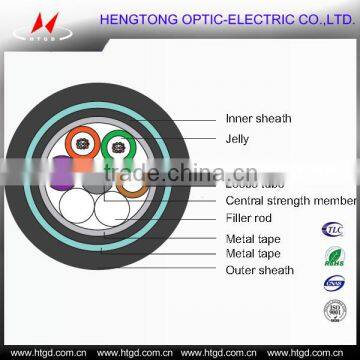

Cable details:

Fiber: Up to 288, Gel-filled
Fiber Types: Single-mode and Multimode
Cable Constructions: S-Z Stranded loose tube
Strength Member: FRP
Sheath Options: Double PE Sheath
Armored: Corrugated steel tape
Operating Temperature: -40℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA standards

Features and Applications:

◆Excellent mechanical and environmental performance ◆Good water resistance performance

◆Double sheath with double armor

◆Gel-filled Loose tube protect the fiber well

◆Armored with anti-moisture aluminum tape and steel tape

◆Applications：Duct and direct buried

Fiber Transmission Performance

Cabled Optical fiber （dB/km）	62.5μm (850nm/1300nm)	50μm (850nm/1300nm)	G.652 (1310nm / 550nm)	G.655 (1550nm / 625nm)
Max attenuation	3.5/1.5	3.5/1.5	0.36/0.22	0.22/0.26
Typical value	3.0/1.0	3.0/1.0	0.35/0.21	0.21/0.24

Technical Specification

Cable type	Maximum cores	Tensile Strength		Crush Resistance		Minimum bend radius
Cable type	Maximum cores	Short term	Long term	Short term	Long term	Dynamic	Static
GYFTA53	48	3000	1000	3000	1000	25D	12.5D
GYFTA53	72	3000	1000	3000	1000	25D	12.5D
GYFTA53	96	3000	1000	3000	1000	25D	12.5D
GYFTA53	120	3000	1000	3000	1000	25D	12.5D
GYFTA53	144	3000	1000	3000	1000	25D	12.5D
GYFTA53	288	3000	1000	3000	1000	25D	12.5D

Hengtong Optic-Electric Co.,Ltd. with the acreage of 1000 thousand square meters and 1200 staffs, is the core member of China Hengtong Group and state-level High-Tech enterprise of China. It is specialized in researching and producing fiber, optical fiber cable preform, optical device and optical input equipment. In 2015, the sales volume of optical fiber cable is 20 million core km, sharing about 18% of domestic market. The sales volume of products has been No 1 in China for several years. At present, Hengtong has holding 38 subsidiary companies and 2 listed companies. We built more than 35 international agencies in Europe area, Middle East &North Africa, Asia-Pacific and America area; Over 100 international sellers.
