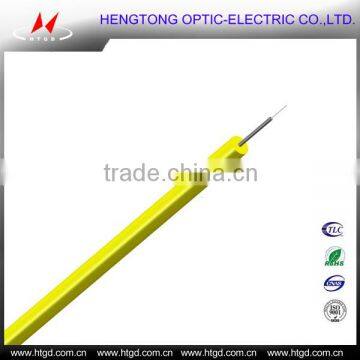

Tight Buffered Optical Fiber Cable

Tight Buffered Optical Fiber Cable thumbnail-1
Tight Buffered Optical Fiber Cable thumbnail-2
Tight Buffered Optical Fiber Cable photo-1
Tight Buffered Optical Fiber Cable photo-2
US$ 200 - 2,000 MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HTGD
Model Number:
Tight Buffered Fibe
Contact Supplier Request Quote Chat Now
Jiangsu Hengtong Optic-Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HTGD
Model Number Tight Buffered Fibe

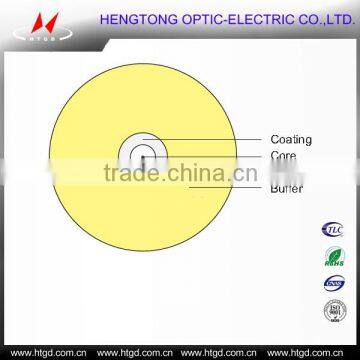

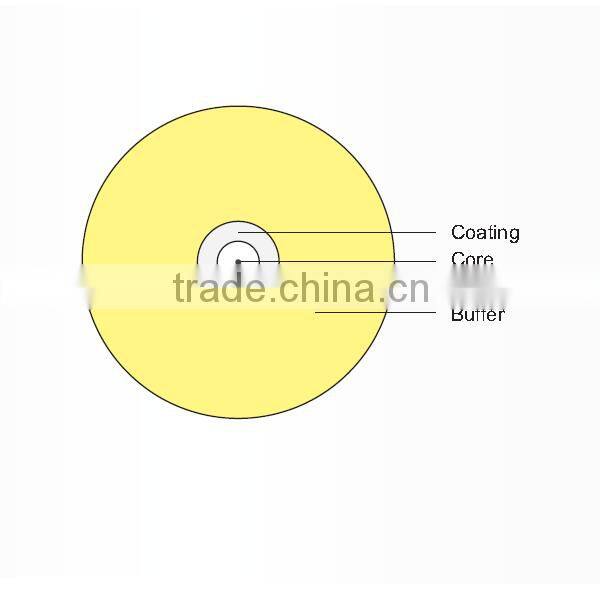

Cable details:

Fiber: Up to1, tight buffered fiber
Fiber Types: Single-mode and Multimode
Cable Type: tight buffered fiber
Strength Member: None
Sheath Options: LSZH, PVC, Nylon, etc
Operating Temperature: -40℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA standards

Features and Applications:

◆Excellent mechanical and environmental performance ◆The strippability characteristics of buffer meet the    relevant standards or customer requirements

◆Meet various requirements of market and clients

◆Applications：Tight buffered fiber is the basic element of various indoor cables ; tight buffered fibers can also be used in pigtails, optical connections of various optical active and passive device,instruments and terminal units



Fiber Transmission Performance

Cabled Optical fiber
（dB/km）
62.5μm
(850nm/1300nm)
50μm
(850nm/1300nm)
G.652
(1310nm / 550nm)
G.655
(1550nm / 625nm)
Max attenuation
3.5/1.5
3.5/1.5
0.36/0.22
0.22/0.26
Typical value
3.0/1.0
3.0/1.0
0.35/0.21
0.21/0.24

Technical Specification

Cable type
Maximum
cores
      Cable
Crush Resistance
Minimum bend radius
     dimension (mm)
Short term
Long term
Dynamic
Static
Tight buffer
1
           0.5
100
50
60D
30D
Tight buffer
1
           0.6
100
50
60D
30D
Tight buffer
1
           0.7
100
50
60D
30D
Tight buffer
1
           0.8
100
50
60D
30D
Tight buffer
1
          0.9
100
50
60D
30D



Hengtong Optic-Electric Co.,Ltd. with the acreage of 1000 thousand square meters and 1200 staffs, is the core member of China Hengtong Group and state-level High-Tech enterprise of China. It is specialized in researching and producing fiber, optical fiber cable preform, optical device and optical input equipment. In 2015, the sales volume of optical fiber cable is 20 million core km, sharing about 18% of domestic market. The sales volume of products has been No 1 in China for several years. At present, Hengtong has holding 38 subsidiary companies and 2 listed companies. We built more than 35 international agencies in Europe area, Middle East &North Africa, Asia-Pacific and America area; Over 100 international sellers.
