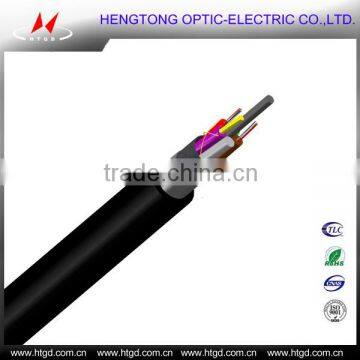

Optical and Electrical Hybrid Cable for Access Network Optic Fiber Cable(GDFTA Type)

Optical and Electrical Hybrid Cable for Access Network Optic Fiber Cable(GDFTA Type) thumbnail-1
Optical and Electrical Hybrid Cable for Access Network Optic Fiber Cable(GDFTA Type) thumbnail-2
Optical and Electrical Hybrid Cable for Access Network Optic Fiber Cable(GDFTA Type) photo-1
Optical and Electrical Hybrid Cable for Access Network Optic Fiber Cable(GDFTA Type) photo-2
US$ 200 - 2,000 MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HTGD
Model Number:
GDFTA
Contact Supplier Request Quote Chat Now
Jiangsu Hengtong Optic-Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HTGD
Model Number GDFTA

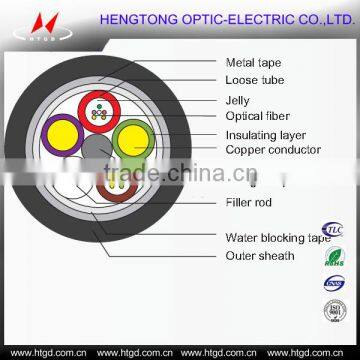

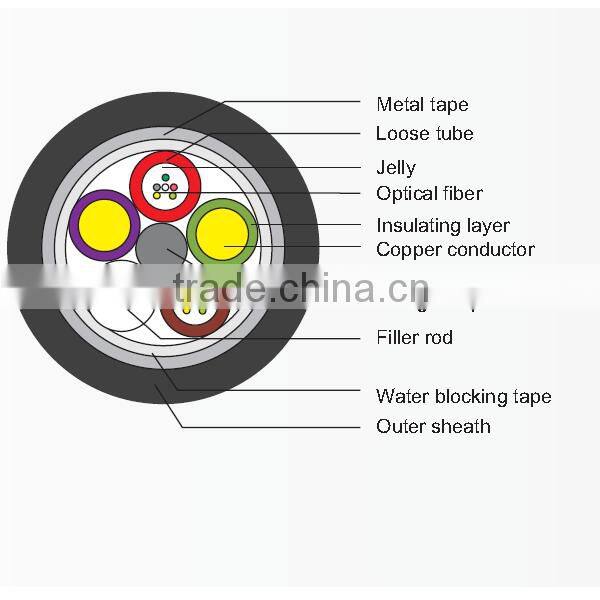

Cable details:

Fiber: Up to 48, Gel-filled
Fiber Types: Single-mode and Multimode
Cable Constructions: S-Z Stranded loose tube
Strength Member: FRP
Sheath Options: Single PE Sheath
Armored: Aluminum tape
Operating Temperature: -40℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA standards

Features and Applications:

◆Excellent mechanical and environmental performance ◆Excellent electrical performance

◆Combine with fiber cable and power cable together

◆Save construction cost

◆Armored with anti-moisture aluminum tape

◆Applications：Optical and electrical hybrid cable for access network



Fiber Transmission Performance

Cabled Optical fiber
（dB/km）
62.5μm
(850nm/1300nm)
50μm
(850nm/1300nm)
G.652
(1310nm / 550nm)
G.655
(1550nm / 625nm)
Max attenuation
3.5/1.5
3.5/1.5
0.36/0.22
0.22/0.26
Typical value
3.0/1.0
3.0/1.0
0.35/0.21
0.21/0.24

Technical Specification

Cable type
Copper type
Maximum
cores
Tensile Strength
Crush Resistance
Minimum bend radius
Short term
Long term
Short term
Long term
Dynamic
Static
GDFTA
2×1.5
36
1500
600
1000
300
20D
10D
GDFTA
2×2.5
36
1500
600
1000
300
20D
10D
GDFTA
2×3.5
36
1500
600
1000
300
20D
10D
GDFTA
2×4.0
36
1500
600
1000
300
20D
10D
GDFTA
2×6.0
24
1500
600
1000
300
20D
10D
GDFTA
2×10.0
24
1500
600
1000
300
20D
10D



Hengtong Optic-Electric Co.,Ltd. with the acreage of 1000 thousand square meters and 1200 staffs, is the core member of China Hengtong Group and state-level High-Tech enterprise of China. It is specialized in researching and producing fiber, optical fiber cable preform, optical device and optical input equipment. In 2015, the sales volume of optical fiber cable is 20 million core km, sharing about 18% of domestic market. The sales volume of products has been No 1 in China for several years. At present, Hengtong has holding 38 subsidiary companies and 2 listed companies. We built more than 35 international agencies in Europe area, Middle East &North Africa, Asia-Pacific and America area; Over 100 international sellers.
