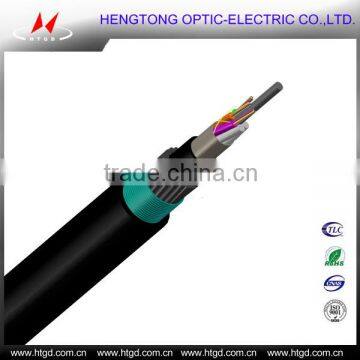

Shallow Water Optical Fiber Cable(GYTA33 Type)

Shallow Water Optical Fiber Cable(GYTA33 Type) thumbnail-1
Shallow Water Optical Fiber Cable(GYTA33 Type) thumbnail-2
Shallow Water Optical Fiber Cable(GYTA33 Type) photo-1
Shallow Water Optical Fiber Cable(GYTA33 Type) photo-2
US$ 200 - 2,000 MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HTGD
Model Number:
GYTA33
Contact Supplier Request Quote Chat Now
Jiangsu Hengtong Optic-Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HTGD
Model Number GYTA33

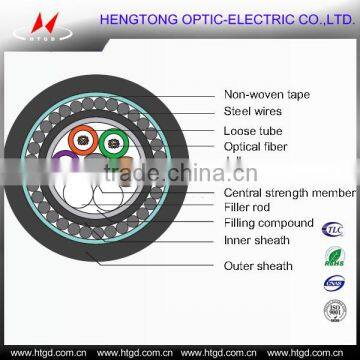

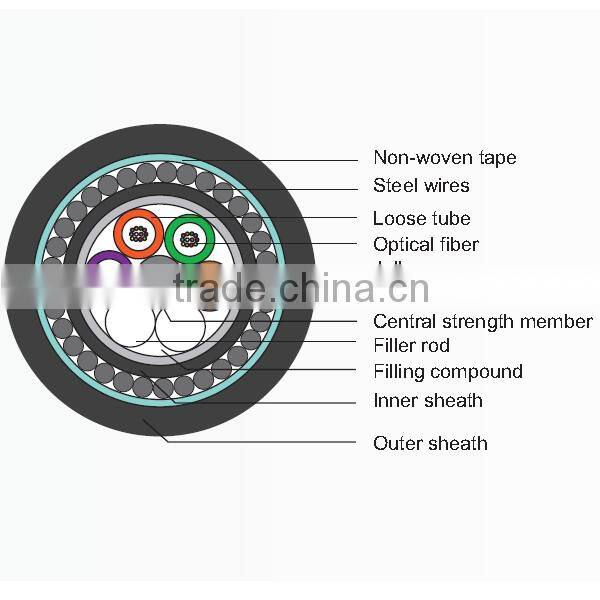

Cable details:

Fiber: Up to 288, Gel-filled
Fiber Types: Single-mode and Multimode
Cable Constructions: S-Z Stranded loose tube
Strength Member:Steel wire

Sheath Options: Double PE Sheath
Armored: Aluminum tape +steel wires

Operating Temperature: -40℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA

                          standards

Features and Applications:

◆Excellent mechanical and environmental performance

◆Double sheath with double armor

◆Gel-filled Loose tube protect the fiber well

◆Good performance for Crush and Tensile

 ◆Armored with steel wires and anti-moisture aluminum

     tape

 ◆Applications：Shallow water and direct buried



Fiber Transmission Performance

Cabled Optical fiber
（dB/km）
62.5μm
(850nm/1300nm)
50μm
(850nm/1300nm)
G.652
(1310nm / 550nm)
G.655
(1550nm / 625nm)
Max attenuation
3.5/1.5
3.5/1.5
0.36/0.22
0.22/0.26
Typical value
3.0/1.0
3.0/1.0
0.35/0.21
0.21/0.24

Technical Specification

Cable type
Maximum
cores
Tensile Strength
Crush Resistance
Minimum bend radius
Short term
Long term
Short term
Long term
Dynamic
Static
    GYTA33
        30
     10000
        4000
      5000
     3000
     25D
     12.5D
GYTA33
36
10000
4000
5000
3000
25D
12.5D
GYTA33
60
10000
4000
5000
3000
25D
12.5D
GYTA33
72
10000
4000
5000
3000
25D
12.5D
GYTA33
96
10000
4000
5000
3000
25D
12.5D
GYTA33
120
10000
4000
5000
3000
25D
12.5D
GYTA33
144
10000
4000
5000
3000
25D
12.5D
GYTA33
288
10000
4000
5000
3000
25D
12.5D



Hengtong Optic-Electric Co.,Ltd. with the acreage of 1000 thousand square meters and 1200 staffs, is the core member of China Hengtong Group and state-level High-Tech enterprise of China. It is specialized in researching and producing fiber, optical fiber cable preform, optical device and optical input equipment. In 2015, the sales volume of optical fiber cable is 20 million core km, sharing about 18% of domestic market. The sales volume of products has been No 1 in China for several years. At present, Hengtong has holding 38 subsidiary companies and 2 listed companies. We built more than 35 international agencies in Europe area, Middle East &North Africa, Asia-Pacific and America area; Over 100 international sellers.
