Home > Products > dust suppression machine > fogging systems mining dust suppression DS-50 For China Supplier
fogging systems mining dust suppression DS-50 For China Supplier
- 80 Set / Sets per Month
- shenzhen guangzhou shantou
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | FengHua, FengHua | Model Number: | DS-50, DS-50 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
!!!Safety First !!! Beware of Copy!!!
DS-50 Agricultural Pest Control Sprayer
1. Professional manufacturer with over 20 years' experience, high quality, best service and competitive price, offer multiple choices of product to meet different requirements.
2. Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed.
3. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust.
4. Flexible power: three-phase 380V and diesel generator power supply optional
5. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional.
6. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation.
7. Compare to tank car, water consumption save 70% ~80%, wide coverage area
Model | DS-40 | DS-50 | DS-60 | DS-80 |
Max Throw(M) no wind | 40 | 50 | 60 | 80 |
Coverage Area (M2) no wind | 4000~ | 6000~ | 8000~ | 17000~ |
Nozzles q-ty(pcs) | 12(1 ring) | 40(2 rings) | 50(2 rings) | 60(2 rings) |
Flow (Adjustable) (L/min) | 18~30 | 40~70 | 70~80 | 105~118 |
Total Power(kw) | 6.2 | 16.5 | 29.5 | 37 |
Power Supply | 3-Phase,380V/50HZ(or customized) | |||
Fog Droplet Size (Adjustable ) | 30-200µm | |||
Water Pressure (Mpa) | 1.0~3.0 | 1.0-3.5 | ||
Horizontal Rotation Angle | 320° | |||
Pitching Angle | -10°~80° | -10°~45° | ||
Control Method | Remote control | |||
Applicable Environment Temperature | -30℃~+45℃ | |||
Color | Green, Orange, Grey, Blue or customized |

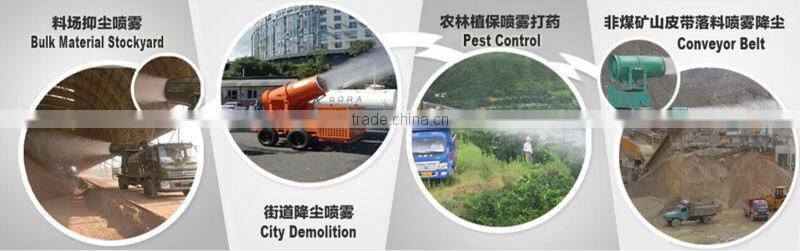

1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.
We can send engineers to support you to install large sprayer machine.
4.Help you do worker training
5.On-line support every day.
1. Outside package: standard export plywood case
2. Inner package: air bubble film and screwed to the pallet.
3. Different design need different shipping way:LCL or FCL.(one set DS-60 Sprayer fitted into general container, LCL)
