DRM-20 Grinder Master

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

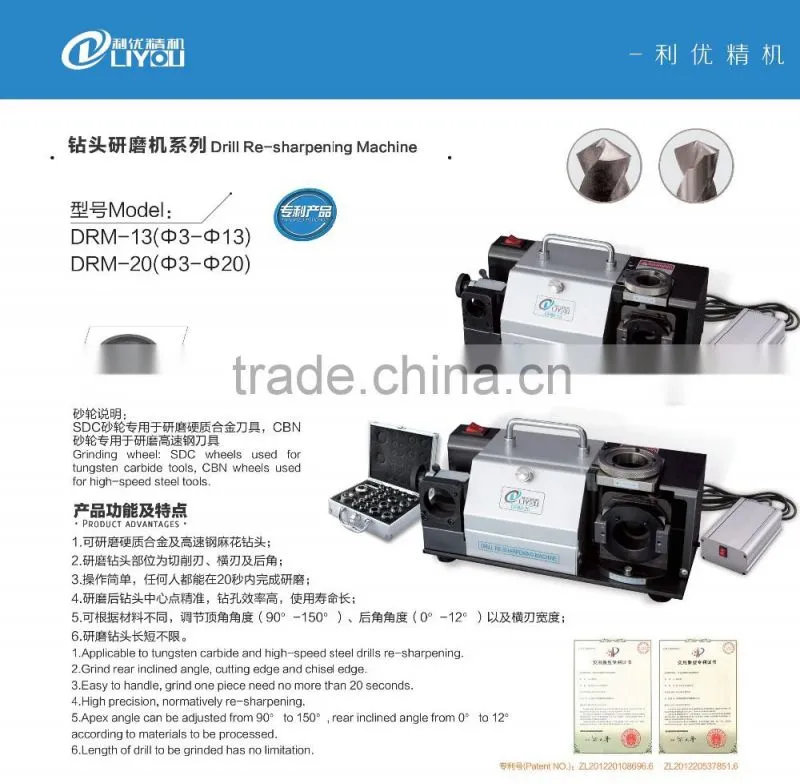

Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheels used for high-speed steel tools.

PRODUCT ADVANTAGES

1. Applicable to tungsten carbide and high-speed steel drill re-sharpening.

2. Grind rear inclined angle, cutting edge and chisel edge.

3. Easy to handle, grind one piece need no more than 20 seconds.

4. High precision, normatively re-sharpening.

5. Apex angle can be adjusted from 90°-150°, rear inclined angle from 0°-12° according to materials to be processed.

6. Length of drill to be grinded has no limitation.

Model	DRM-20
Applicable diameter of drill	fai 3-fai 20mm
Grinding scope of the apex angle	90°-150°
Grinding scope of the dorsal horn	0°-12°
Grinding wheel	D20CBN (SDC Choose)
Power	220V±10%AC
Motor output	250W
Rated speed	5000 rpm
Outer dimensions	345210210(mm)
Weight	19KG
Normal accessories	Collect fai3-fai20mm(18pcs), Hexagon wrench2pcs, Chuck group2 Group, controller*1pc
