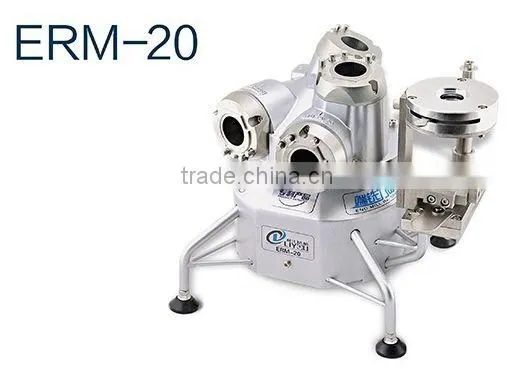

ERM-20 Sharpner Grinder

ERM-20 Sharpner Grinder thumbnail-1
ERM-20 Sharpner Grinder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Universal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Taizhou Liyou Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Universal
CNC or Not Normal
Max. Grinding Diameter fai20mm
Max. Grinding Length Undefined
Place of Origin Jiangsu, China
Brand Name LIYOU
Model Number ERM-20
Voltage 220V
Power(W) 600W
Dimension(L*W*H) 310*260*260mm
Weight 22kg
Certification CE Certification
After-sales Service Provided Engineers available to service machinery overseas

ERM-20 Sharpner Grinder



Patented products, high precision, high efficiency

Optimized structure design

High precision grinding wheel and grinding structure

Unique mill edge adjustment device

Precise holder fixture



Re-sharpening operation steps

1 Mill edge adjust

2 Rear inclined angle grinding

3 Blade edge grinding

4 Front inclined angle grinding



Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.



PRODUCT ADVANTAGES

1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.

2. Grind rear inclined angle, blade edge and front inclined angle.

3. For different end mill grinding, no need to change grinding wheel.

4. Easy to operate, grind one piece need no more than one minute.

5. High precision (0.01mm), normatively re-sharpening.

6. Mill cutting edge can be adjusted suitable for materials to be processed.



Product Parameter

Model

ERM-20

Applicable diameters

fai 4-fai 12mm

Applicable flutes

2 flutes, 3 flutes, 4 flutes

Axial angles

Secondary clearance angle 6°, Primary relief angle 20°

End gash angle 30°

Grinding wheel

E20SDC  (CBN Choose)

Power

220V±10%AC

Motor output

600W

Rated speed

6000 rpm

Outer dimensions

310*260*260

Weight

22KG

Normal accessories

Collect*8pcs,

2 flutes holder*8pcs,

3 flutes holder*8pcs,

4 flutes holder*8pcs,

case*1pc,

Hexagon wrench*3pcs,

Brush*1pc,

controller*1pc
