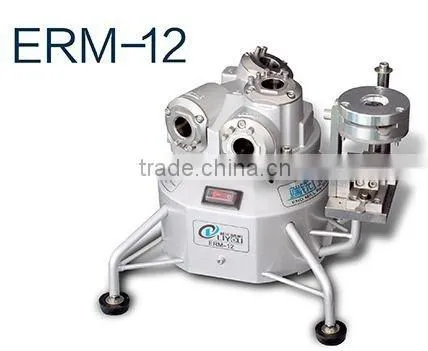

ERM-12 Hand Operated Grinder

ERM-12 Hand Operated Grinder thumbnail-1
ERM-12 Hand Operated Grinder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LIYOU
Model Number:
ERM-12
Contact Supplier Request Quote Chat Now
Taizhou Liyou Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LIYOU
Model Number ERM-12
Power Source Electricity
Type Angle Grinder
Variable Speed No
Rated Input Power 300W
Disc Diameter 100mm
Rated Voltage 220v ± 10%AC
No-Load Speed 6000rpm
Frequency 50/60Hz
Disc(Wheel) Type Grinding Disc
Dimensions 290 x 260 x 230(mm)
Weight 15KG

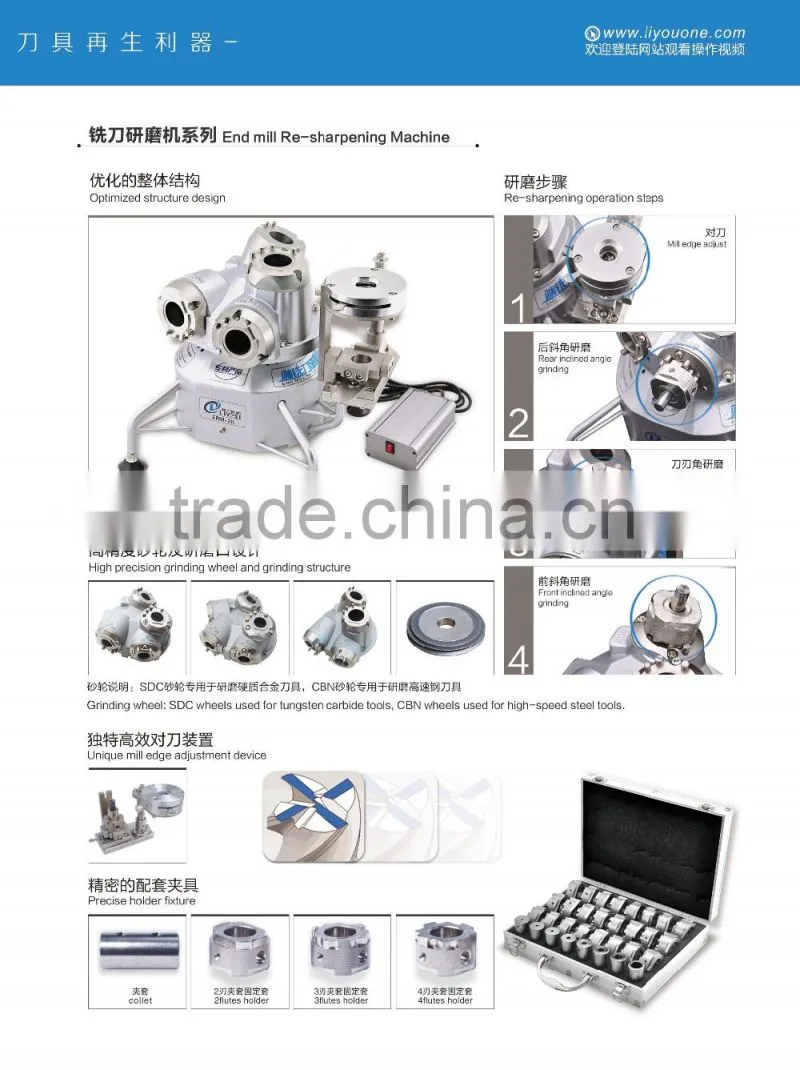

ERM-12 End Mill Re-sharpening Machine

ERM-12 Hand Operated Grinder



Patented products, high precision, high efficiency

Optimized structure design

High precision grinding wheel and grinding structure

Unique mill edge adjustment device

Precise holder fixture

Re-sharpening operation steps

1 Mill edge adjust

2 Rear inclined angle grinding

3 Blade edge grinding

4 Front inclined angle grinding



Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.

PRODUCT ADVANTAGES

1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.

2. Grind rear inclined angle, blade edge and front inclined angle.

3. For different end mill grinding, no need to change grinding wheel.

4. Easy to operate, grind one piece need no more than one minute.

5. High precision (0.01mm), normatively re-sharpening.

6. Mill cutting edge can be adjusted suitable for materials to be processed.



Product Parameter



Model

ERM-12

Applicable diameters

fai 2-fai 12mm

Applicable flutes

2 flutes, 3 flutes, 4 flutes

Axial angles

Secondary clearance angle 6°

Primary relief angle 20°

End gash angle 30°

Grinding wheel

E12SDC (CBN Choose)

Power

220V±10%AC

Motor output

300W

Rated speed

6000 rpm

Outer dimensions

290*260*230

Weight

15KG

Normal accessories

Collect*7pcs,

2 flutes holder*8pcs,

3 flutes holder*8pcs,

4 flutes holder*8pcs,

case*1pc,

Hexagon wrench*2pcs,

Brush*1pc,

controller*1pc
